FTTH Fiber Closure F2E-504A

Publisher: MJADOM

Author: Andy

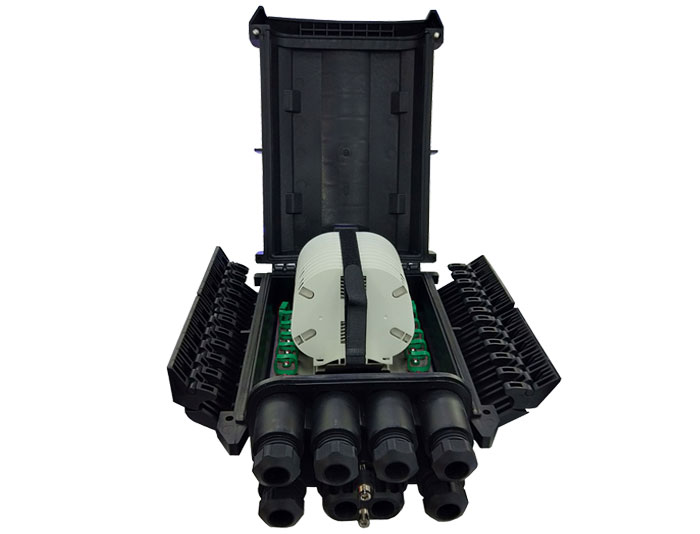

RGP-F2E-504A FTTH Drop Cable Type Fiber Optic Splice Closure provides a high-density wall-mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.


Horizontal Fiber Optic Splice Closure also called Fiber Optic Closure, It made of Modified P.P and has a new gasket seal making them ideal for a wide variety of applications.

RGP-F2E-504A FTTH Drop Cable Type Fiber Optic Splice Closure provides a high-density wall-mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.


It is normally installed in the way of wall mounting pole mounting. features with ruggedness, which is tested under harsh conditions and stands up to even the most severe conditions of moisture, vibration, and extreme temperatures.


The closures can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.

Closure Material: Modified P.P.

Sealing Structure: Mechanical Sealing

Closure Seal Material: Thermoplastic rubber.

180 degree access with buckled lock structure

Dis-mountable adaptor panel, Support mid-span termination.


Rotatable and dis-mountable splice tray for easy splicing.

Plug-and-play installation,easy for maintenance and expansion.

Integrated with flap-up splice cassette and cable management system.

Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.



Impact test:1K10. Pull Force:100N. Full Rugged design.

1*8 or 1*16 PLC splitter can be installed in each splice tray as option.

1 mid-span cable entrance(Φ10-17.5mm)for uncut cable and 6 branch ports for distribution cable(Φ10-17.5mm).

Protection level: IP68.

RoHS compliance.



Fiber Closure Wall mounting & pole mounting installation.


Configuration

Standard Accessories:

ItemNameUsageQuantity
1Fiber Optic Splice Closrue CoverProtecting fiber cable splices in whole1 pc
2Fiber Optic Splice Closure BottomProtecting fiber cable splices in whole1 pc
3Splice cassetteTo splice the fiber opticSame as capacity
4Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
5Nylon TieTo fix buffer tubes with fibers insideSame as capacity
6Grounding WireTo connect with grounding device1pc
7Abrasive ClothTo polish fiber optic cable1pc
8Labelling PaperTo label fibers1 set
9Buffer TubeTo protect fibers and be fixed on splice trays1pc
10Installation bolts and nutsTo fix splice cassette1 set


Shipping Infomation

SpecificationSizePcs/CartonWeight
Internal Carton Box390mmx250mmx140mm1 pc4.6 KGS
Outside Carton Box520mmx420mmx330mm4 pcs19 KGS


Order Information:

Model No.Spliced fiber storage capacitySize(mm)L x W x HCable portsMax. diameter of cable(mm)Applicable Cable DiameterAdaptors
RGP-F2E-504A

288 Splices

(12 x 24 Splices)

385mmx245 mm x130mm1 Uncut Port +6 Branch Ports

1 uncut of port can support Φ10~17.5 mm;

6 branch ports for Φ8~17.5 mm cable.

6 Round ports for Φ8~17.5 mm cable.

1 pc of 1x16 PLC Splitter

or 2 pcs of 1x8 PLC Splitter
