FTTH Fiber Optic Splice Enclosure F2E-502A

Publisher: MJADOM

Author: Andy

RGP-F2E-502A FTTH Drop Cable Type Fiber Optic Splice Closure provides a high-density wall-mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.


The body of the closure is made up of Modified P.P and the inner splice tray is 100% New ABS, It has a good high-pressure resistance and corrosion resistance.

RGP-F2E-502A FTTH Drop Cable Type Fiber Optic Splice Closure provides a high-density wall-mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.


It is normally installed in the way of wall mounting pole mounting. features with ruggedness, which is tested under harsh conditions and stands up to even the most severe conditions of moisture, vibration, and extreme temperatures.


The closures can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.

Closure Material: Modified P.P

Sealing Structure: Mechanical Sealing.

Closure Seal Material: Thermoplastic rubber.

180-degree access with buckled lock structure.

Dis-mountable adaptor panel, Support mid-span termination.


Rotatable and dis-mountable splice tray for easy splicing.

Plug-and-play installation, easy for maintenance and expansion.

Integrated with flap-up splice cassette and cable management system.

Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.



Impact test:1K10. Pull Force:100N. Full Rugged design.

1*8 or 1*16 PLC splitter can be installed in each splice tray as an option.

1 mid-span cable entrance(Φ10-17.5mm)for uncut cable,24 ports cable entrance for pre-terminated distribution cables.

Protection level: IP68.

RoHS compliance.



Wall mounting & Pole mounting installation.

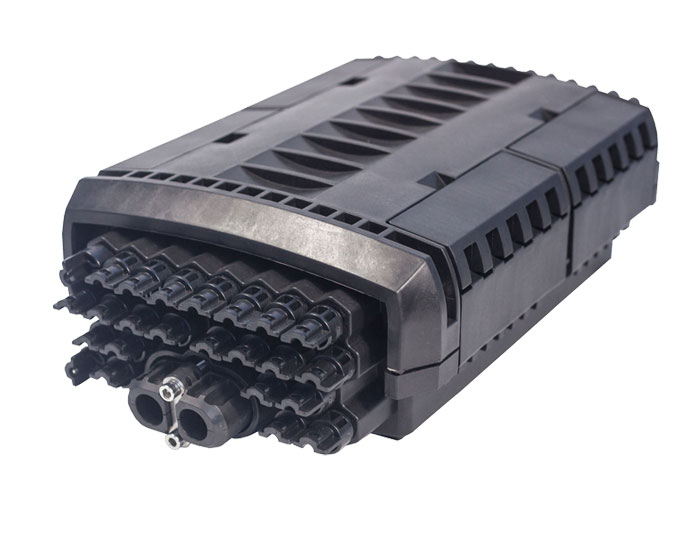

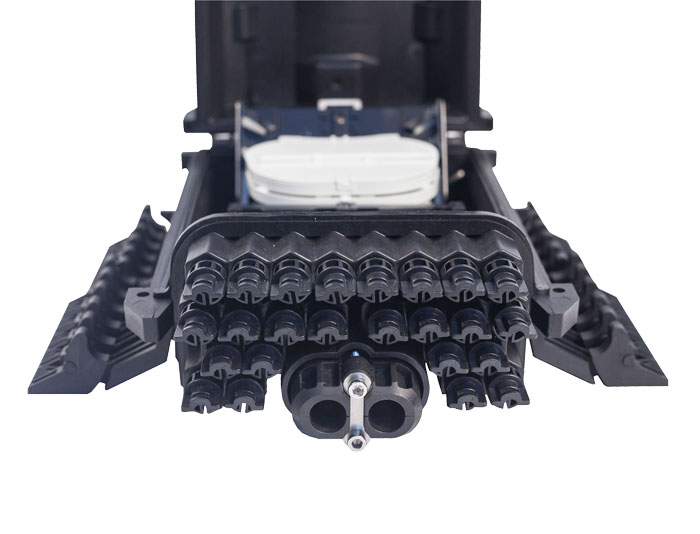

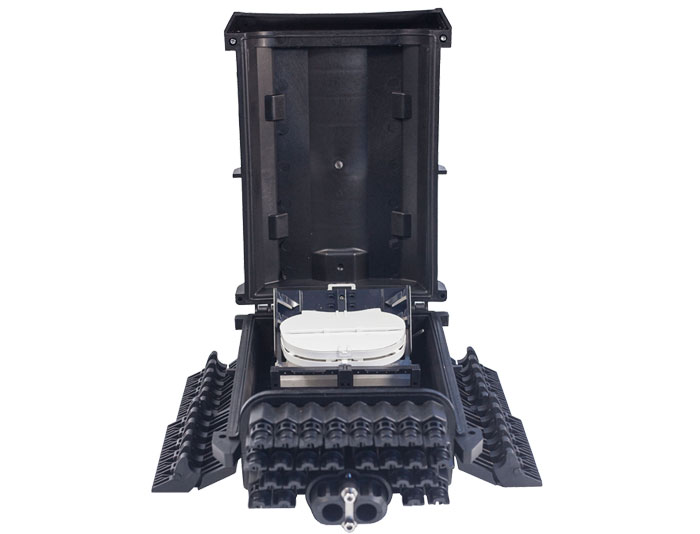

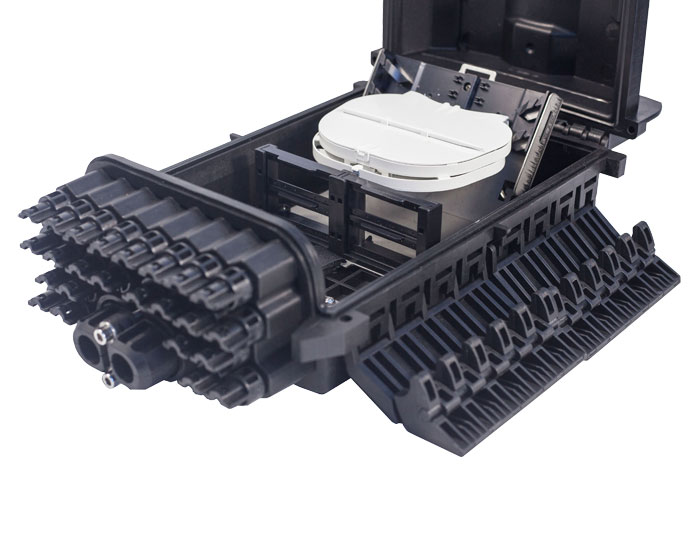

FTTH Fiber optic splice enclosure F2E-502A.

Configuration

Standard Accessories:

ItemNameUsageQuantity
1Fiber Optic Splice Closrue CoverProtecting fiber cable splices in whole1 pc
2Fiber Optic Splice Closure BottomProtecting fiber cable splices in whole1 pc
3Splice cassetteTo splice the fiber opticSame as capacity
4Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
5Nylon TieTo fix buffer tubes with fibers insideSame as capacity
6Grounding WireTo connect with grounding device1pc
7Abrasive ClothTo polish fiber optic cable1pc
8Labelling PaperTo label fibers1 set
9Buffer TubeTo protect fibers and be fixed on splice trays1pc
10Installation bolts and nutsTo fix splice cassette1 set


Shipping Infomation

SpecificationSizePcs/CartonWeight
Internal Carton Box390mmx250mmx140mm1 pc4.2 KGS
Outside Carton Box520mmx420mmx330mm4 pcs18 KGS


Order Information:

Model No.Spliced fiber storage capacity

Size(mm)

L xW xH

Cable portsMax. diameter of cable(mm)Applicable Cable DiameterAdaptors
RGP-F2E-502A

96 Splices

(4 x24 Splices)

385mm x245 mm  x135mm1 Uncut Port +24 Drop Cable Outlet Ports

1 uncut of port

can support Φ10~17.5 mm;

2x3mm FTTH Drop Cable, 2x5mm Figure 8

FTTH Drop Cable

1 pc of 1x16 PLC Splitter

or 2 pcs of 1x8 PLC Splitter
