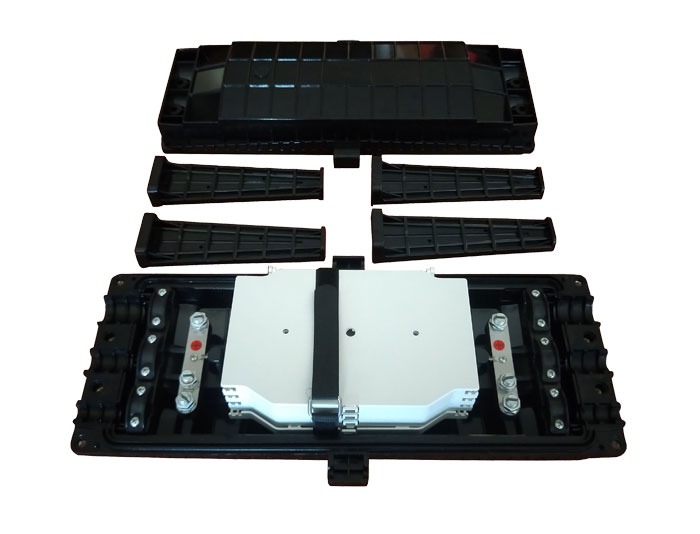

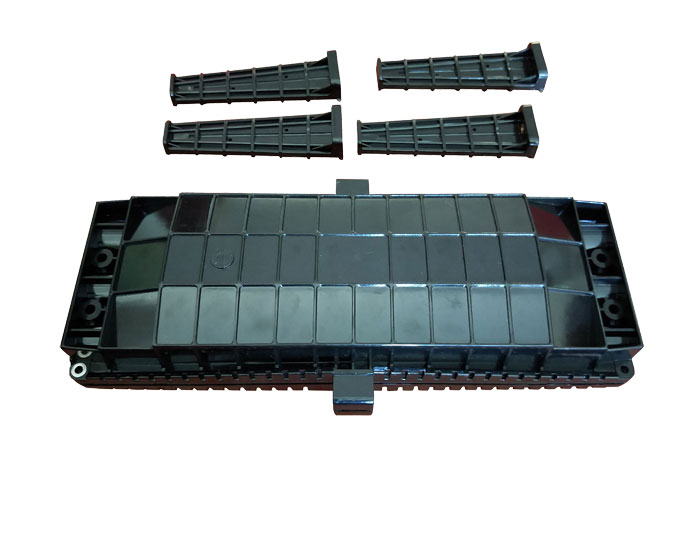

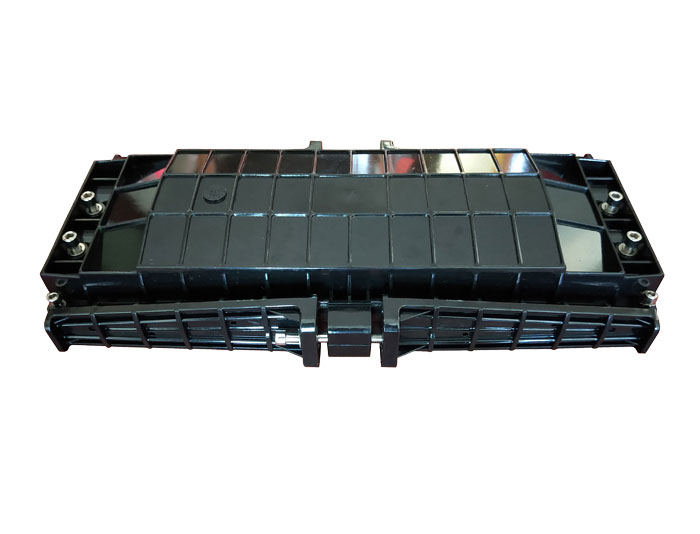

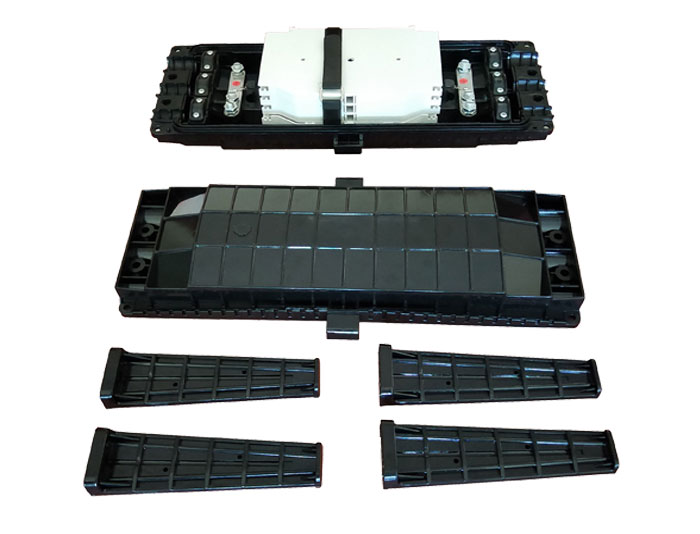

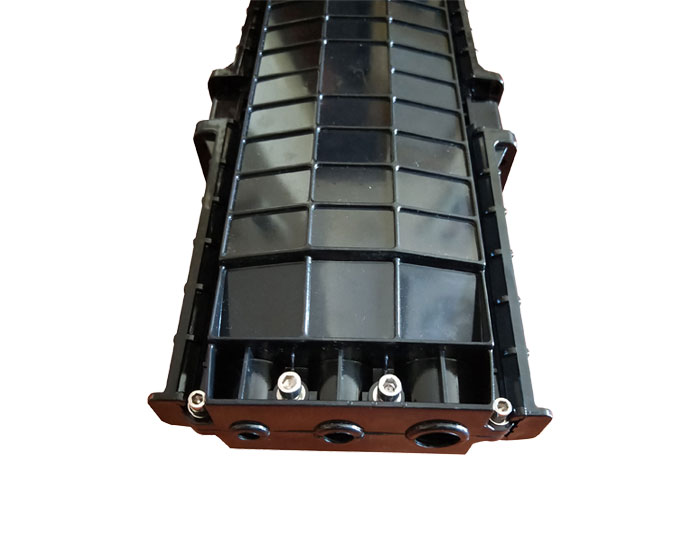

Inline Mechanical Gel Sealing Fiber Optic Splice Closure (RGP-TSB-102B), It is made of plastic molded parts and gasket sealing materials. It's a Mechanical Gel Sealing type FOSC and adopts 6 Round Port design, 3 Inlet & 3 Outlet. Closing of the closure is simply done by the sliding latching mechanism. The latching system provides short installation time and easy re-entry. There is no need for special tooling for closing and opening the closure.
The Closure is suitable for applications up to 48 single fibers, which can cover most of the applications in the fiber distribution networks like Fiber To The Home / Fiber To The Curb (FTTH/FTTC) Under-ground, aerial, pedestal or direct buried applications are possible with the closure.
Closure Material : MPP-Modified P.P.
Closure Seal Material : Vualcanized silicone rubber.
May be used for cut, uncut and taut sheath applications.
May be used for all fiber optic cable.
Sheath retention & central strength member fasten system included.
Ribbed closure construction and lightweight plastic provides strength and resistance to chemical and U.V attack.
Sliding latch mechanism.
Compatible with most common cable types: e.g. Loose tube, central core, slotted core, ribbon fiber.
It applies to multiple environments ( Underground, Aerial, Pole, Bracket, Pipe-lined, Manhole.).
Protection class: IP67.
RoHS compliance.
Reusable & Re-entry Test.
Aerial mounting.
Under-ground.
Pedestal or direct buried applications.
