Inline Outdoor Fiber Optic Enclosure-FTTH Netwok-FTTH Cabling TSB-103C

Publisher: MJADOM

Author: Andy

MJADOM offers kinds of the FTTH Network, the most important product is the Fiber Optic Splice Closure called Fiber Enclosure (Aerial / Pole Mount / Underground, Heat Shrink Sealing / Mechanical Sealing, 24-576 Fibers, LC/SC adapter, Protective Level IP68, 1x8/1x16 PLC Splitter).


The Body of the closure is made of Modified P.P and the inner splice tray is 100% New ABS, It has a good high-pressure resistance and corrosion resistance, the protective level is IP68.

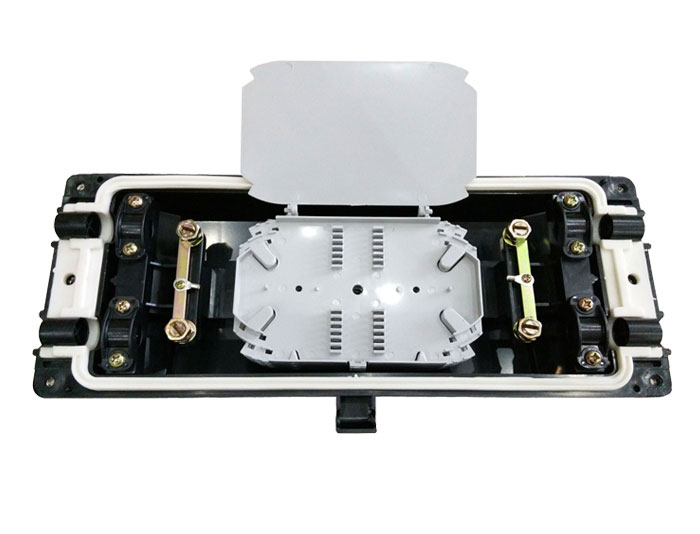

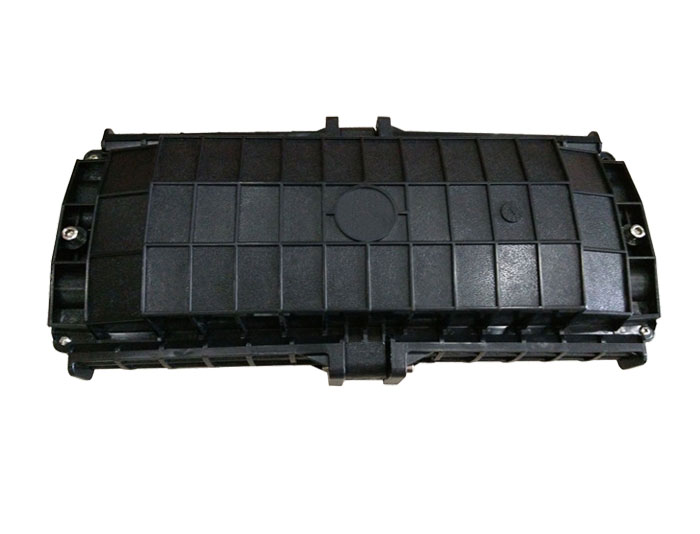

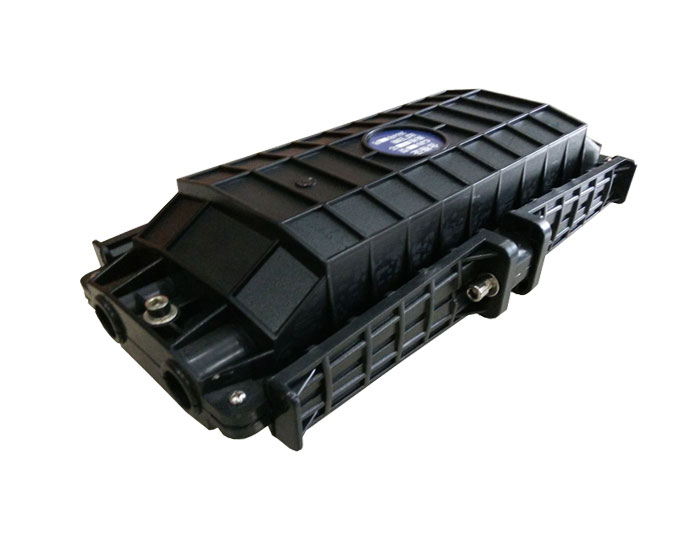

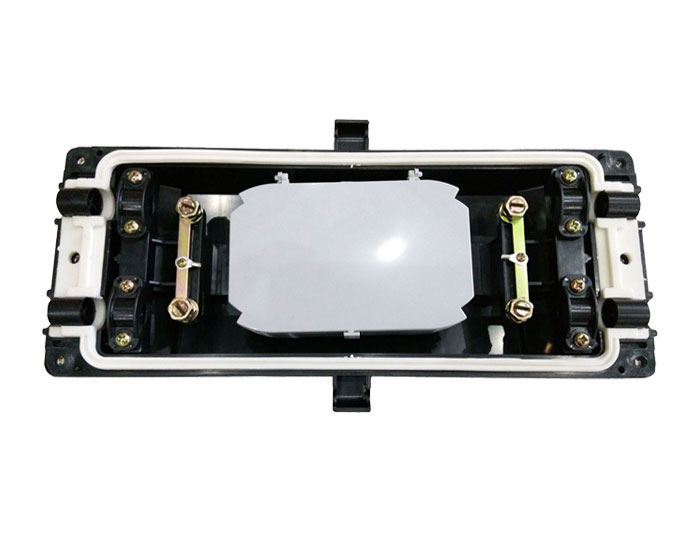

Inline Fiber Optic Splice Closure called Fiber Enclosure is the most important part of the FTTH Network (RGP-TSB-103C), It made of plastic molded parts and gasket sealing materials. It's a Mechanical Gel Sealing type FOSC and adopts 6 Round Port design, 3 Inlet & 3 Outlet; Closing of the closure is simply done by the sliding latching mechanism. The latching system provides short installation time and easy re-entry. There is no need for special tooling for closing and opening the closure.

The Closure is suitable for the applications up to 12 single fibers, which can cover most of the applications in the fiber distribution networks like Fiber To The Home / Fiber To The Curb (FTTH/FTTC) Under-ground, aerial, pedestal or direct buried applications are possible with the closure.

Closure Material : MPP-Modified P.P.

Closure Seal Material : Vualcanized silicone rubber.

May be used for cut, uncut and taut sheath applications.

May be used for all fiber optic cable.

Sheath retention & central strength member fasten system included.

Ribbed closure construction and lightweight plastic provides strength and resistance to chemical and U.V attack.



Sliding latch mechanism.

Compatible with most common cable types: e.g. Loose tube, central core, slotted core, ribbon fiber.

It applies to multiple environments ( Underground, Aerial, Pole, Bracket, Pipe-lined, Manhole.).

Protection class: IP68.

RoHS compliance.

Reusable & Re-entry Test.


Aerial mounting.

Under-ground.

Pedestal or direct buried applications.

Configuration

Standard Accessories:

ItemNameUsageQuantity
1Splice cassetteTo splice the fiber opticSame as capacity
2Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
3Nylon TieTo fix buffer tubes with fibers insideSame as capacity
4Grounding WireTo connect with grounding device1pc
5Abrasive ClothTo polish fiber optic cable1pc
6Labelling PaperTo label fibers1 set
7Buffer TubeTo protect fibers and be fixed on splice trays1pc
8Installation bolts and nutsTo fix splice cassette1 set


Shipping Infomation

SpecificationSizePcs/CartonWeight
Internal Carton Box380mmx180mmx105mm1 pc2.9 KGS
Outside Carton Box390mmx370mmx425mm8 pcs23.5 KGS


Configuration:

Model No.Splice TraySpliced fiber storage capacitySize(mm)LxWxHCable portsMax. diameter of cable(mm)
RGP-TSB-103C

Tray 301D1

Capacity : 12 splices

72 Splices

(6x12 Splices)

370mmx170mmx95mm4 round ports4 port, each port for 1 cable with max 22 mm

Related Products

96 Core FTTH Fiber Optic Nap Box F2E-501AT
96 Core FTTH Fiber Optic Nap Box F2E-501AT

RGP-F2E-501AT 96 Core FTTH Drop Cable Type Fiber Optic Nap Box provides a high-density wall-mounted & pole-mounted solution for the next generation networks.

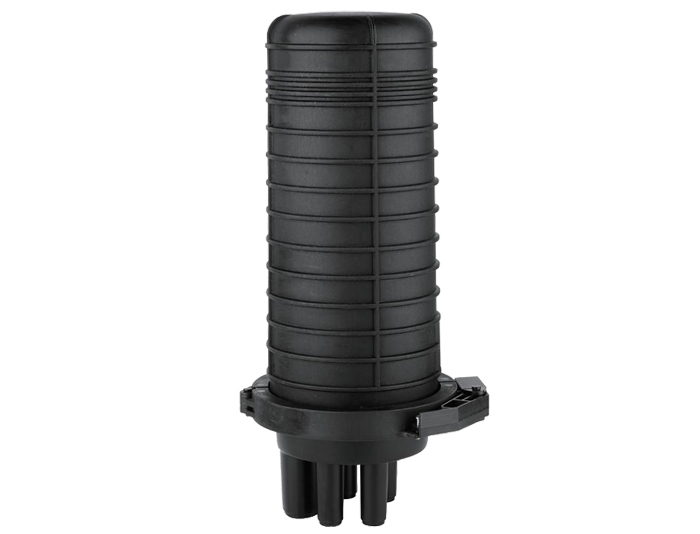

576 Core Mechanical Dome Fiber Optic Closure TSB-302B
