48F, 4Trays, Heat Shrink Sealing Dome Closure TSB-203A

Publisher: MJADOM

Author: Andy

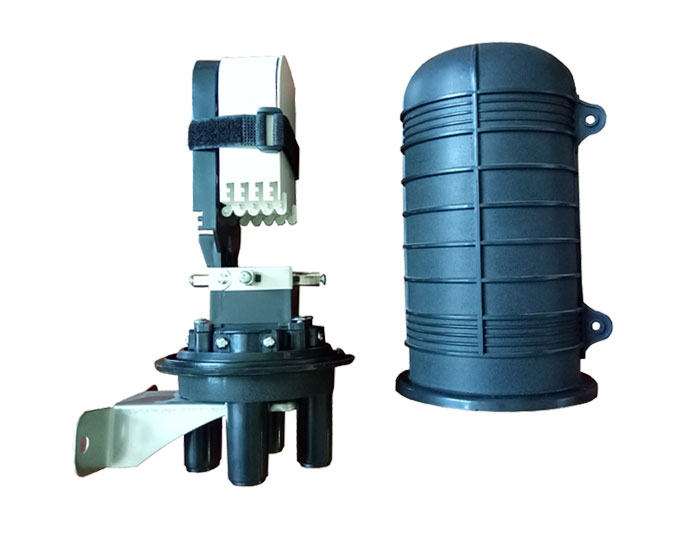

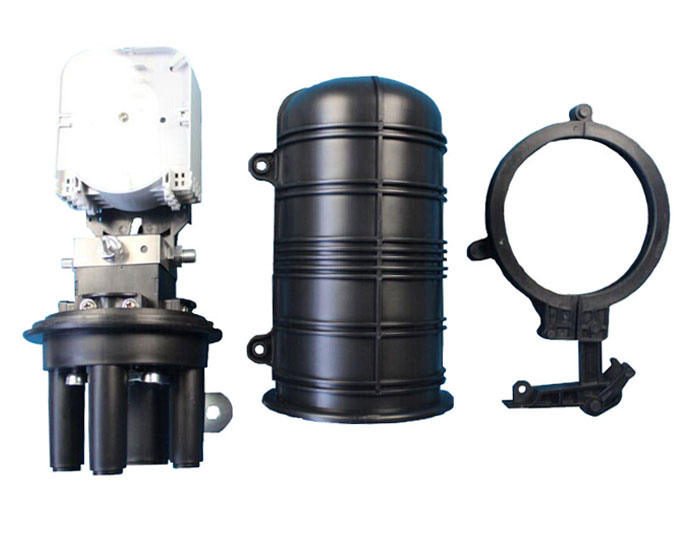

RGP-TSB-203A Dome Fiber Optic Splice Closure called Fiber Optic Closure have one oval port for express cable applications and three round cable ports, the closure features an O-ring sealing system along with an innovative latching/locking mechanism. This combination is designed to allow simple, watertight closure. Utilizes heat shrinkable technology for cable sealing which helps provide a watertight seal.


MJADOM offers Fiber Optic Splice Closure (Aerial / Pole Mount / Underground, Heat Shrink Sealing / Mechanical Sealing, 24-576 Fibers, LC/SC adapter, Protective Level IP68, 1x8/1x16 PLC Splitter).

RGP-TSB-203A Dome Fiber Optic Splice Closure have one oval port for express cable applications and three round cable ports, the closure features an O-ring sealing system along with an innovative latching/locking mechanism. This combination is designed to allow simple, watertight closure. Utilizes heat shrinkable technology for cable sealing which helps provide a watertight seal.

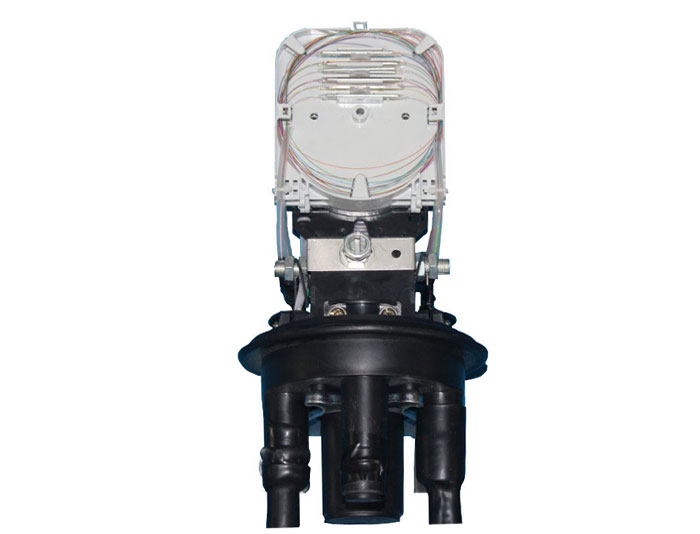

The closure is equipped with a built-in fiber management system which provides a separate area for storing, routing, protecting, and "expressing" buffer tubes, singles and ribbon fibers.


An optional built-in air valve is designed to allow flash testing.

Closure Material : Modified P.P

Closure Seal Material : Innovative latching / locking O-ring closure sealing system.

May be used for all fiber optic cable.

May be used for cut, uncut and taut sheath applications.

Sheath retention & central strength member fasten system included.

Built-in integral multipurpose fiber storage system.



Heat shrinkable cable seal.

Hinged tray design, Splice trays can be easily increased and reduced according to capacity.

Modular splice holder design.

Installation and reentry with a minimum of tools.

Closure can be flash tested.

Protection class: IP68.

RoHS compliance.


Aerial mounting.

Pole Mounting.

Buried, Under-ground.

Vault, Handhole & Manhole.

Configuration

Standard Accessories:

ItemNameUsageQuantity
1FOSC CoverProtecting fiber cable splices in whole1 pc
2FOSC BaseFixing internal and external structure1 pc
3Splice cassetteFixing heat shrink protective sleeve and holding fibersMax. 4 trays (Configuration as per capacity)
4Fiber Holding TrayHolding fibers with protective coatN/A
5Pressure Testing ValveAfter inject air, it is used for  pressure testing and sealing testingConfiguration as per requirement.
6Earthing Deriving DeviceDeriving metallic parts of fiber cables in FOSC for earthing connectionConfiguration as per requirement.
7Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
8Nylon TieTo fix buffer tubes with fibers insideSame as capacity
9Grounding WireTo connect with grounding device1pc
10Abrasive ClothTo polish fiber optic cable1pc
11Labelling PaperTo label fibers1 pc
12Buffer TubeTo protect fibers and be fixed on splice trays1 pc
13Installation bolts and nutsTo fix splice cassette1 pc


Optional Accessories:

Pole Mounting Kits, Earthing Deriving Device, Air Valve.


Shipping Infomation

SpecificationSizePcs/CartonWeight
Internal Carton Box295mmx185mmx185mm1 pc2.0 KGS
Outside Carton Box820mmx430mmx330mm10 pcs20.0 KGS


Order Information:

Model No.Splice TraySpliced fiber storage capacitySize(mm)Height x Diameter
Cable portsMax. diameter of cable(mm)
RGP-TSB-203A

Tray 109A

Capacity: 12 splices

48 Splices

(4x12 Splices)

288mm x 178mm1 Oval Port+3 Round Ports

1 oval port for 1 looped cable with max 13 mm ;

3 round ports each port for 1 cable with max 12mm

Related Products

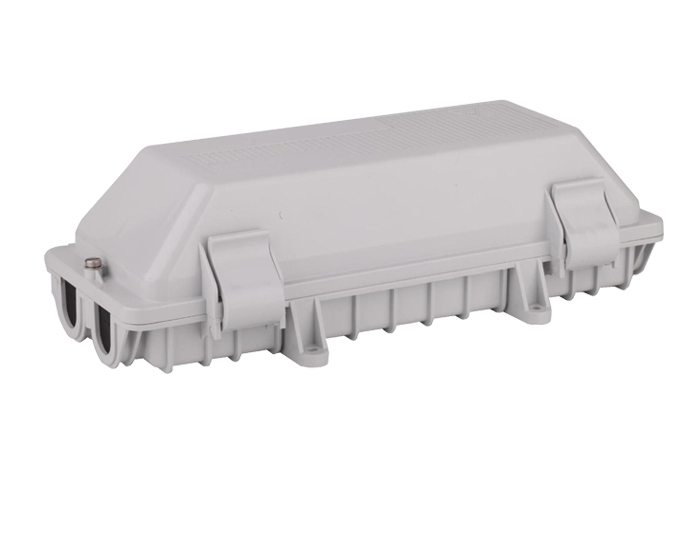

96 Core 4 Trays Mechanical Sealing Fiber Splice Enclosure CSC-1023A
96 Core 4 Trays Mechanical Sealing Fiber Splice Enclosure CSC-1023A

Inline Mechanical Gel Sealing Fiber Optic Splice Closure (RGP-CSC-1023A), It is made of plastic molded parts and gasket sealing materials.

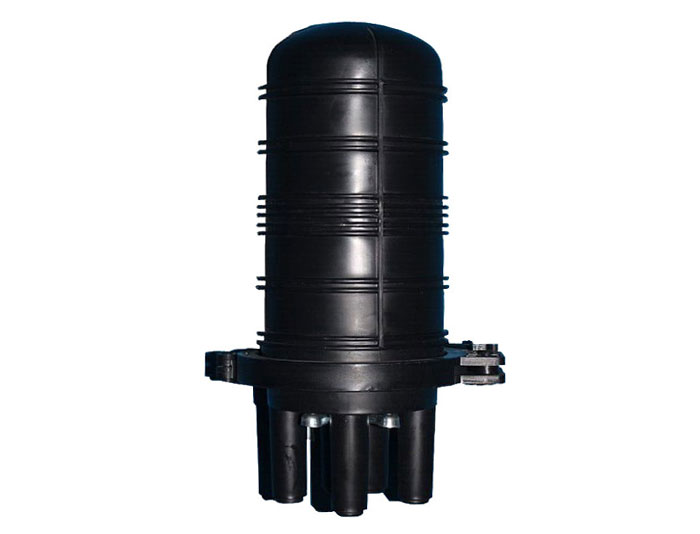

Dome Fiber Optic Splice Closure TSB-209G
Dome Fiber Optic Splice Closure TSB-209G

RGP-TSB-209G Dome Fiber Optic Splice Closure has one oval port for express cable applications and six round cable ports, the closure features an O-ring sealing system along with an innovative latching/locking mechanism.

Dome Heat Shrink Sealing Fiber Closure TSB-301A
Dome Heat Shrink Sealing Fiber Closure TSB-301A

RGP-TSB-301A Dome Fiber Optic Splice Closure has one oval port for express cable applications and six round cable ports, the closure features an O-ring sealing system along with an innovative latching/locking mechanism.

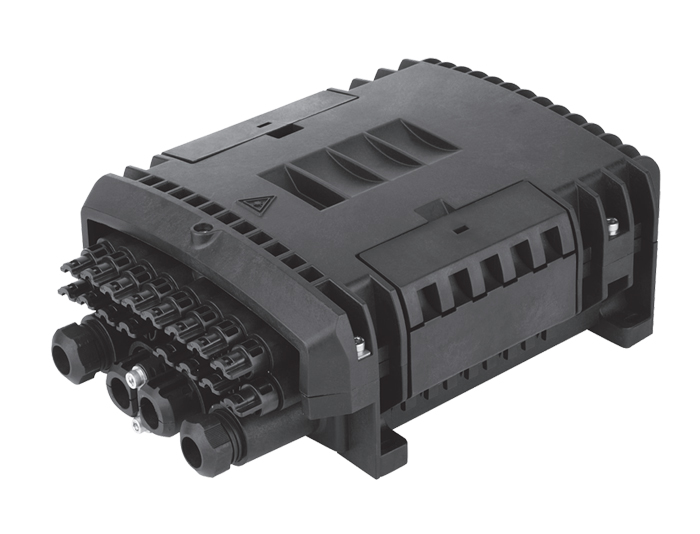

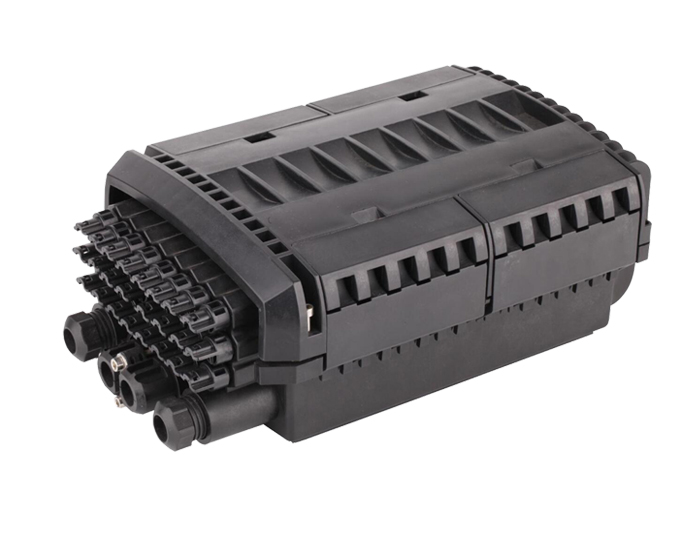

144 Core, 6 Trays, Mechanical Sealing FTTH Fiber Optic Closure TSB-207-32SC
