144 Core, 6 Trays, Heat Shrink Sealing Dome Fiber Optic Splice Closure TSB-201B

Publisher: MJADOM

Author: Andy

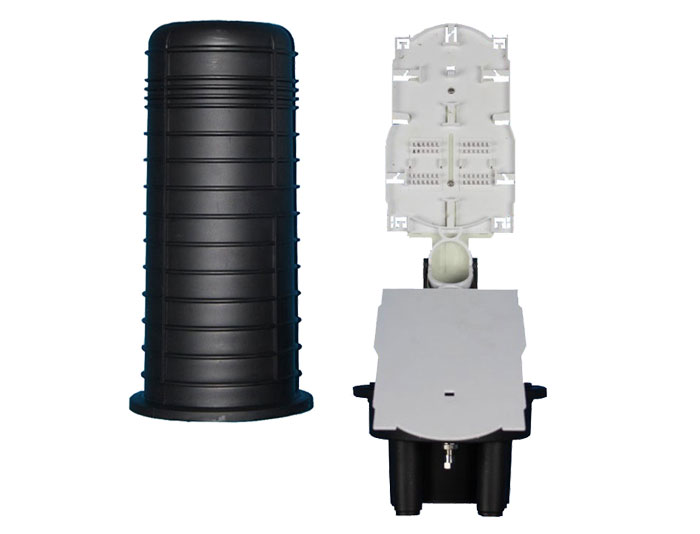

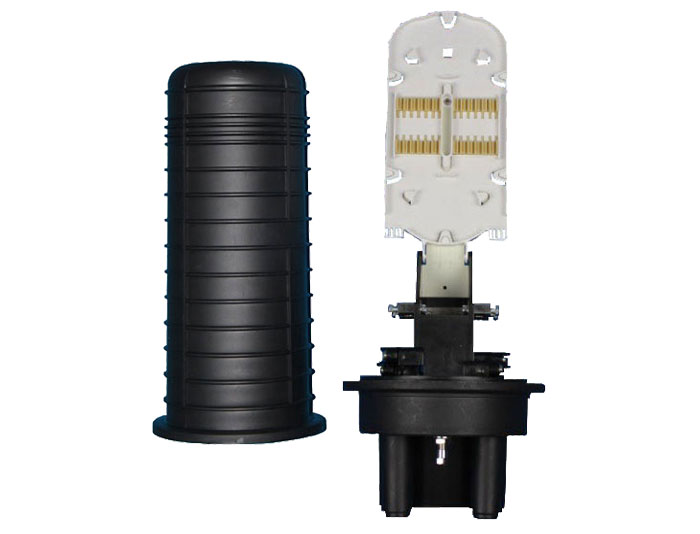

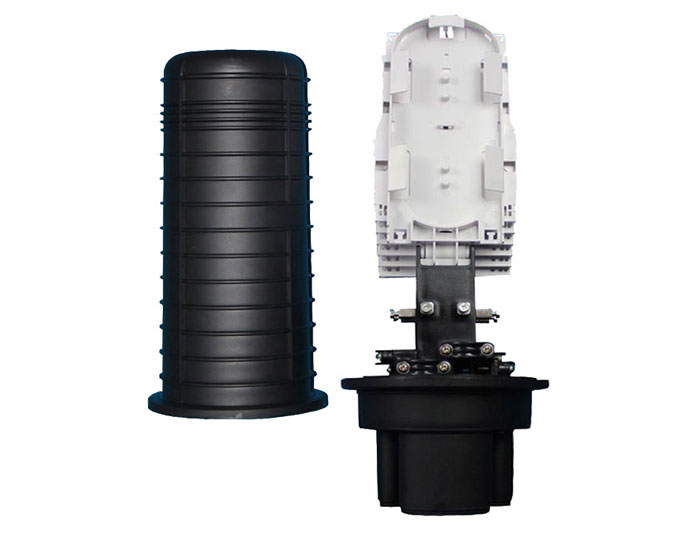

RGP-TSB-201B Dome Fiber Optic Splice Closure called Fiber Closure has one oval port for express cable applications and four round cable ports, the closure features an O-ring sealing system along with an innovative latching/locking mechanism.


The body of the closure is made up of Modified P.P and the inner splice tray is 100% New ABS, It has a good high-pressure resistance and corrosion resistance.


Dome Fiber Optic Case

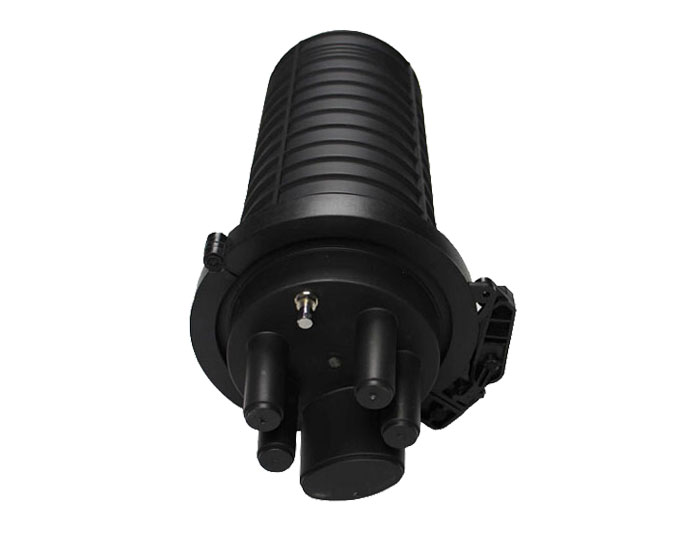

RGP-TSB-201B Dome Fiber Optic Splice Closure have one oval port for express cable applications and four round cable ports, the closure features an O-ring sealing system along with an innovative latching/locking mechanism. This combination is designed to allow simple, watertight closure. Utilizes heat shrinkable technology for cable sealing which helps provide a watertight seal.


The closure is equipped with a built-in fiber management system which provides a separate area for storing, routing, protecting, and "expressing" buffer tubes, singles and ribbon fibers.


An optional built-in air valve is designed to allow flash testing.

Closure Material: Modified P.P.

Closure Seal Material: Innovative latching / locking O-ring closure sealing system.

May be used for all fiber optic cable.

May be used for cut, uncut and taut sheath applications.

Sheath retention & central strength member fasten system included.

Built-in integral multipurpose fiber storage system.



Heat shrinkable cable seal.

Hinged tray design, Splice trays can be easily increased and reduced according to capacity.

Modular splice holder design.

Installation and reentry with a minimum of tools.

Closure can be flash tested.

Protection level: IP68.

RoHS compliance.



Aerial mounting.

Pole Mounting.

Buried, Under-ground.

Vault, Handhole & Manhole.

Configuration

Standard Accessories:

ItemNameUsageQuantity
1FOSC CoverProtecting fiber cable splices in whole1 pc
2FOSC BaseFixing internal and external structure1 pc
3Splice cassetteFixing heat shrink protective sleeve and holding fibersMax. 6 trays (Configuration as per capacity)
4Fiber Holding TrayHolding fibers with protective coatN/A
5Pressure Testing ValveAfter inject air, it is used for pressure testing and sealing testingConfiguration as per requirement.
6Earthing Deriving DeviceDeriving metallic parts of fiber cables in FOSC for earthing connectionConfiguration as per requirement.
7Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
8Nylon TieTo fix buffer tubes with fibers insideSame as capacity
9Grounding WireTo connect with grounding device1pc
10Abrasive ClothTo polish fiber optic cable1pc
11Labelling PaperTo label fibers1 pc
12Buffer TubeTo protect fibers and be fixed on splice trays1 pc
13Installation bolts and nutsTo fix splice cassette1 pc


Optional Accessories:

Pole Mounting Kits, Earthing Deriving Device, Air Valve.


Shipping Infomation

SpecificationSizePcs/CartonWeight
Internal Carton Box455mmx235mmx235mm1 pc6.0 KGS
Outside Carton Box730mmx480mmx460mm6 pcs24.0 KGS


Configuration:

Model No.Splice TraySpliced fiber storage capacityHeight x Diameter
Cable portsMax. diameter of cable(mm)
RGP-TSB-201A

Tray 201A

Capacity: 24 splices

144 Splices

(6x24 Splices)

450mm x 230 mm1 Oval Port+4 Round Ports

1 oval port for 1 looped cable with max 24 mm;

4 round ports each port for 1 cable with max 17.5mm

RGP-TSB-201B

Tray 201B

Capacity: 24 splices

144 Splices

(6x24 Splices)
