Description :
RGP-TSB-501B 256 Core Mechanical Sealing TELEFONICA Dome Fiber Splice Closure is a multifunctional fiber optic cable splicing box, which aims to provide and manage maximum numbers of fiber terminations in a limited space. Equipped with the optical cable docking function of the optical cable splicing box and the fiber optic cabling, branching, and distribution functions. Can be used for wall hanging, pole holding, and overhead installation. The optical fiber closure can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.

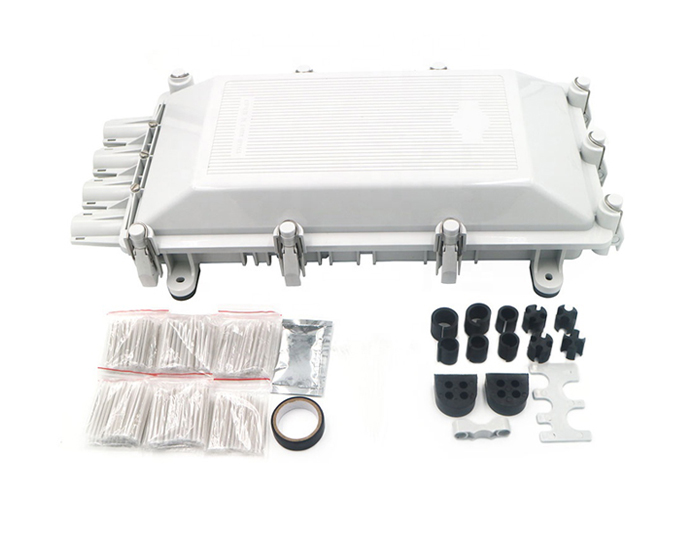

Horizontal Fiber Closure (RGP-TSB-501B), is made of plastic molded parts and has a new gasket seal making them ideal for a wide variety of applications. TSB-501B Splice Closure adopts 4 Rubber Round Port design, 2 Inlet & 2 Outlet. A reusable gasket makes tool-less re-entry easy, while hinge design provides greater security than that of dome closures, you can re-enter, re-configure and add or remove cables in all outside plant and inside plant environments.
Feature:
Fully enclosed structure.
Fiber Closure Material: PC+ABS Alloy.
Sealing Structure: Mechanical Sealing.
Closure Seal Material: Thermoplastic rubber.
Waterproof design, with a protection level of IP67.
Impact test: IK09, tensile force: 1000N, completely sturdy design.

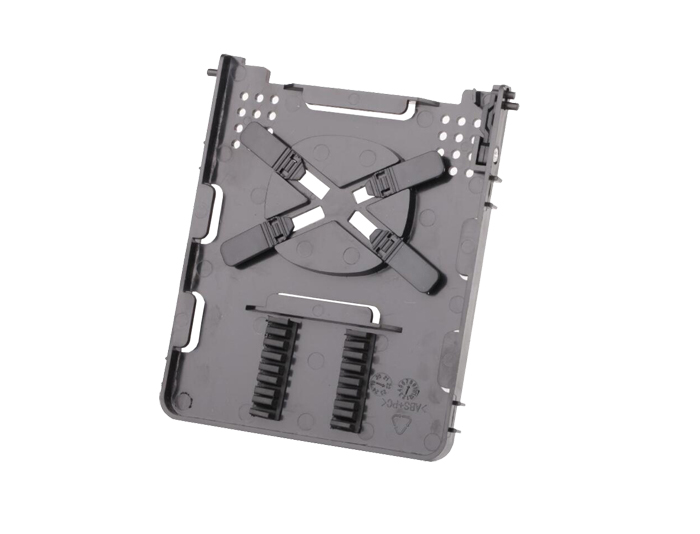

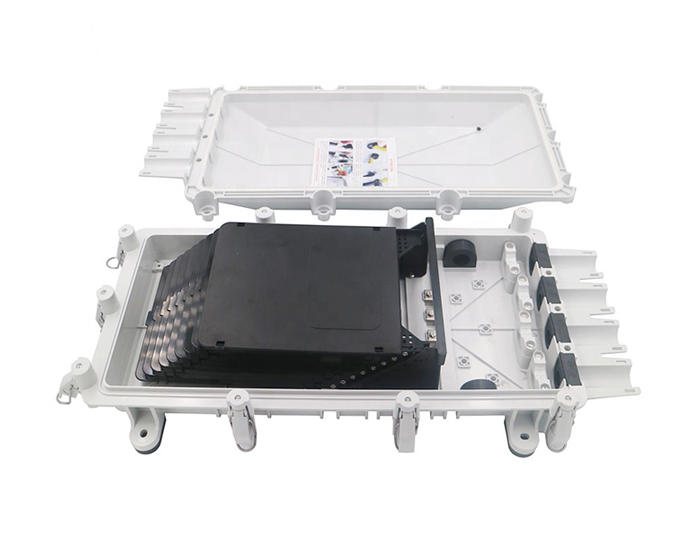

Integrated with flap-up splice cassette and cable management system.
The bending radius of the optical fiber should be controlled above 40mm.
Multiple fiber optic cable plugs can be selected to adapt to various fiber optic cable docking operations.
8 pieces of 32-core optical cable fusion discs, with a maximum fusion of 256 cores.

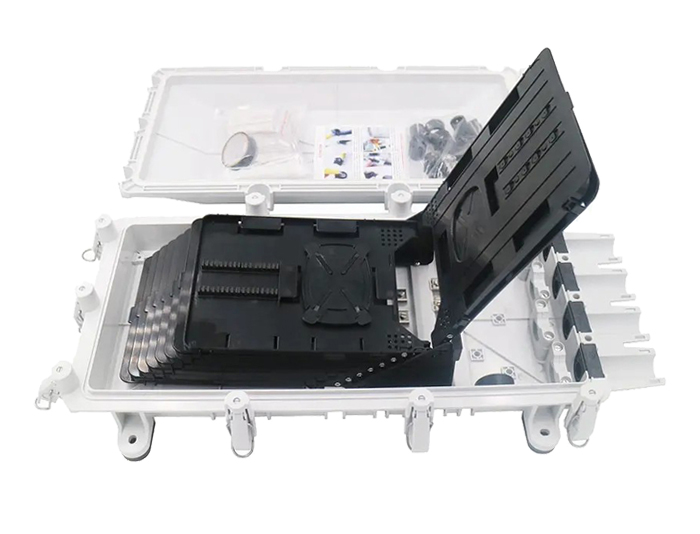

Hinged tray design, Splice trays can be easily increased and reduced according to capacity.
Unique strength member clamp assembly & Spacious fiber management areas.
Compatible with most common cable types: e.g. Loose tube, central core, slotted core, ribbon fiber.
Standardized dimensions, according to the recommendations of TELEFÓNICA, approved for the main operators.
Reusable & Re-entry Test.
RoHS compliance.
Application:
FTTH access network.
Telecommunication Networks.
Data communications Networks.
Local Area Networks.
