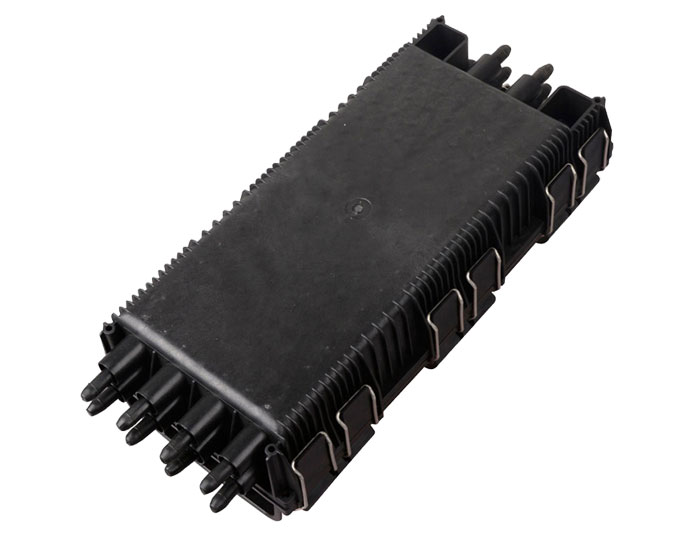

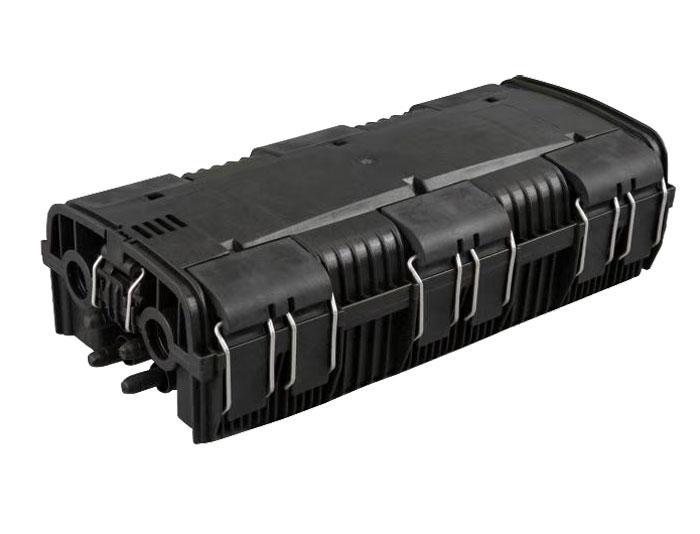

RGP-TSB-105A Fiberr Enclosure is a versatile fiber optical closure designed based upon FTTH fiber network application. It can serve for fiber cable connection, distribution and drop the application in the outside plant. The closure could be used for in-line or butt applications based on its well-considered design.
The most feature is a multi-port feature, two main cable ports can support un-cutting loose tubes as butt type applications. The 12 distribution cable ports, it's possible to protect a large network with fewer closure-offering attractive cost-saving and convenience.
Fiber Enclosure Optic Splice Closure TSB-105A.
The installation of closure is very easy and requires no special tools or complicated training procedures. Re-enterable to allow easy access to the enclosed splices, It's very important for daily maintenance.
Box Material: Modified P.P

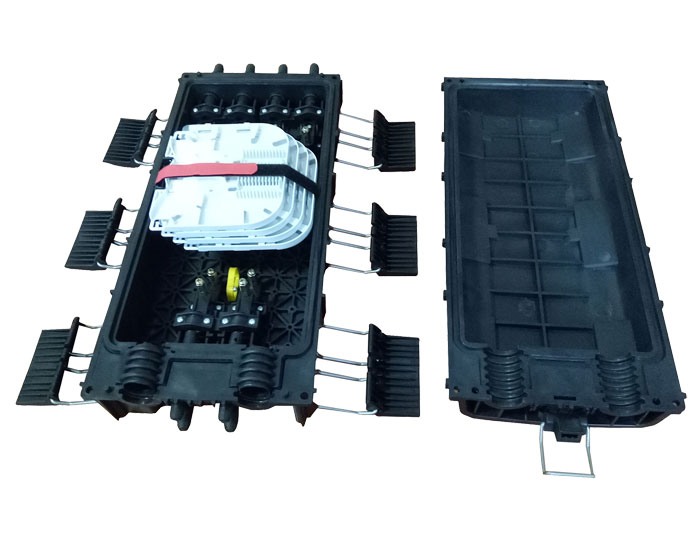

Two halves (cover and base) structure.

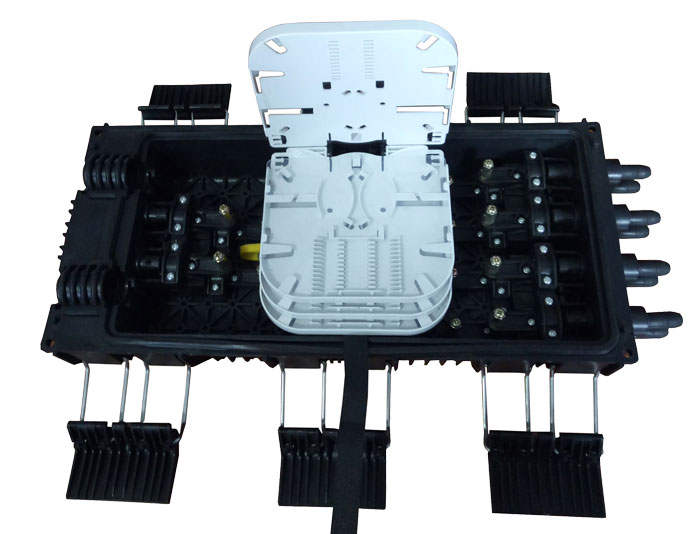

Rotatable stack type fiber tray design.
Flexible configuration design inside closure.
No special tool needed, easy and low cost en-entry.
Removable cable port sealing tube design.
Inline and Butt configuration closure for single and ribbon fibers splice.
Multi-port design with 2+12 cable entry ports, max 2+24 ports.
2 main cable ports for Φ10-16mm cable and 12 distribution cable ports (support Φ5-11mm cable).
The closure adopts mechanical locking without using screws for easy assembly and dis-assembly.
Multi-functions for fusion splice, fiber splitter and coupling adaptors applications
Flexible for different cable types including traditional round cable, FRP cable and underground drop cables.
Re-useable grommet sealing open and close easily for adding or removing drop cables providing efficient cable installation with no mess.
Protection Level: IP68
Structured construction fixed by simple buckle, easy for operation.
RoHS compliance.
Aerial, pole mounting.
Wall mounting.
Manhole, handhole and pedestal installation.
