96 Core FTTH Fiber Optic Splice Closure Types F2E-501A

Publisher: MJADOM

Author: Andy

RGP-F2E-501A FTTH Drop Cable Type Fiber Optic Splice Closure provides a high-density wall-mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.


The body of the closure is made up of Modified P.P and the inner splice tray is 100% New ABS, It has a good high-pressure resistance and corrosion resistance.

RGP-F2E-501A FTTH Drop Cable Type Fiber Optic Splice Closure types provide a high-density wall-mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.


It is normally installed in the way of wall mounting pole mounting. features with ruggedness, which is tested under harsh conditions and stands up to even the most severe conditions of moisture, vibration, and extreme temperatures.


The closures can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.

Closure Material: Modified P.P.

Sealing Structure: Mechanical Sealing.

Closure Seal Material: Thermoplastic rubber.

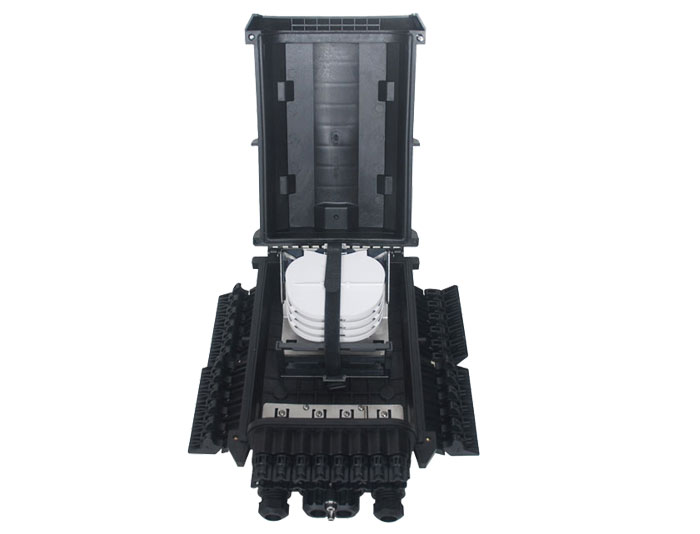

180-degree access with buckled lock structure

Dis-mountable adaptor panel, Support mid-span termination.

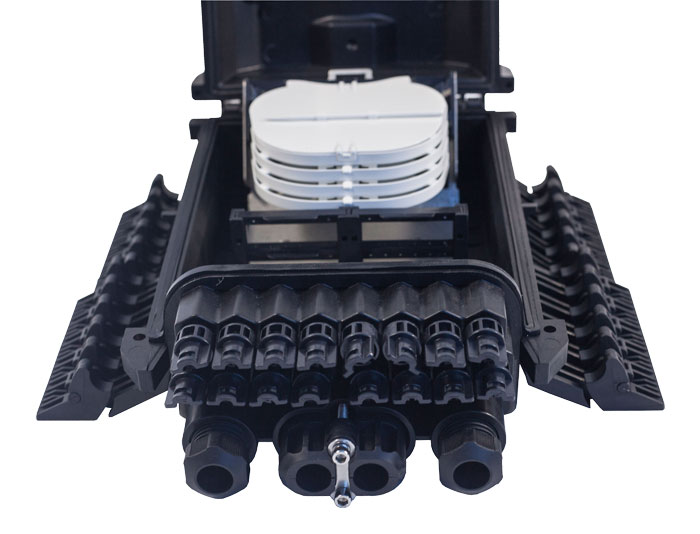

Rotatable and dis-mountable splice tray for easy splicing.

Plug-and-play installation, easy for maintenance and expansion.

Integrated with flap-up splice cassette and cable management system.

Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.



Impact test:1K10. Pull Force:100N. Full Rugged design.

1*8 or 1*16 PLC splitter can be installed in each splice tray as option.

1 mid-span cable entrance(Φ10-17.5mm)for uncut cable and 2 branch ports for distribution cable(Φ10-17.5mm),16 ports cable entrance for pre-terminated distribution cables.

Protection level: IP68.

RoHS compliance.

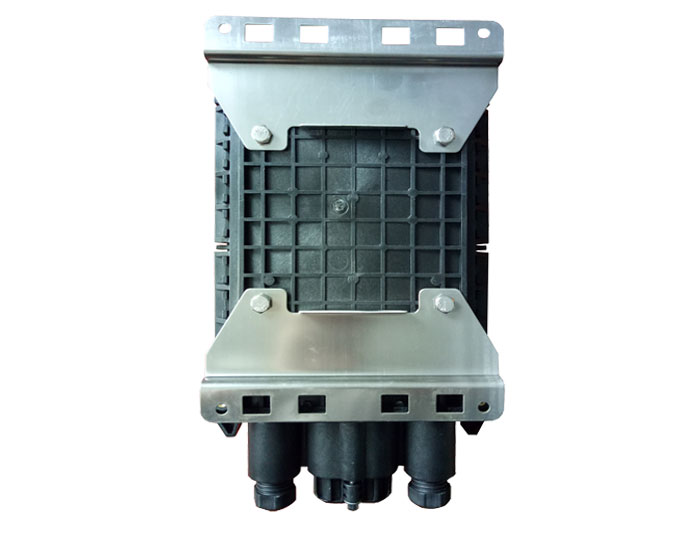

Wall mounting.

Pole mounting installation.

Configuration

Standard Accessories:

ItemNameUsageQuantity
1Fiber Optic Splice Closrue CoverProtecting fiber cable splices in whole1 pc
2Fiber Optic Splice Closure BottomProtecting fiber cable splices in whole1 pc
3Splice cassetteTo splice the fiber opticSame as capacity
4Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
5Nylon TieTo fix buffer tubes with fibers insideSame as capacity
6Grounding WireTo connect with grounding device1pc
7Abrasive ClothTo polish fiber optic cable1pc
8Labelling PaperTo label fibers1 set
9Buffer TubeTo protect fibers and be fixed on splice trays1pc
10Installation bolts and nutsTo fix splice cassette1 set


Shipping Infomation

SpecificationSizePcs/CartonWeight
Internal Carton Box390mmx250mmx140mm1 pc4.2 KGS
Outside Carton Box520mmx420mmx330mm4 pcs18 KGS


Order Information:

Model No.Spliced fiber storage capacity

Size(mm)

L xW xH

Cable portsMax. diameter of cable(mm)Applicable Cable DiameterAdaptors
RGP-F2E-501A

96 Splices

(4x24 Splices)

385mm x245 mm x135mm

1 Uncut Port & 2 Round Port

+16 Drop Cable Outlet Ports

1 uncut of port can support Φ10~17.5 mm;

2 branch ports for distribution cable Φ10~17.5mm;

2x3mm FTTH Drop Cable,

or 2x5mm Figure 8 FTTH Drop Cable

1 pc of 1x16 PLC Splitter

or 2 pcs of 1x8 PLC Splitter

Related Products

48F, 4Trays, Heat Shrink Sealing Dome Closure TSB-203A
48F, 4Trays, Heat Shrink Sealing Dome Closure TSB-203A

​RGP-TSB-203A Dome Closure has one oval port for express cable applications and three round cable ports, the closure features an O-ring sealing system along with an innovative latching/locking mechanism.

144 Core, 6 Trays, Heat Shrink Sealing Dome Fiber Optic Splice Closure TSB-201B
144 Core, 6 Trays, Heat Shrink Sealing Dome Fiber Optic Splice Closure TSB-201B

RGP-TSB-201B Dome Fiber Optic Splice Closure have one oval port for express cable applications and four round cable ports, the closure features an O-ring sealing system along with an innovative latching/locking mechanism.

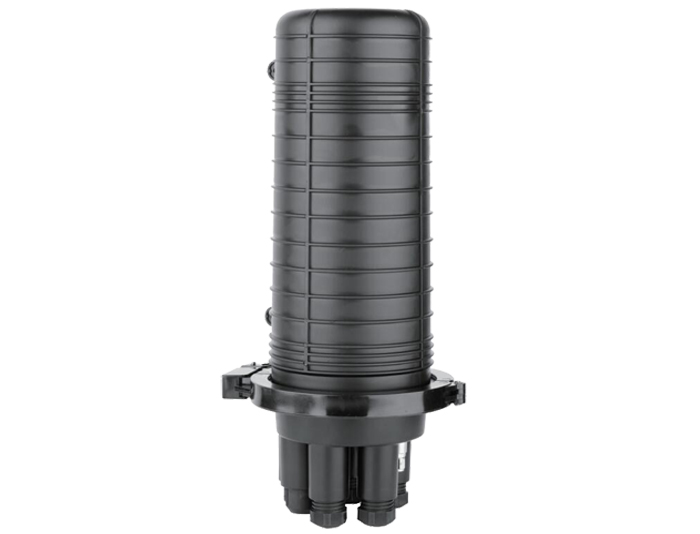

Dome Fiber Optic Splice Closure TSB-401A
Dome Fiber Optic Splice Closure TSB-401A

RGP-TSB-401A Dome type Fiber Optic Splice Closure is also called as vertical closure, it is suitable for FTTH accessing. The input and output are on the same side. One mid-span dual-hole and six mechanical round holes facilitate the operation. It is suitable for aerial, pole mount, underground, manhole installation.

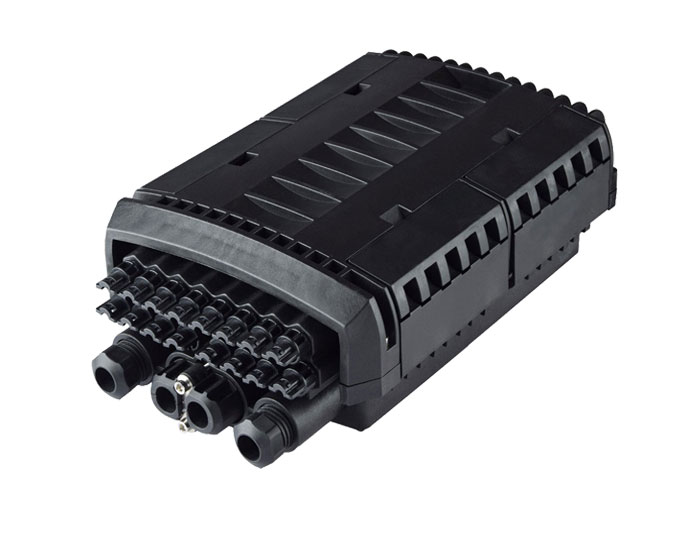

FTTH Fiber Closure F2E-504A
