Description:

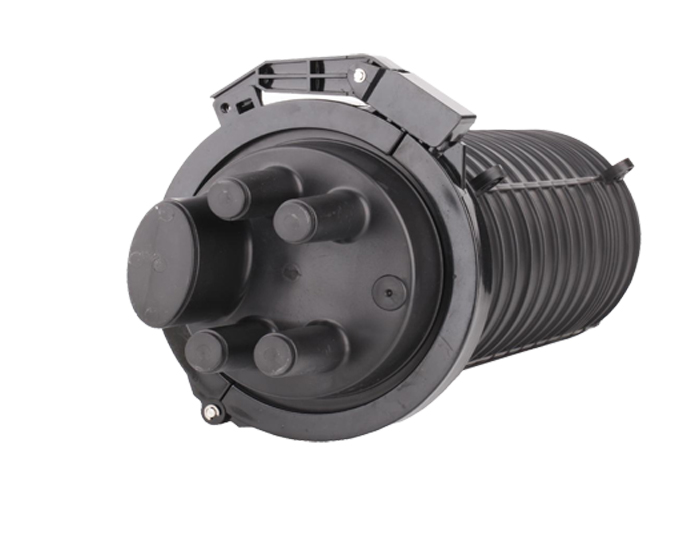

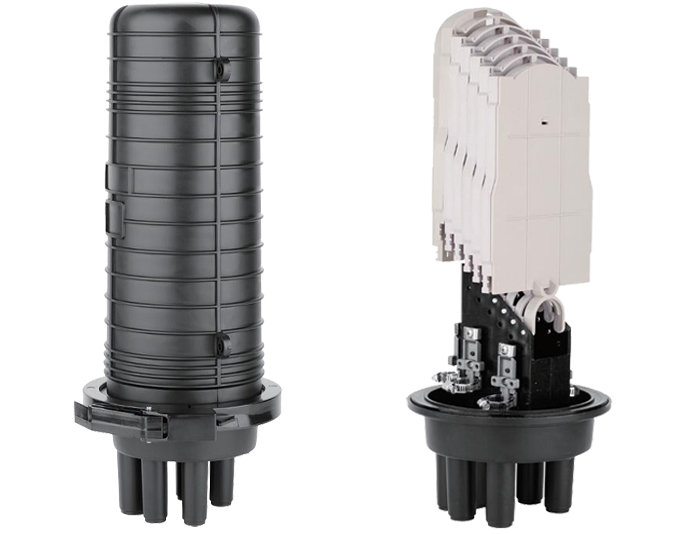

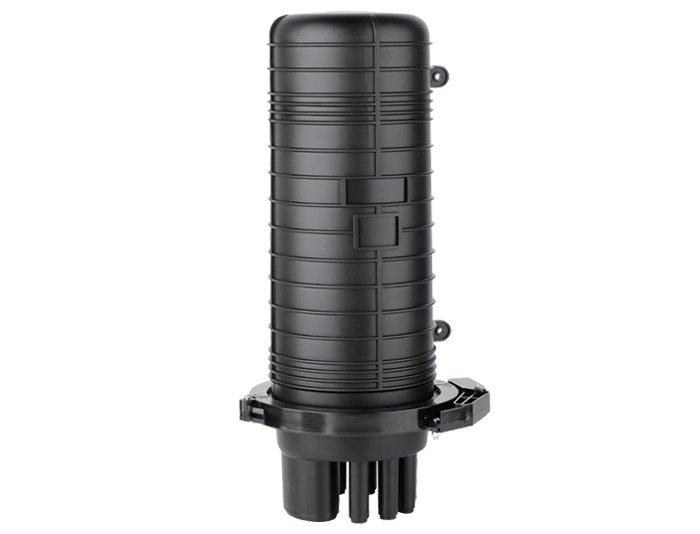

RGP-TSB-205A 144 Core Heat Shrinkable Dome Fiber Optic Splice Enclosure has one oval port for express cable applications and four round cable ports, the splice closure features an O-ring sealing system along with an innovative latching/locking mechanism. This combination is designed to allow simple, watertight closure. Utilizes heat shrinkable technology for cable sealing which helps provide a watertight seal.

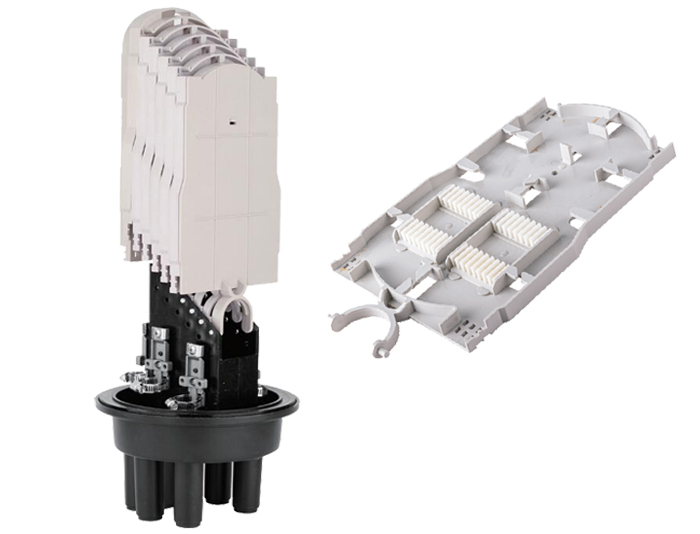

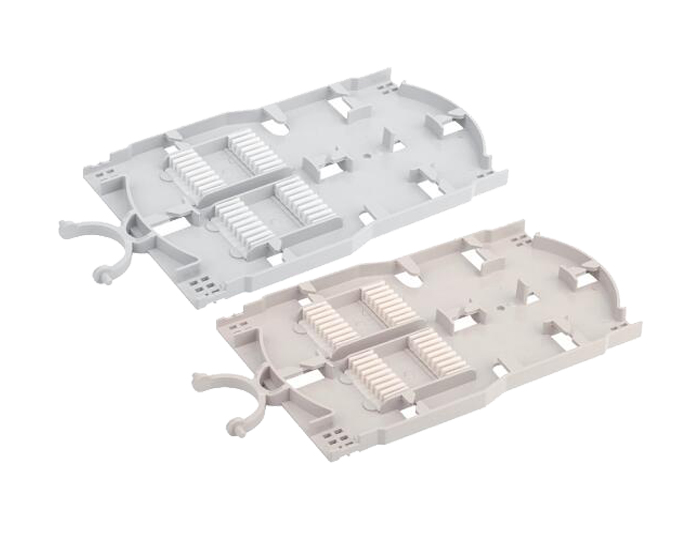

The Fiber Enclosure Box is equipped with a built-in fiber management system which provides a separate area for storing, fiber optic cabling, protecting, and "expressing" buffer tubes, singles and ribbon fibers. The hinged fiber splice tray include a modular splice holder design which allows them to accept single fusion, single mechanical, and various mass fusion splice (4-,6-,8- and 12- fiber ribbon) by simply replacing the splice holder.
An optional built-in air valve is designed to allow flash testing.
Feature:
Closure Material : MPP-Modified P.P.
Closure Seal Material : Innovative latching / locking O-ring closure sealing system.
May be used for all fiber optic cable.
May be used for cut, uncut and taut sheath applications.
Sheath retention & central strength member fasten system included.
Built-in integral multipurpose fiber storage system.
Heat shrinkable cable seal.
1 oval hole and 4 round holes for cable entrance.
Maximum capacity : 144 Fibers (6 trays,24 fiber/tray)
Applicable Splitter: 1x8 or 1x16 PLC Splitter can be installed in each splice tray as option.
Hinged tray design, Splice trays can be easily increased and reduced according to capacity.
Modular splice holder design.
Installation and reentry with a minimum of tools.
Closure can be flash tested.
Protection class: IP68.
RoHS compliance.
Applications:
Aerial mounting, Wall Mounting, Pole Mounting, Buried, Under-ground, Vault, Handhole & Manhole.
