96 Core Fiber Optic Enclosure Outdoor F2E-503A

Publisher: MJADOM

Author: Andy


RGP-F2E-503A FTTH Drop Cable Type Fiber Optic Splice Closure provides a high-density wall-mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.


Horizontal Fiber Optic Splice Closure also called Fiber Optic Closure, It made of Modified P.P and has a new gasket seal making them ideal for a wide variety of applications. The body of the closure is made up of Modified P.P and the inner splice tray is 100% New ABS.

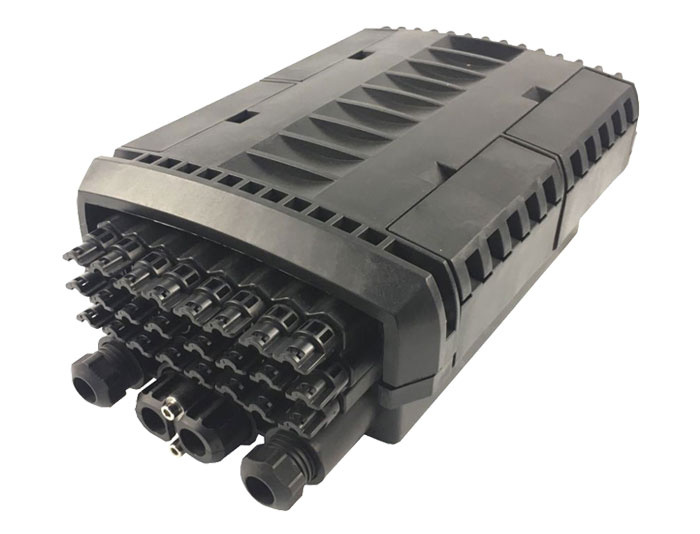

FTTH Fiber Optic Splice Closure F2E-503A



RGP-F2E-503A FTTH Drop Cable Type Fiber Optic Splice Closure provides a high-density wall-mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.


It is normally installed in the way of wall mounting pole mounting. features with ruggedness, which is tested under harsh conditions and stands up to even the most severe conditions of moisture, vibration, and extreme temperatures.


The closures can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.

Closure Material: MPP-Modified P.P.

Sealing Structure: Mechanical Sealing

Closure Seal Material: Thermoplastic rubber.

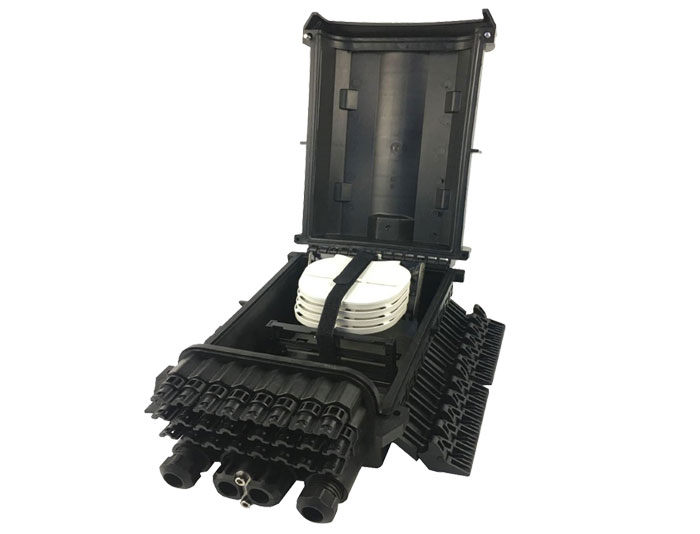

180 degree access with buckled lock structure

Dis-mountable adaptor panel, Support mid-span termination.


Rotatable and dis-mountable splice tray for easy splicing.

Plug-and-play installation,easy for maintenance and expansion.

Integrated with flap-up splice cassette and cable management system.

Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.



Impact test: 1K10. Pull Force: 100N. Full Rugged design.

1*8 or 1*16 PLC splitter can be installed in each splice tray as option.

1 mid-span cable entrance(Φ10-17.5mm)for uncut cable and 2 branch ports for distribution cable(Φ10-17.5mm),24 ports cable entrance for pre-terminated distribution cables.

Protection level: IP68.

RoHS compliance.

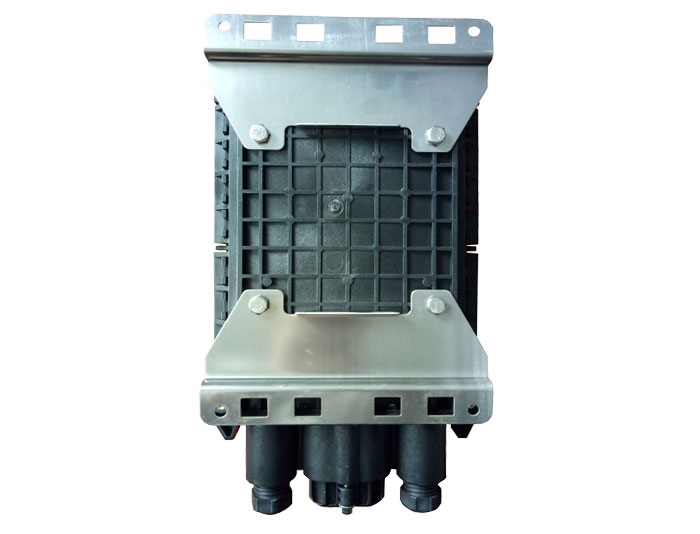

Wall mounting.

Pole mounting installation.


Configuration

Standard Accessories:

ItemNameUsageQuantity
1Fiber Optic Splice Closrue CoverProtecting fiber cable splices in whole1 pc
2Fiber Optic Splice Closure BottomProtecting fiber cable splices in whole1 pc
3Splice cassetteTo splice the fiber opticSame as capacity
4Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
5Nylon TieTo fix buffer tubes with fibers insideSame as capacity
6Grounding WireTo connect with grounding device1pc
7Abrasive ClothTo polish fiber optic cable1pc
8Labelling PaperTo label fibers1 set
9Buffer TubeTo protect fibers and be fixed on splice trays1pc
10Installation bolts and nutsTo fix splice cassette1 set


Shipping Infomation

SpecificationSizePcs/CartonWeight
Internal Carton Box390mmx250mmx180mm1 pc4.52 KGS
Outside Carton Box520mmx420mmx370mm4 pcs20 KGS


Order Information:

Model No.Spliced fiber storage capacityHeight xdiameterCable portsMax. diameter of cable(mm)Applicable Cable DiameterAdaptors
RGP-F2E-502A

96 Splices

(4x24 Splices)

385mmx245 mmx170mm

1 Uncut Port+2 Branch Ports

+24 Drop Cable Outlet Ports

1 uncut of port can support Φ10~17.5 mm;

2 branch ports for Φ10~17.5 mm cable.

2x3mm FTTH Drop Cable, 2x5mm Figure 8

FTTH Drop Cable

1 pc of 1x16 PLC Splitter

or 2 pcs of 1x8 PLC Splitter

Related Products

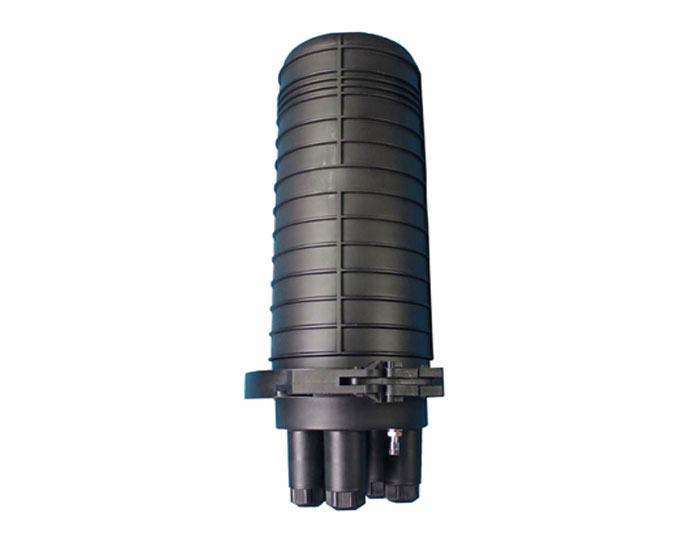

Dome Heat Shrink Sealing Fiber Closure TSB-301A
