Description:

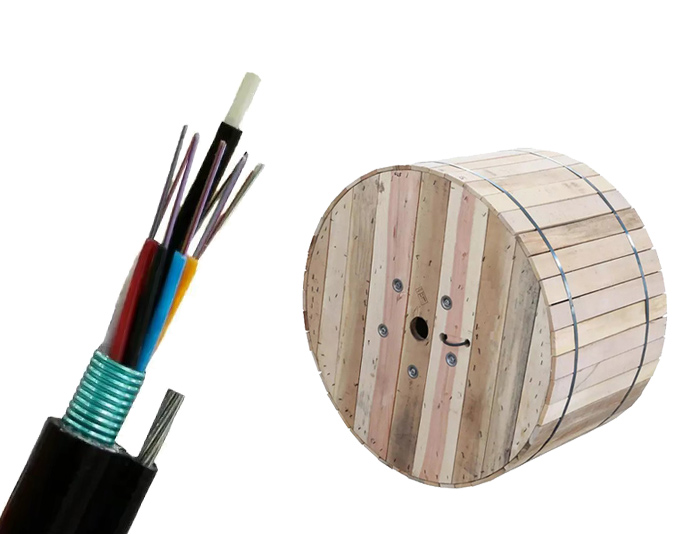

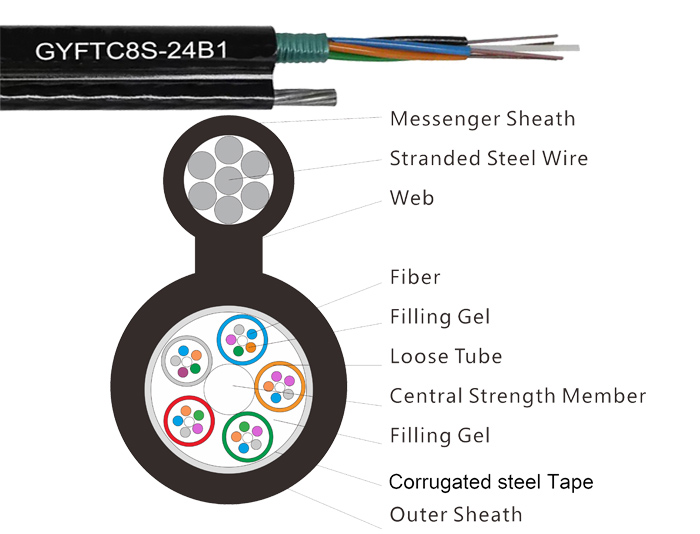

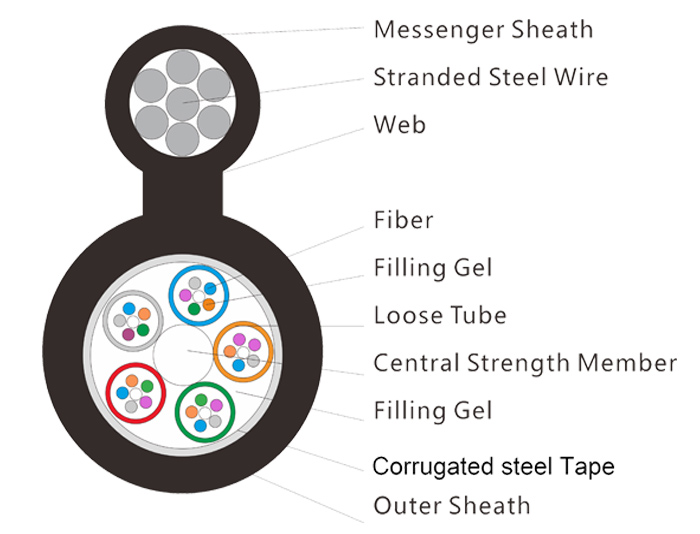

GYFTC8S, Figure 8 Steel Tape Single Armored Self-Supporting Stranded Loose Tube Aerial Optical Fiber Cable. The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A FRP locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After Corrugated Steel Tape (PSP) moisture battier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. Finally, Figure 8 Fiber Cable is specially applied for self-supporting aerial installation.
Feature:
S-Z stranded, Gel-filled.
Fiber Optic Cable Core Up to 144 fibers.
Low loss, low dispersion.
Aerial Fiber Optic Cable.
Good mechanical and temperature performance.
High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
Special tube filling compound ensures a critical protection for the fiber.
A specially designed compact structure is good at preventing loose tubes from shrinking.
Crush resistance and flexibility.
Non-Metallic Central Strength Member.
Longitudinal wrapped Corrugated Steel Tape (PSP) moisture barrier.
Loose tube filling compound.
Reasonable design, precise residual length control and cabling process make the cable have excellent mechanical and environmental performance.
In accordance with IEC, ITU, and EIA standards.
Application:
Self-supporting Aerial.
