4 Core FTTH Fiber Access Terminal Box GZF-A06A

Publisher: MJADOM

Author: Andy

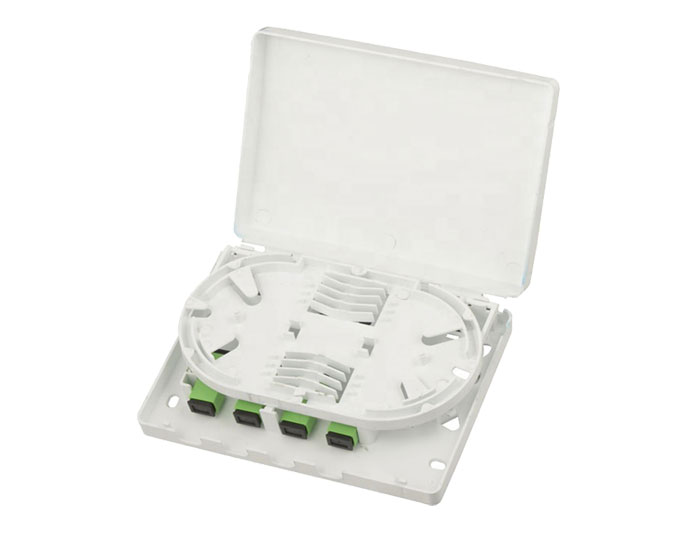

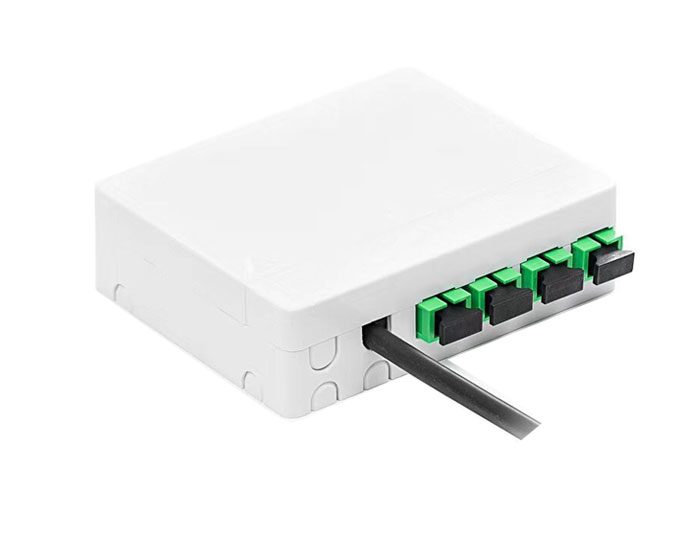

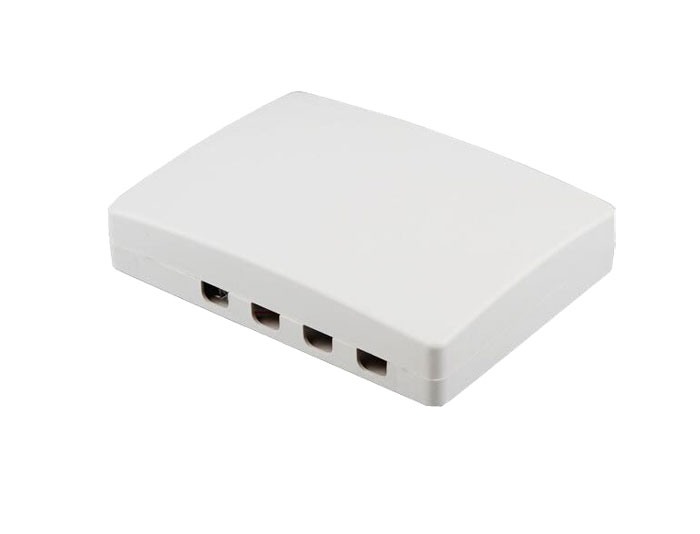

RGP-GZF-A06A  The Fiber Access Terminal Box also called Fiber Access or Fiber Access Terminal is designed for use in residential and business applications for the termination of up to 4 fibers, used to connect the drop cable and the passive optical equipment of the ONU.

RGP-GZF-A06A  The Fiber Access Terminal Box also called Fiber Access or Fiber Access Terminal is designed for use in residential and business applications for the termination of up to 4 fibers, used to connect the drop cable and the passive optical equipment of the ONU.


It can hold 4 SC/LC Duplex Adapters. The unit can be quickly installed within an office, house, or communication room environment.


MJADOM is a professional Fiber To The Home provider and provides a full range of the Fiber Access Terminal Box with SC, LC Fiber Optic Adapter, Buy High-Performance fiber access terminal box for Fiber Distribution Terminal at MJADOM.

Features:

Provides 4 fibers to satisfy different capacity requirements of customers.

Compact, low profile, wall-mounted unit used for small and large business premises.

Supports fusion splicing, mechanical splicing, and FA connectors.

White appearance, simple and elegant.

Economic design.

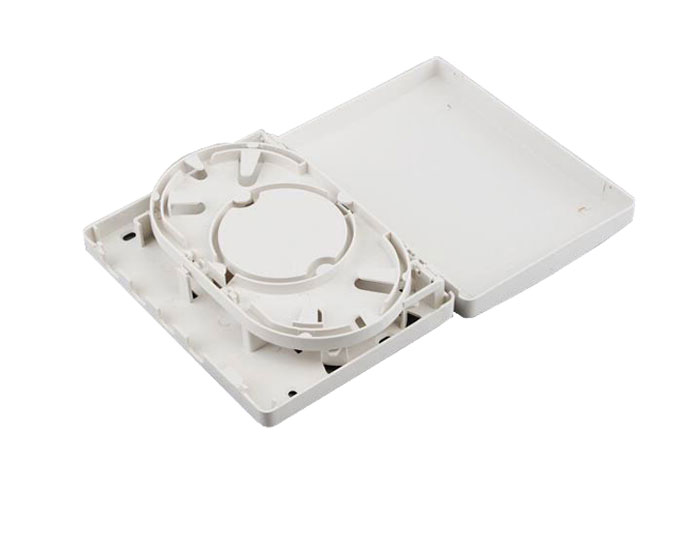

Removable cover for easy access.



Not need to open the cover plate when plugging and unplugging fiber connectors.

It is easy to operate and has clear operating instructions.

It has cable holes on each side (left, right, top, bottom, and base), which meets diverse cable routing requirements.



Technical Data:

Number of input cable ports: 2.

Maximum input cable diameter(mm):5mm.

Maximum Capacity: 4 fibers (SC Adapter).

Dimension: 149mmx115mmx30mm.



Application:

Wall and pole mountable.

Widely used in FTTH access network.

Telecommunication Network.

CATV Networks.

Data communications Networks.

Local area network.


Complied Standards:

Meet national standard Q / CT 2353-2011.


Configuration

Order Information:

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-GZF-A06A

4 Splices,

SC/LC Duplex adaptors

 149mmx115mmx30mm 100 PCS

2 Inlet for Drop Cable

+4 Ports G657A2 Pigtails

 13 KGS 475mmx415mmx320mm
