3 Port RJ45+SC Adapter Fiber Outlet Box GZF-A3

Publisher: MJADOM

Author: Andy

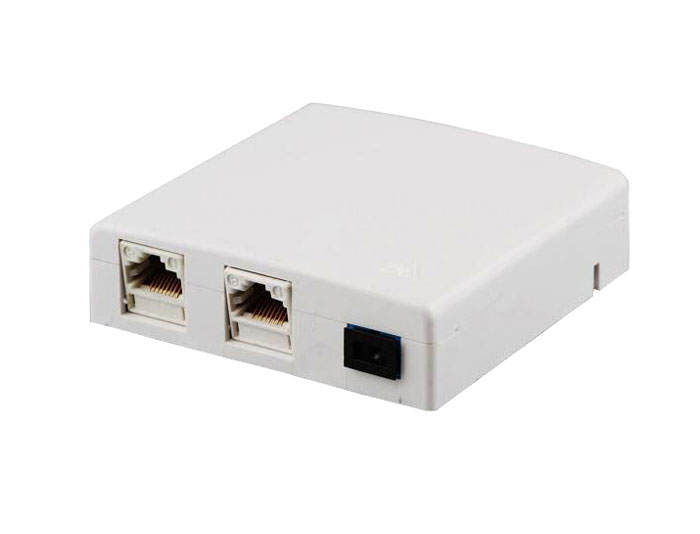

RGP-GZF-A3  Fiber Outlet Box also called Fiber Access Terminal Box is designed for use in residential and business applications for the termination of up to 2 fibers+2 pcs RJ45 Keystone Jack, used to connect the drop cable and the passive optical equipment of the ONU.

RGP-GZF-A3  Fiber Outlet Box also called Fiber Access Terminal Box is designed for use in residential and business applications for the termination of up to 2 fibers+2 pcs RJ45 Keystone Jack, used to connect the drop cable and the passive optical equipment of the ONU.


It can hold 1 SC/LC Duplex Adapters. The unit can be quickly installed within an office, house, or communication room environment.


MJADOM provides a full range of the Fiber Access Terminal Box with SC, LC Fiber Optic Adapter, Nuy high-performance fiber access terminal box for Fiber Distribution Terminal at MJADOM. Get Quote Now !!

Features:

Provides 2 fibers to satisfy different capacity requirements of customers.

Compact, low profile, wall-mounted unit used for small and large business premises.

Supports fusion splicing, mechanical splicing, and FA connectors.

White appearance, simple and elegant.

Economic design.

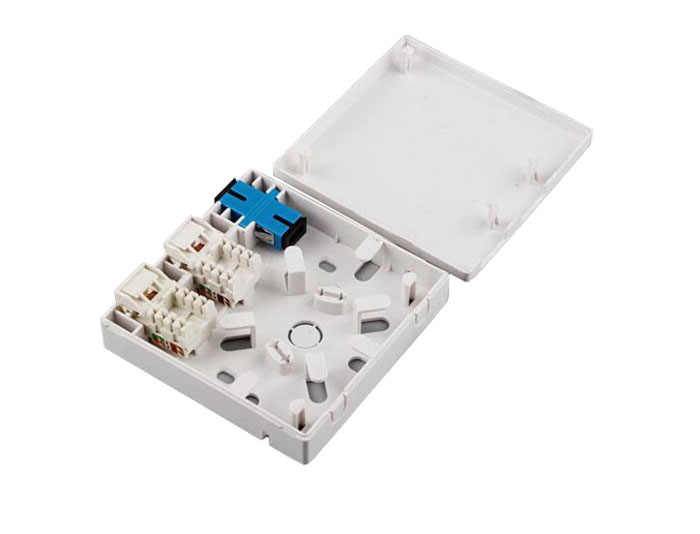

Removable cover for easy access.



Not need to open the cover plate when plugging and unplugging fiber connectors.

It is easy to operate and has clear operating instructions.

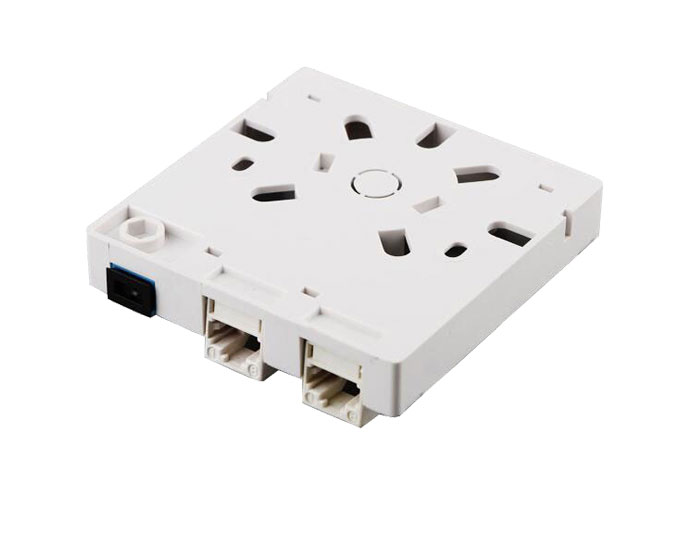

It has cable holes on each side (left, right, top, bottom, and base), which meets diverse cable routing requirements.


Technical Data:

Number of input cable ports: 2.

Maximum input cable diameter(mm):5mm.

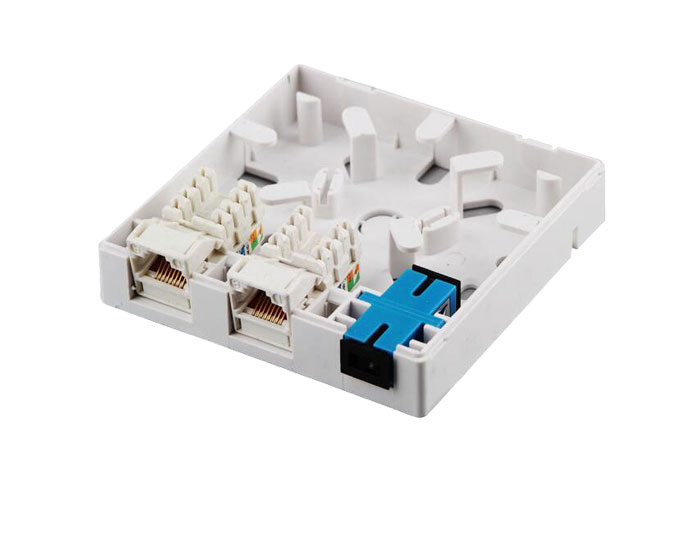

Maximum Capacity: 1 SC/LC Fiber Adapter+2 RJ45 Keystone Jack.

Dimension: 86mmx86mmx19mm.

Application:

Wall and pole mountable.

Widely used in FTTH access network.

Telecommunication Network.

CATV Networks.

Data communications Networks.

Local area network.



Complied Standards:

Meet national standard Q / CT 2353-2011.

Configuration

Order Information :

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
 RGP-GZF-A3 2 Splices+2 RJ45 Keystone Jack86mmx86mmx19mm 400 PCS

1 SC/LC Fiber Adapter

+2 RJ45 Keystone Jack

 24 KGS540mmx380mmx520mm
