Description :

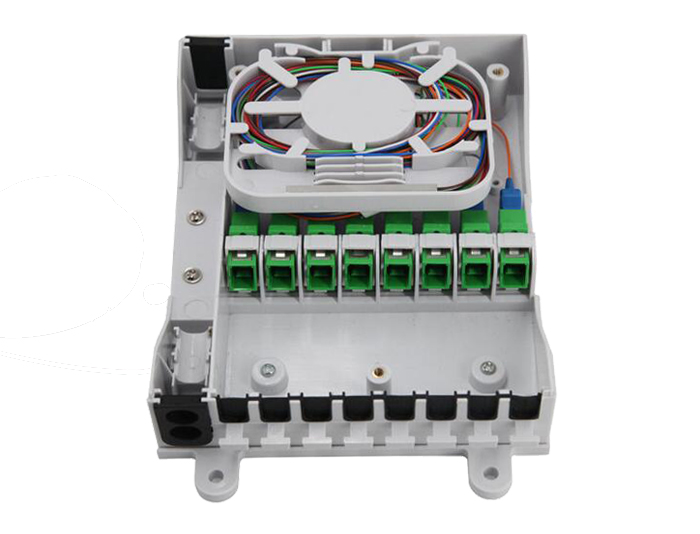

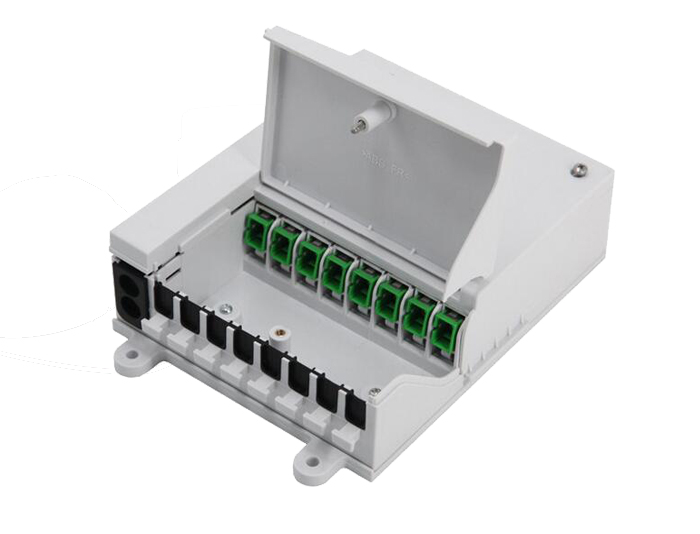

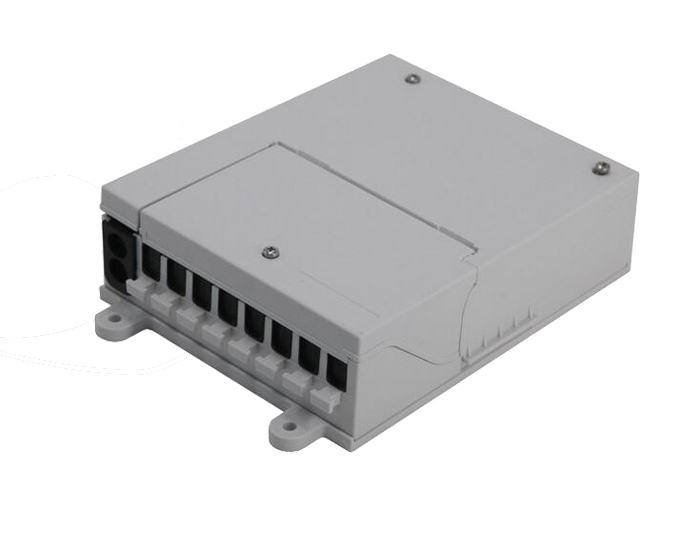

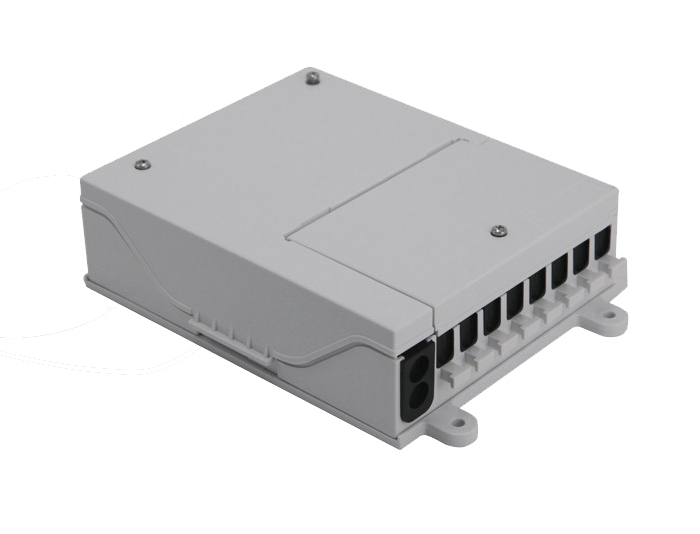

RGP-GZF-08C Fiber Access Terminal Box is made of PC/ABS to splice and connect fibers in FTTX network system, making the delivery of next-generation services into multiple dwellings or multiple tenant buildings easier. Individual boxes support various types of cable and connectors, including fiber, coax, and data. The Terminal Box based on a modular splice cassette system, the technology consists of a splice cassette, a termination cassette and a cable guide element, the IP level is IP55.
Features :
l Total enclosed structure, Self-clip design, easy to install.
l Accommodates up to 8 termination/splice connections - Up to 8 SC simplex adapters.
l Material: The box made of high impact plastic PC+ABS(Halogen free), Waterproof, Dust-proof, Anti-aging, Protection level up to IP55, RoHS compliant; conforms to UL 94 V-0.
l Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one box.
l Suitable for SC/LC/PLC splitter installation, easy maintenance.
l Unique middle panel ≥ 180°,clear area for splicing and distribution, less cross- connection for cables.
l Features pass-through functionality for uncut cables
l 2 inlet ports, 8 outlet ports, max capacity 8 fibers, Rubber sealing circle for waterproof
l Drop cable 2*3.0mm figure-8 FRP LSZH and fast field installation connector install
l Fiber to the Home (FTTH) and outdoor use, Suitable for wall and pole mounting.
l Factory pre-assembly terminated with pigtail, adapter & PLC splitter, make sure high-quality, low cost & rapid deployment.
Application:
Wall and pole mountable.
Widely used in FTTH access network.
Telecommunication Network.
CATV Networks.
Data communications Networks.
Local area network.
