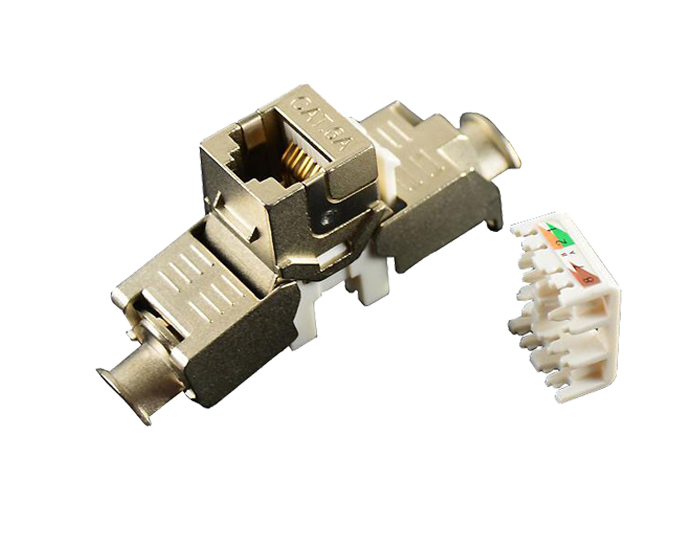

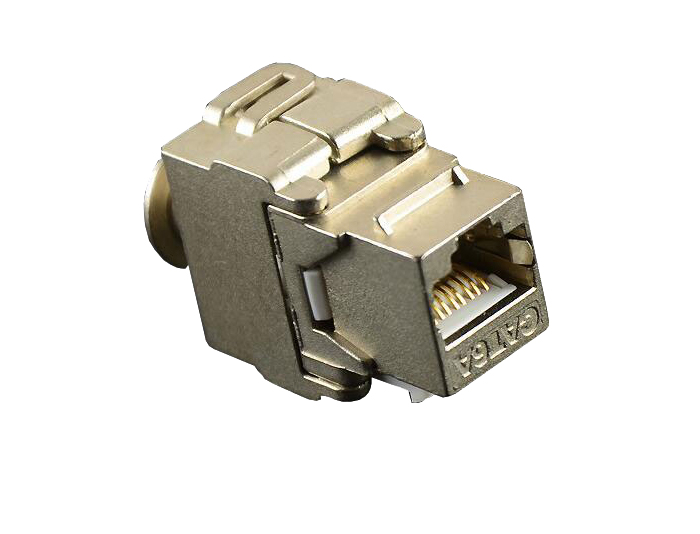

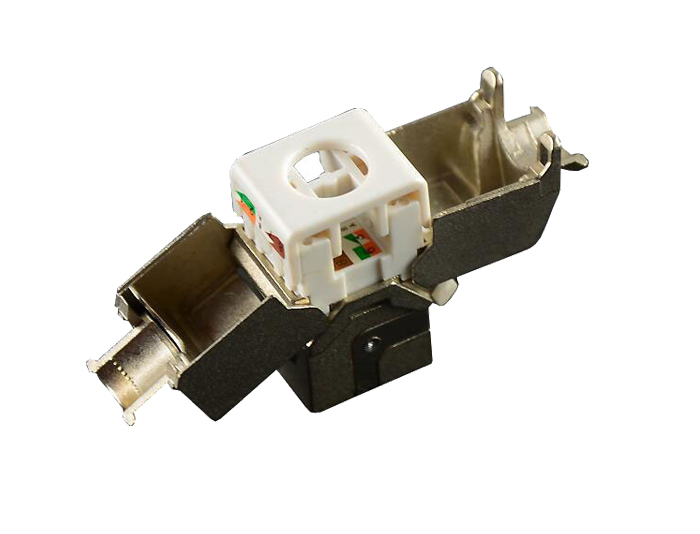

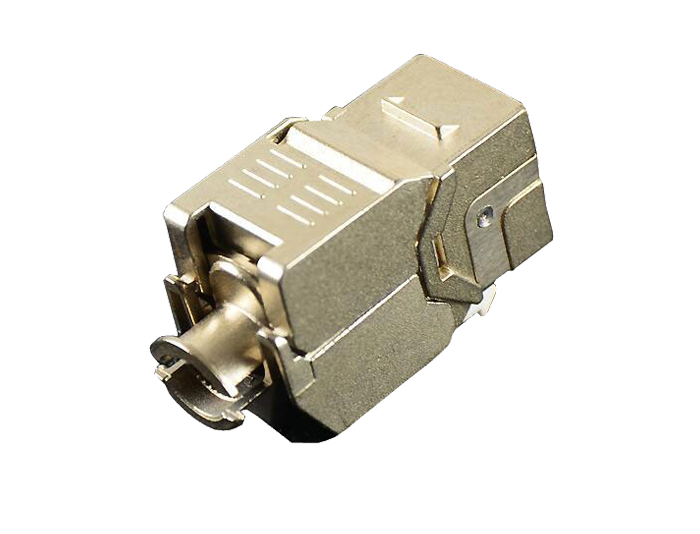

Cat6A RJ45 (8P8C) Shielded Toolless Keystone Jack TSF-302E1

Publisher: MJADOM

Author: Andy

The RJ-45 CAT6A Keystone Jack is designed to deliver advanced performance for 10G applications and backward compatibles with CAT6 and CAT5e systems. The module jack is compatible with 22 or 26 AWG solid cable into Patch Panels, Faceplates, and Surface Mount Boxes, or any other keystone products.

Description:

The RJ-45 CAT6A Shielded Toolless Keystone Jack (8P8C) complies with TIA/EIA-568-C.2 standard. The back of the module is an IDC termination interface offering two wiring schemes: T568A & T568B. The module jack is compatible with 22 or 26 AWG solid cable into Patch Panels, Faceplates, and Surface Mount Boxes, or any other keystone products.



The Keystone Jack Cat6A easy to snap-in retaining clip ensures a secure connection. The 110-type terminations are color-coded with both T568A and T568B wiring schemes. Dual IDC modules accommodate both 110 and Krone impact tools and include dust caps that assist with cable strain relief. Constructed of high-impact, fire-retardant plastic with gold-plated contacts, these keystone jacks meet or exceed Category 6A performance in compliance with the ANSI/TIA/EIA 568-C.2 standard.



CAT6A Keystone Jack is designed to deliver advanced performance for 10G applications and backward compatibles with CAT6 and CAT5e systems. CAT6A module jack FTP die-cast connector and wire cap shields and protects vital network terminations from harmful Electromagnetic Interference (EMI) commonly present around power cables, heavy machinery, and external noises that causes alien crosstalk along the path of a signal.



Features:

CAT6A shielded connectors provide excellent performance for data networks.

Cat6A Keystone Jack easy installation requires no punch down tool.

Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.

Future proof your network for 10-Gigabit Ethernet.

Shielded housing provides against electromagnetic interference (EMI).

Toolless Keystone Jack Color-coded termination for T568A and T568B wiring schemes.

Ideal for a 22-26AWG solid wire.

Clear protective wire cap allowing security during wire management.

Universal IDC Module (Krone or 110) termination interface

Available in six colors to facilitate network management.

Compatible with Keywerks Patch Panels, Faceplates & Surface Mount or any other keystone products

Gold-plated contacts and easy snap-in retaining clip ensure a secure and corrosion free connection

Impact-resistant plastic

Exceeds ANSI/TIA-568-C requirements for permanent performances

UL 1863 compliant.


Technical Details:

Electrical Details:
Current Rating1.5AmpsInsulation Resistance500 Megaohm
DC Resistance0.1ohm MAXVoltage150 VAC MAX
Insertion Life1500 mating cyclesPlug Retention Force89N
IDC Accept22-26 AMG Solid WireWire SchemeT568A / T568B
Material
SpringPhosphor Bronze with gold-painted (6U"~50U") over nickel-paintedIDC ContactPhosphor Bronze with Tin-painted
PlasticPolycarbonate PCShieldZinc Alloy
Environmental Conditions:
Storage Temperature-60℃ ~+80℃Operational Temperature-10℃ ~+60℃
Relative HumidityMaximum Noncondensing 93%.


Application:

Compatible with keystone jack patch panels.

Compatible with keystone jack wall plates.

Compatible with keystone jack surface mount boxes.

Telecommunication or Equipment Room Inter-connect or cross-connect termination.

Configuration

Order Information:

Model No.Product Description
RGP-TSF-302A1CAT5E RJ45 UTP Keystone Jack
RGP-TSF-302B1CAT5E RJ45 UTP Keystone Jack
RGP-TSF-302C1CAT5E RJ45 UTP Keystone Jack For Patch Panel
RGP-TSF-302D1CAT6 RJ45 UTP Keystone Jack
RGP-TSF-302D2CAT6 RJ45 UTP Keystone Jack
RGP-TSF-302D3CAT6 RJ45 FTP Keystone Jack
RGP-TSF-302E1CAT6A RJ45 Keystone Jack FTP Toolless
