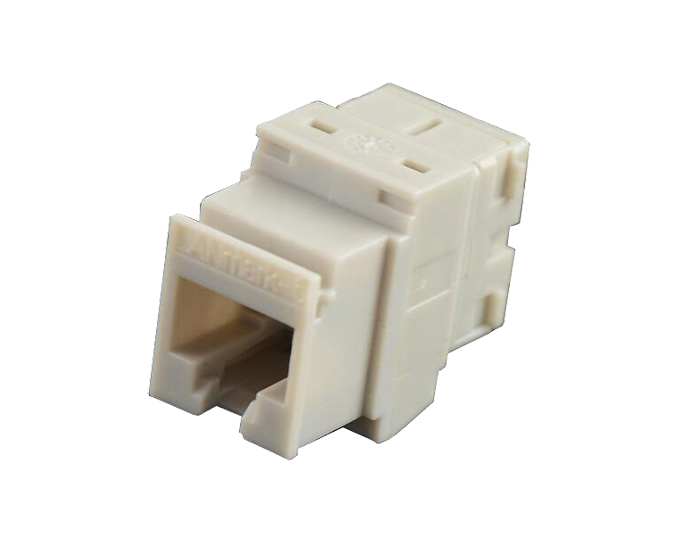

Cat6 RJ45 (8P8C) Unshielded Keystone Jack TSF-302D2

Publisher: MJADOM

Author: Andy

The Cat6 Keystone Jacks meet or exceed Category 6 performance in compliance with the ANSI/TIA/EIA 568-C.2 standard. The back of the module is an IDC termination interface offering two wiring schemes: T568A & T568B. The Keystone Jack Cat6 is compatible with 22 or 26 AWG solid cable into Patch Panels, Faceplates, and Surface Mount Boxes or any other keystone products.

Description:

The RJ-45 CAT6 Keystone Jack (8P8C) is a punch-down UTP connector that complies with TIA/EIA-568-C.2 standard. The back of the module is an IDC termination interface offering two wiring schemes: T568A & T568B. The Keystone Jack Cat6 is compatible with 22 or 26 AWG solid cable into Patch Panels, Faceplates, and Surface Mount Boxes or any other keystone products.



The Cat6 Keystone Jack easy to snap-in retaining clip ensures a secure connection. The 110-type terminations are color-coded with both T568A and T568B wiring schemes. Dual IDC modules accommodate both 110 and Krone impact tools and include dust caps that assist with cable strain relief. Constructed of high-impact, fire-retardant plastic with gold-plated contacts, these keystone jacks meet or exceed Category 6 performance in compliance with the ANSI/TIA/EIA 568-C.2 standard.



Features:

CAT6 Keystone Jack provides excellent performance for data networks.

Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.

Backward compatible with all lower rated category components.

The Modular Jack Color-coded termination for T568A and T568B wiring schemes.

Ideal for a 22-26AWG solid wire.

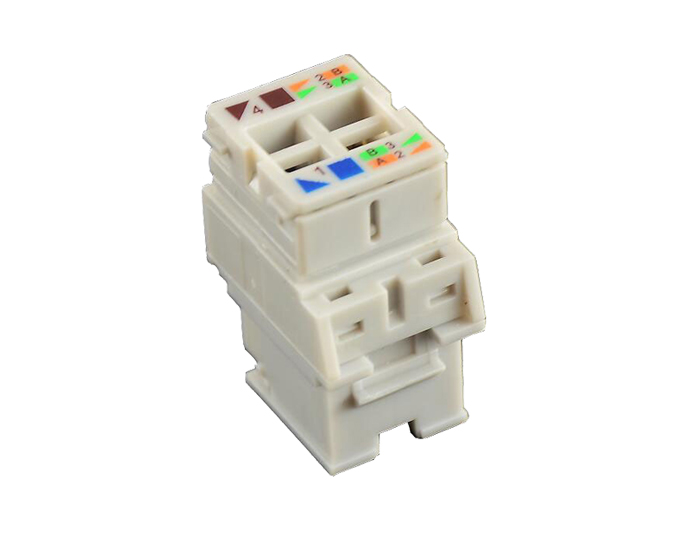

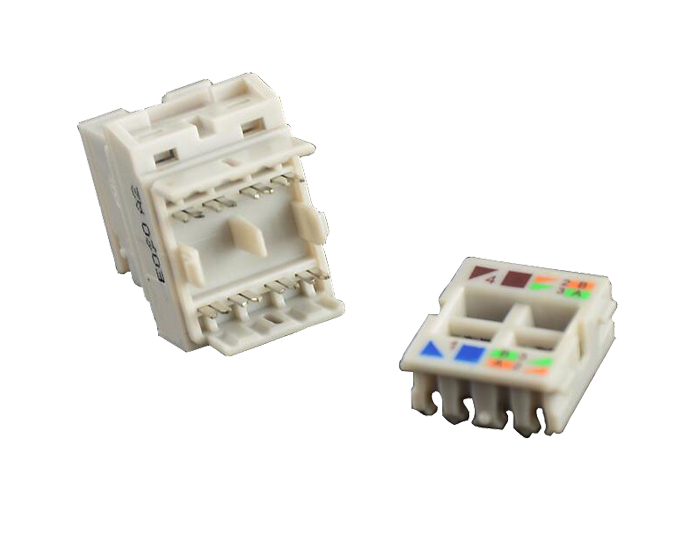

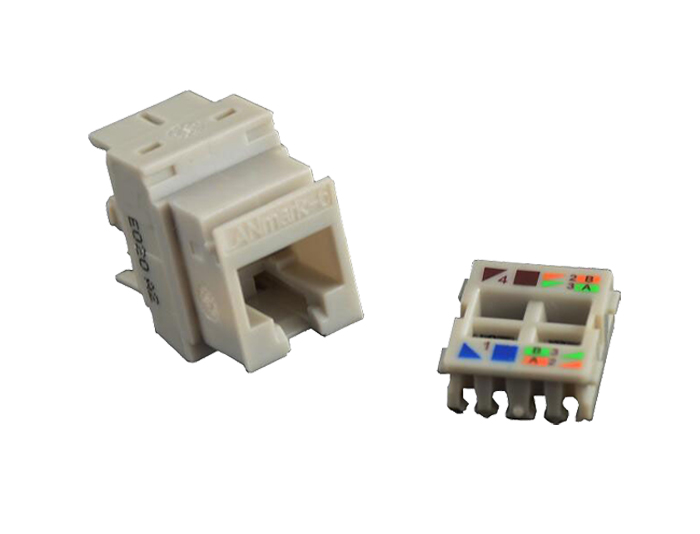

Clear protective wire cap allowing security during wire management.

Universal IDC Module (Krone or 110) termination interface.

Available in six colors to facilitate network management.

Compatible with Keywerks Patch Panels, Faceplates & Surface Mount, or any other keystone products.

Gold-plated contacts and easy snap-in retaining clip ensure a secure and corrosion-free connection.

Modular Jack for use with Category6 patch cords.

Impact-resistant plastic.

Exceeds ANSI/TIA-568-C requirements for permanent performances.

UL 1863 compliant.


Technical Details:

Electrical Details:
Current Rating1.5AmpsInsulation Resistance500 Megaohm
DC Resistance0.1ohm MAXVoltage150 VAC MAX
Insertion Life1500 mating cyclesPlug Retention Force89N
IDC Accept22-26 AMG Solid WireWire SchemeT568A / T568B
Material
SpringPhosphor Bronze with gold-painted (6U"~50U") over nickel-paintedIDC ContactPhosphor Bronze with Tin-painted
PlasticPolycarbonate PCJawsNylon with 30%reinforcing agent
Environmental Conditions:
Storage Temperature-60℃ ~+80℃Operational Temperature-10℃ ~+60℃
Relative HumidityMaximum Noncondensing 93%.


Application:

Compatible with keystone jack patch panels.

Compatible with keystone jack wall plates.

Compatible with keystone jack surface mount boxes.

Telecommunication or Equipment Room Inter-connect or cross-connect termination.

Configuration

Order Information:

Model No.Product Description
RGP-TSF-302A1CAT5E RJ45 UTP Keystone Jack
RGP-TSF-302B1CAT5E RJ45 UTP Keystone Jack
RGP-TSF-302C1CAT5E RJ45 UTP Keystone Jack For Patch Panel
RGP-TSF-302D1CAT6 RJ45 UTP Keystone Jack
RGP-TSF-302D2CAT6 RJ45 UTP Keystone Jack
RGP-TSF-302D3CAT6 RJ45 FTP Keystone Jack

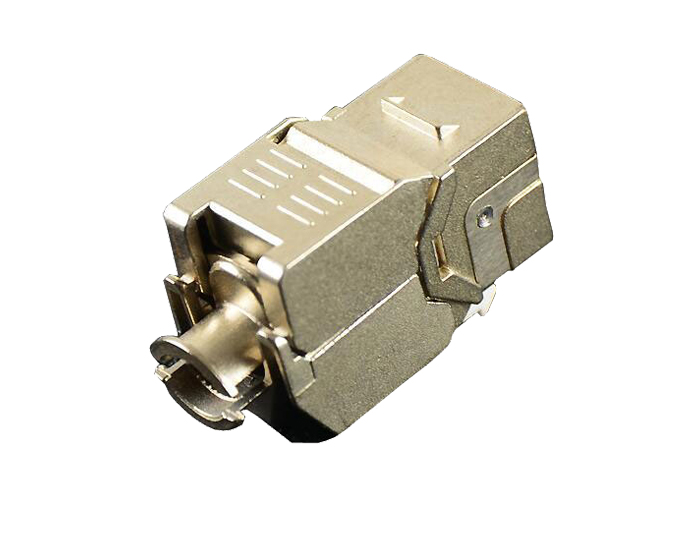

RGP-TSF-302E1CAT6A RJ45 Keystone Jack FTP Toolless


Related Products

Cat5e RJ45 (8P8C) Unshielded Keystone Jack Module TSF-302A1
Cat5e RJ45 (8P8C) Unshielded Keystone Jack Module TSF-302A1

TSF-302A1 Cat5e keystone jacks meet or exceed Category 5e performance in compliance with the ANSI/TIA/EIA 568-C.2 standard.

Cat5e RJ45 (8P8C) Unshielded Keystone Jack TSF-302B1
Cat5e RJ45 (8P8C) Unshielded Keystone Jack TSF-302B1

TSF-302B1 RJ45 Keystone Jack is compatible with 22 or 24 AWG solid cable into Patch Panels, Faceplates, and Surface Mount Boxes, or any other keystone products.

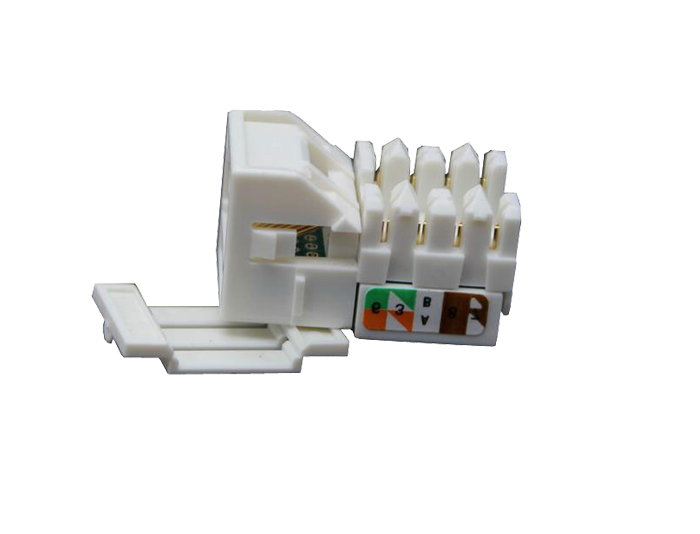

Cat6 RJ45 (8P8C) Unshielded Keystone Jack TSF-302D1
Cat6 RJ45 (8P8C) Unshielded Keystone Jack TSF-302D1

The jacks are usually mounted in wall plates or patch panels. TSB-302D1 Cat6 Keystone Jack easy to snap-in retaining clip ensures a secure connection. The 110-type terminations are color-coded with both T568A and T568B wiring schemes.

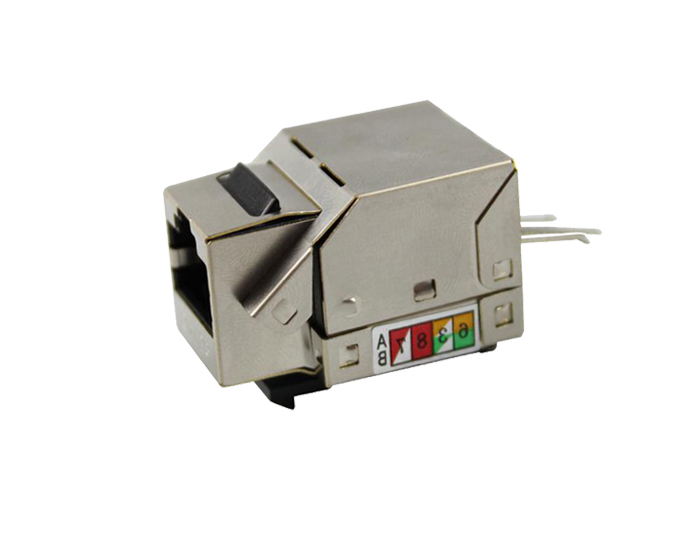

Cat6 RJ45 (8P8C) Shielded Keystone Jack TSF-302D3
