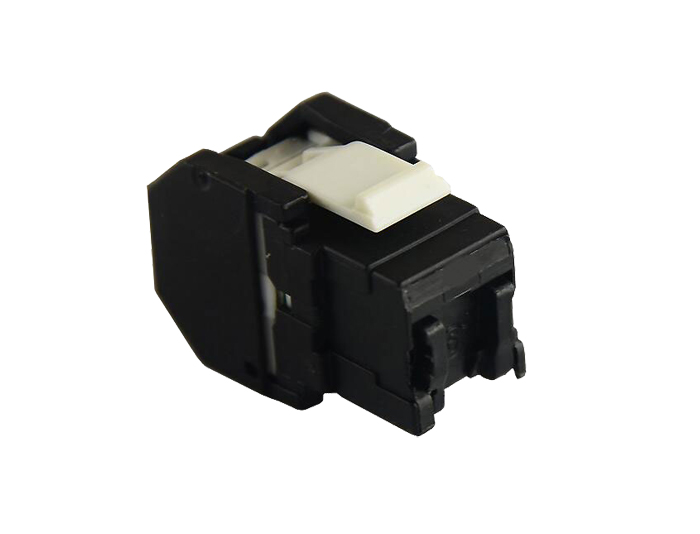

The RJ-45 CAT6 Keystone Jack (8P8C) is a punch-down UTP connector that complies with TIA/EIA-568-C.2 standard. The back of the module is an IDC termination interface offering two wiring schemes: T568A & T568B. The Keystone Jack Cat6 is compatible with 22 or 26 AWG solid cable into Patch Panels, Faceplates, and Surface Mount Boxes or any other keystone products.

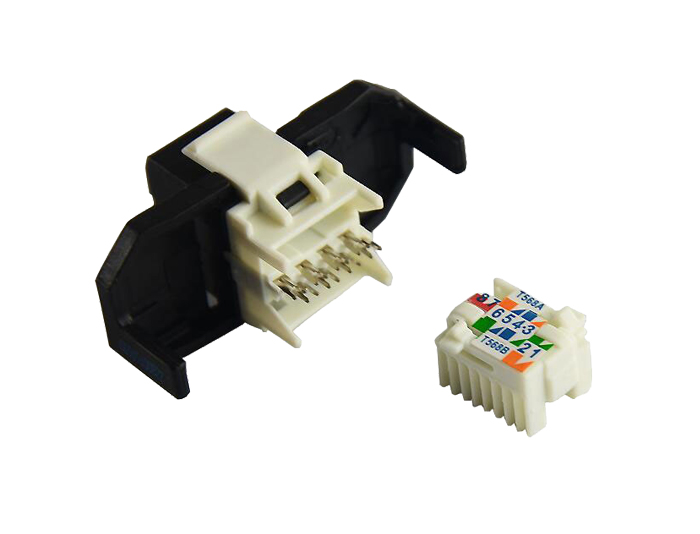

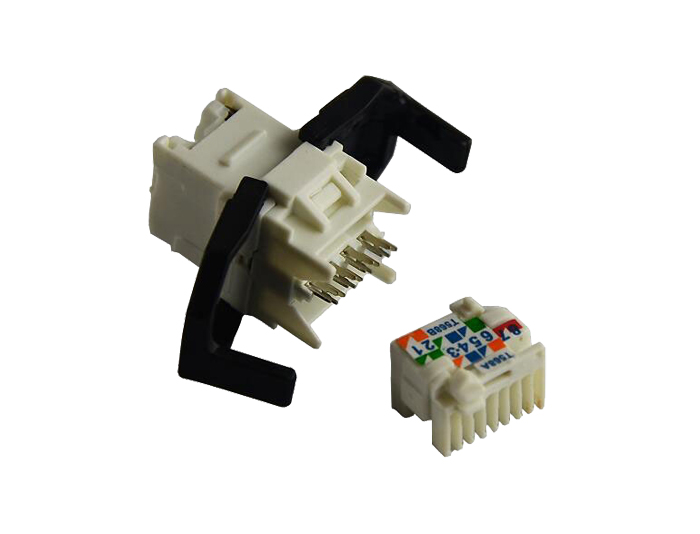

The Cat6 Keystone Jack easy to snap-in retaining clip ensures a secure connection. The 110-type terminations are color-coded with both T568A and T568B wiring schemes. Dual IDC modules accommodate both 110 and Krone impact tools and include dust caps that assist with cable strain relief. Constructed of high-impact, fire-retardant plastic with gold-plated contacts, these keystone jacks meet or exceed Category 6 performance in compliance with the ANSI/TIA/EIA 568-C.2 standard.
CAT6 Keystone Jack provides excellent performance for data networks.
Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.
Backward compatible with all lower rated category components.

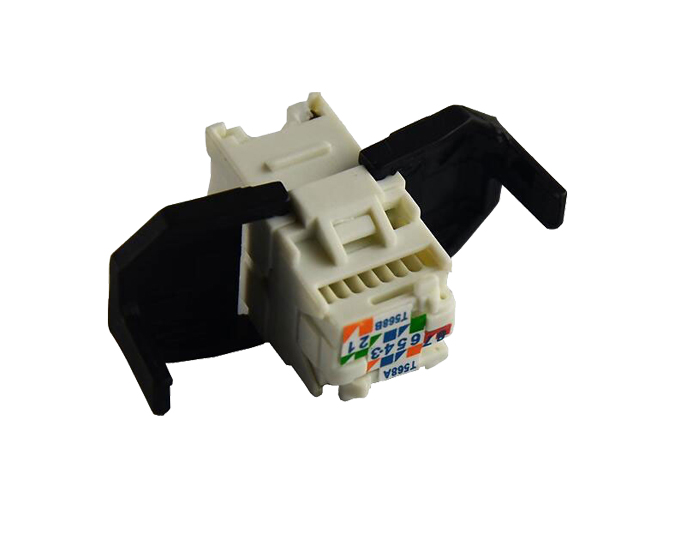

The Modular Jack Color-coded termination for T568A and T568B wiring schemes.
Ideal for a 22-26AWG solid wire.
Clear protective wire cap allowing security during wire management.
Universal IDC Module (Krone or 110) termination interface.
Available in six colors to facilitate network management.
Compatible with Keywerks Patch Panels, Faceplates & Surface Mount, or any other keystone products.
Gold-plated contacts and easy snap-in retaining clip ensure a secure and corrosion-free connection.
Modular Jack for use with Category6 patch cords.
Exceeds ANSI/TIA-568-C requirements for permanent performances.
UL 1863 compliant.
|Current Rating||1.5Amps||Insulation Resistance||500 Megaohm|
|DC Resistance||0.1ohm MAX||Voltage||150 VAC MAX|
|Insertion Life||1500 mating cycles||Plug Retention Force||89N|
|IDC Accept||22-26 AMG Solid Wire||Wire Scheme||T568A / T568B|
|Spring||Phosphor Bronze with gold-painted (6U"~50U") over nickel-painted||IDC Contact||Phosphor Bronze with Tin-painted|
|Plastic||Polycarbonate PC||Jaws||Nylon with 30%reinforcing agent|
|Storage Temperature||-60℃ ~+80℃||Operational Temperature||-10℃ ~+60℃|
|Relative Humidity||Maximum Noncondensing 93%.|
Compatible with keystone jack patch panels.
Compatible with keystone jack wall plates.
Compatible with keystone jack surface mount boxes.
Telecommunication or Equipment Room Inter-connect or cross-connect termination.
