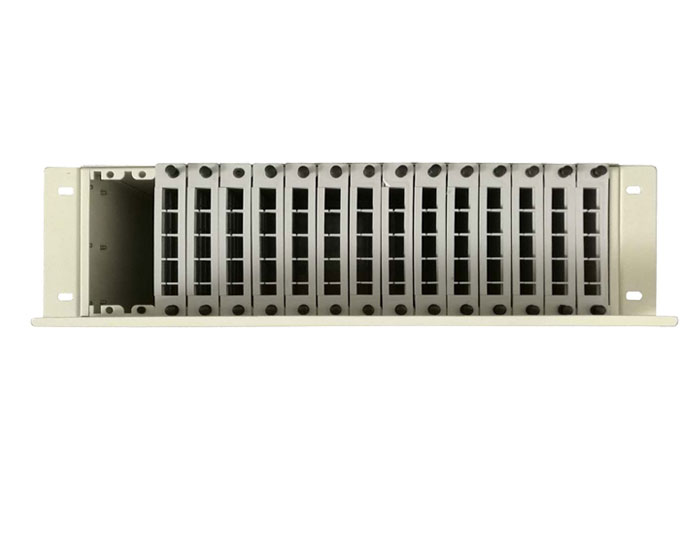

1U Rack Mount PLC Splitter-GPON Splitter TSB-410C1

Publisher: MJADOM

Author: Andy

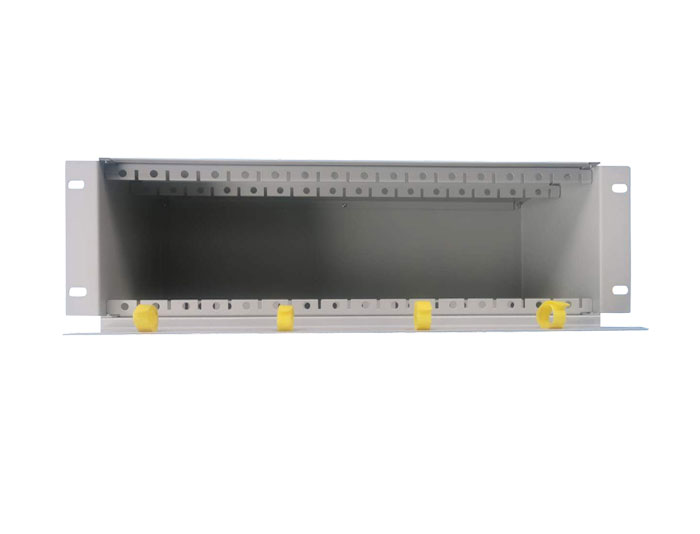

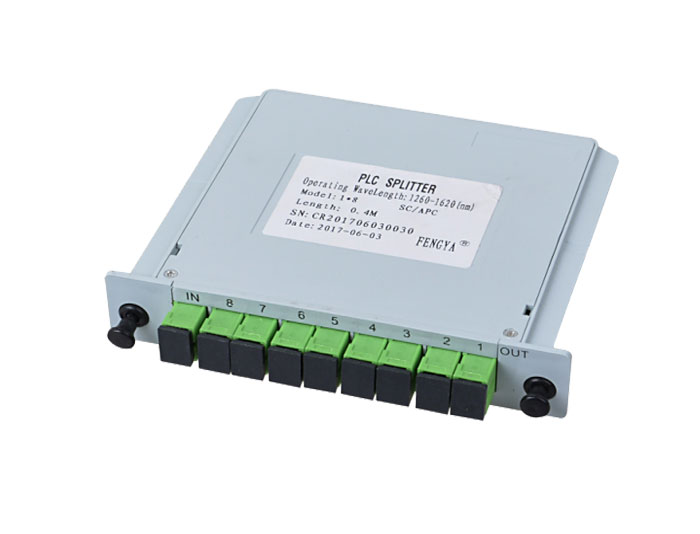

RGP-TSB-410C1 1U Rack Mount PLC Splitter is composed of splitter unit box and splitter. The plate is made of high-quality steel with electrostatic spraying treatment on the surface, It's applicable for the centralized splitting network structure.


SC/LC/FC connections are available, other connectors can be customized.

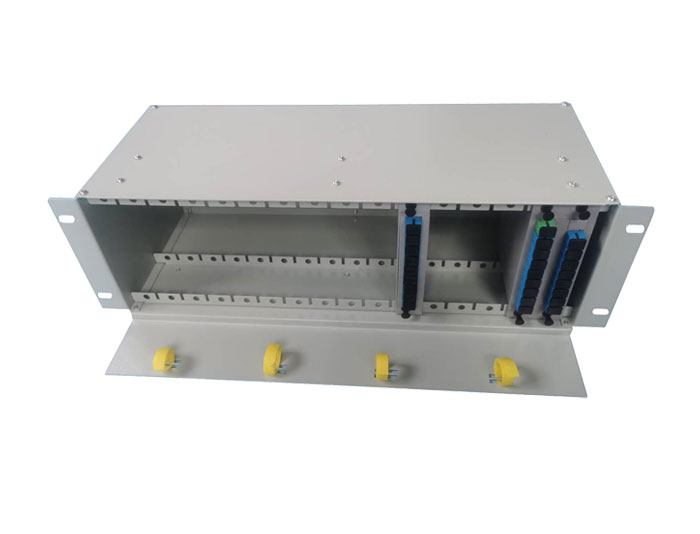

RGP-TSB-410C1 1U Rack Mount PLC Splitter is composed of a splitter unit box and splitter. The plate is made of high-quality steel with electrostatic spraying treatment on the surface, It's applicable for the centralized splitting network structure. It can be installed in 19"standard integrated distribution cabinet, network cabinet with opening rack.



SC/LC/FC connectors are available, other connector can be customized.


MJADOM provides a full range of Fiber Optic Splitter, Buy High-Performance Fiber Optic Splice from a reliable Fiber Optic Supplier-MJADOM.COM.

Feature:

Low Insertion Loss.

Low PDL.

Compact Design.

Good channel-to-channel uniformity.

Wide Operating Wavelength (1260nm-1650nm).

Wide Operating Temperature (-40℃-85℃).

High Reliability and Stability.

Inputs and outputs adopt 900um jacket, each input & output fiber has a numeric identification.

Color according to TIA/EIA 598.


Application:

FTTX Systems.

PON Networks.

CATV Links.


Compliance:

Telcordia GR-1209-CORE-2001.

Telcordia GR-1221-CORE-1999.

RoHS.


Configuration

Table 1 - 1×N PLC Splitter

Parameters1×21×41×81×161×321×64
Operating Wavelength (nm)1260~1650
Fiber TypeG657A1 or customer specified
Length of fibers (inputs and outputs)1 meter or customer specified
Insertion Loss(dB) (P/S Grade)4.07.310.513.717.420.4
Loss Uniformity (dB)≤ 0.4≤ 0.6≤ 1.0≤ 1.2≤ 1.5≤ 2.0
Polarization Dependent Loss(dB)≤ 0.2≤ 0.25≤ 0.25≤ 0.25≤ 0.3≤ 0.35
Return Loss(dB) (P/S Grade)555555555555
Directivity (dB)555555555555
Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
Temperature Stability (-40~85℃)(dB)0.40.40.40.50.50.5
Operating Temperature (℃)-40℃ ~ 85℃
Storage Temperature (℃)-40℃ ~ 85℃
Relative Humidity85% ±3%


Table 2 - 2×N PLC Splitter

Parameters2×42×82×162×322×64
 Operating Wavelength (nm) 1260~16501310 ± 40
1490 ± 10
1550 ± 40
Fiber TypeG657A1 or customer specified
Length of fibers (inputs and outputs) 1 meter or customer specified
Insertion Loss(dB)≤ 7.6≤ 11.0≤ 14.8≤ 17.9≤ 20.1
Loss Uniformity (dB)≤ 0.6≤ 0.8≤ 1.2≤ 1.5≤ 2.0
Polarization Dependent Loss(dB)≤ 0.2≤ 0.2≤ 0.25≤ 0.3≤ 0.35
Return Loss(dB) (P/S Grade)5555555555
Directivity (dB)5555555555
Wavelength Dependent Loss(dB)0.30.30.50.50.5
Temperature Stability (-40~85℃)(dB)0.40.40.50.50.5
Operating Temperature (℃)-40℃ ~ 85℃
Storage Temperature (℃)-40℃ ~ 85℃
Relative Humidity85% ±3%


Order Information:

Split Ratio1x21x41x81x161x321x64
LxWxH (mm)50x7x480x20x6120x40x6160x12x4



Related Products

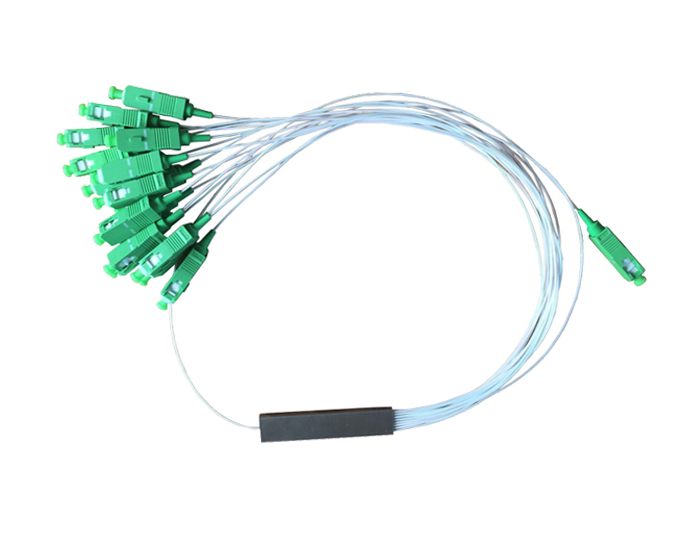

Optical Fiber Splitter-1x16 PLC Splitter-TSB-406D4
