1U Rack Mount Fiber Optic PLC Splitter-GPON Splitter TSB-410B

Publisher: MJADOM

Author: Andy

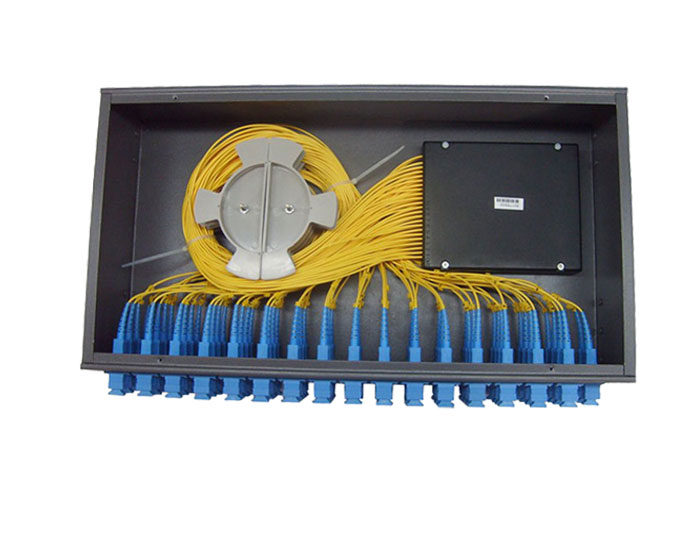

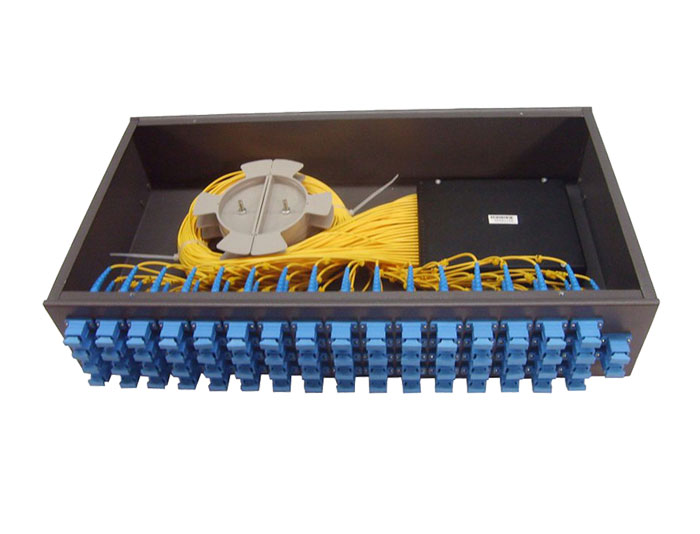

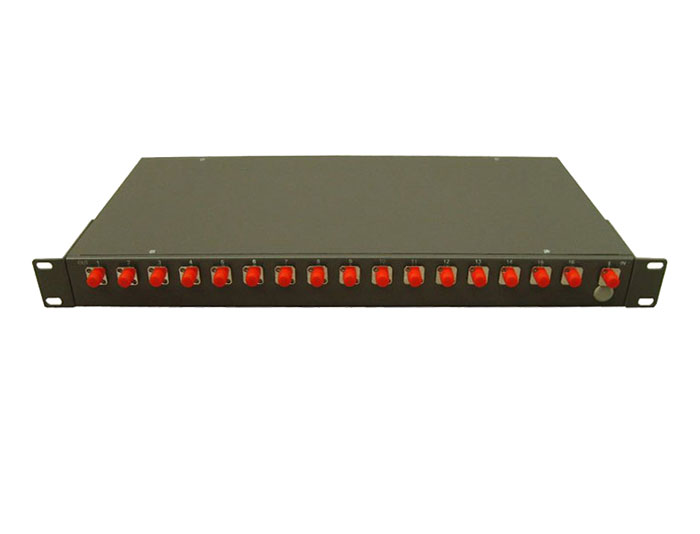

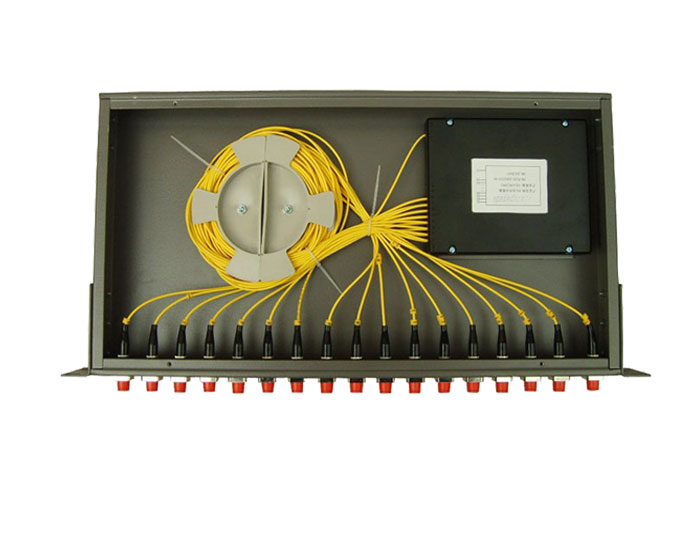

RGP-TSB-410B Rack Mount PLC Splitter is composed of splitter unit box and splitter. The plate is made of high quality steel with electrostatic spraying treatment on the surface, It's applicable for the centralized splitting network structure.

The Rack Mount PLC Splitter is composed of a splitter unit box and splitter. The plate is made of high-quality steel with electrostatic spraying treatment on the surface, It's applicable for the centralized splitting network structure. It can be installed in 19"standard integrated distribution cabinet, network cabinet with opening rack.



SC/LC/FC connectors are available, other connector can be customized.


MJADOM provides a full range of Fiber Optic Splitter, Buy High-Performance Fiber Optic Splice from a reliable Fiber Optic Supplier-MJADOM.COM.


Feature:

Low Insertion loss.

Low PDL.

Compact Design.

Good channel-to-channel uniformity.

Wide Operating Wavelength (1260nm-1650nm).

Wide Operating Temperature (-40℃-85℃).

High Reliability and Stability.

Application:

FTTX Systems.

PON Networks.

CATV Links.


Compliance:

Telcordia GR-1209-CORE-2001.

Telcordia GR-1221-CORE-1999.

RoHS.

Configuration

Table 1 - 1×N PLC Splitter

Parameters1×21×41×81×161×321×64
Operating Wavelength (nm)1260~1650
Fiber TypeG657A1 or customer specified
Insertion Loss(dB) (P/S Grade)3.8/4.07.1/7.310.2/10.513.5/13.717/17.420/20.4
Loss Uniformity (dB)0.40.60.81.21.52.0
Polarization Dependent Loss(dB)0.20.20.20.250.30.35
Return Loss(dB) (P/S Grade)55/5055/5055/5055/5055/5055/50
Directivity (dB)555555555555
Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
Temperature Stability (-40~85℃)(dB)0.40.40.40.50.50.5
Operating Temperature (℃)-40~85
Storage Temperature (℃)-40~85


Order Information:

Split Ratio1x21x41x81x161x321x64
LxWxH (mm)19” 1U (2U/3U ... ... Customized)
