SC APC 1x2 Fiber Spliter-PON Network TSB-406A2

Publisher: MJADOM

Author: Andy

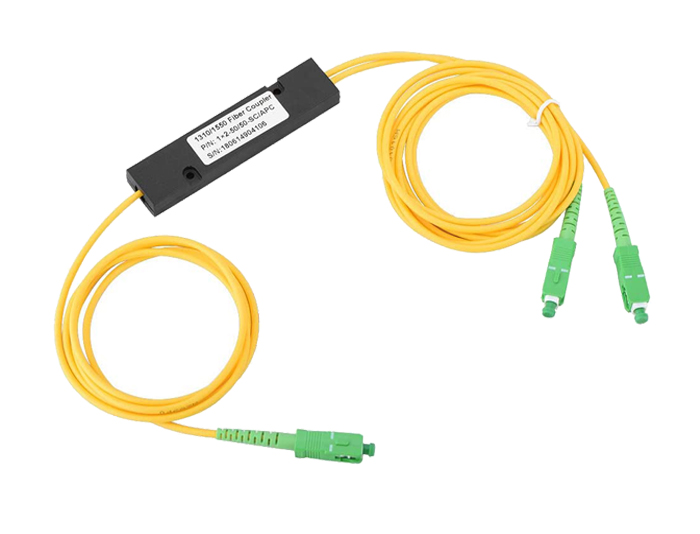

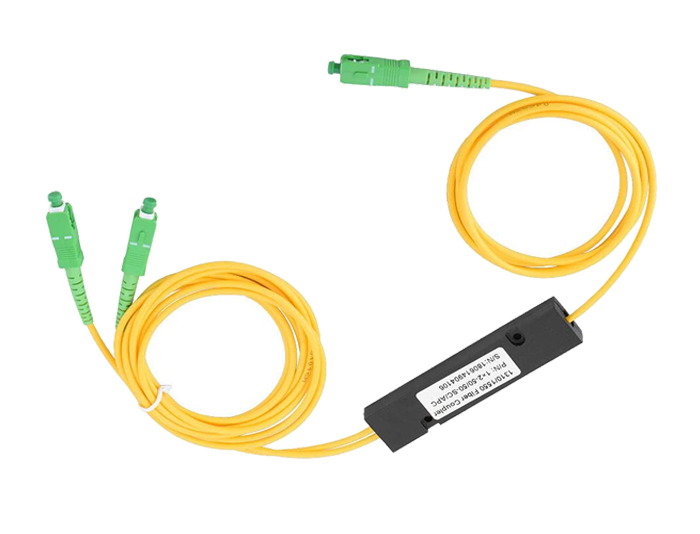

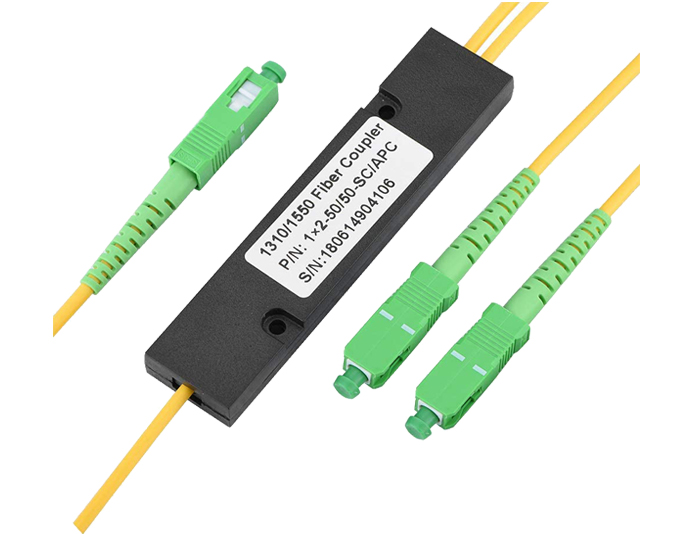

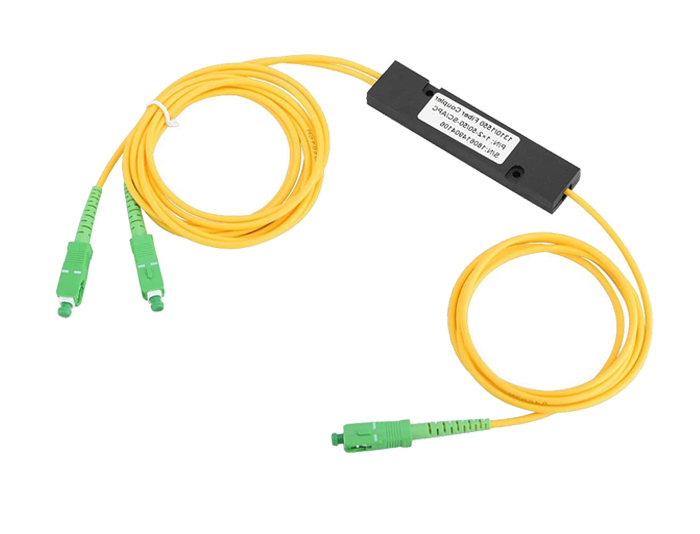

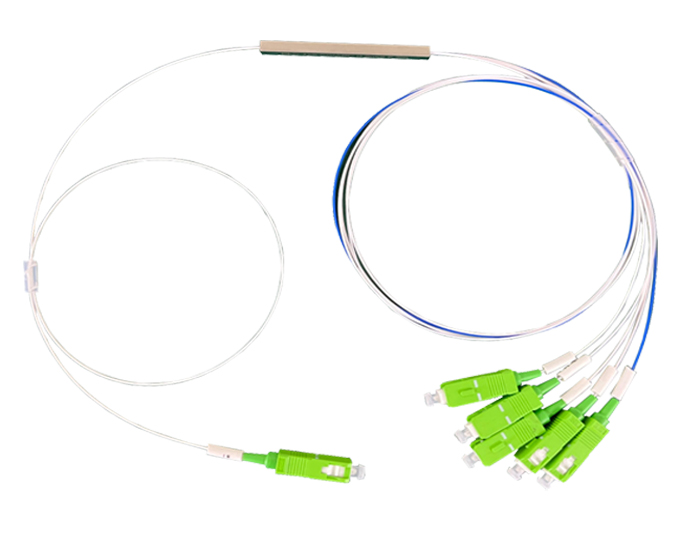

TSB-406A2 1x2 Fiber Splitter also called Optical Splitter or Fiber Optic Splitter features low IL & PDL, high isolation that suits for 1260~1650nm optical fiber signals' splitting and distributing in PON networks. It's mainly used for various connection and distribution boxes or network cabinets.


SC/LC/FC connections are available, other connectors can be customized.


TSB-406A2 1x2 Fiber Splitter also called Optical Splitter or Fiber Optic Splitter features low IL & PDL, high isolation that suits for 1260~1650nm optical fiber signals' splitting and distributing in PON networks. It's mainly used for various connection and distribution boxes or network cabinets and it's an intermediate choice between volume miniaturization and reliable fiber protection.


SC/LC/FC connections are available, other connectors can be customized.

Feature:

Low Insertion loss.

Low PDL.

Compact Design.

Good channel-to-channel uniformity.

Wide Operating Wavelength (1260nm-1650nm).

Wide Operating Temperature (-40℃-85℃).

High Reliability and Stability.

Inputs and outputs adopt 900um jacket, each input & output fiber has a numeric identification.

Color according to TIA/EIA 598.


Application:

FTTX Systems.

PON Networks.

CATV Links.


Compliance:

Telcordia GR-1209-CORE-2001.

Telcordia GR-1221-CORE-1999.

RoHS.


Configuration

Table 1 - 1×N PLC Splitter

Parameters1×21×41×81×161×321×64
Operating Wavelength (nm)1260~1650
Fiber TypeG657A1 or customer specified
Length of fibers (inputs and outputs)1 meter or customer specified
Insertion Loss(dB) (P/S Grade)4.07.310.513.717.420.4
Loss Uniformity (dB)≤ 0.4≤ 0.6≤ 1.0≤ 1.2≤ 1.5≤ 2.0
Polarization Dependent Loss(dB)≤ 0.2≤ 0.25≤ 0.25≤ 0.25≤ 0.3≤ 0.35
Return Loss(dB) (P/S Grade)555555555555
Directivity (dB)555555555555
Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
Temperature Stability (-40~85℃)(dB)0.40.40.40.50.50.5
Operating Temperature (℃)-40℃ ~ 85℃
Storage Temperature (℃)-40℃ ~ 85℃
Relative Humidity85% ±3%


Table 2 - 2×N PLC Splitter

Parameters2×42×82×162×322×64
 Operating Wavelength (nm) 1260~16501310 ± 40
1490 ± 10
1550 ± 40
Fiber TypeG657A1 or customer specified
Length of fibers (inputs and outputs) 1 meter or customer specified
Insertion Loss(dB)≤ 7.6≤ 11.0≤ 14.8≤ 17.9≤ 20.1
Loss Uniformity (dB)≤ 0.6≤ 0.8≤ 1.2≤ 1.5≤ 2.0
Polarization Dependent Loss(dB)≤ 0.2≤ 0.2≤ 0.25≤ 0.3≤ 0.35
Return Loss(dB) (P/S Grade)5555555555
Directivity (dB)5555555555
Wavelength Dependent Loss(dB)0.30.30.50.50.5
Temperature Stability (-40~85℃)(dB)0.40.40.50.50.5
Operating Temperature (℃)-40℃ ~ 85℃
Storage Temperature (℃)-40℃ ~ 85℃
Relative Humidity85% ±3%


Order Information:

Split Ratio1x21x41x81x161x321x64
LxWxH (mm)50x7x480x20x6120x40x6160x12x4
