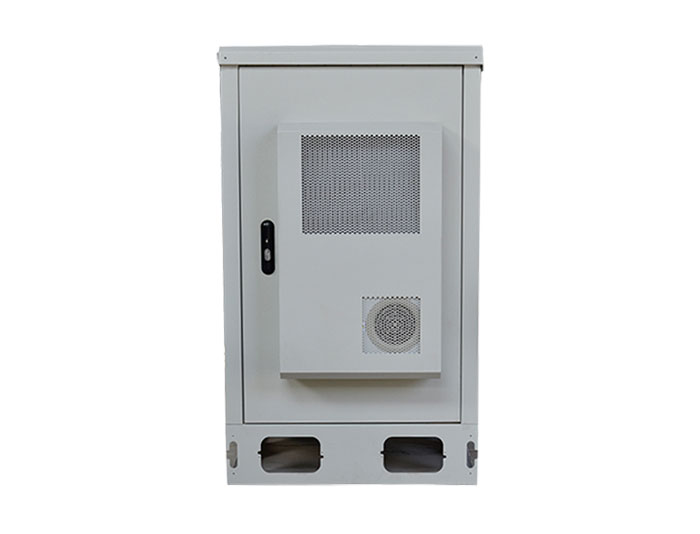

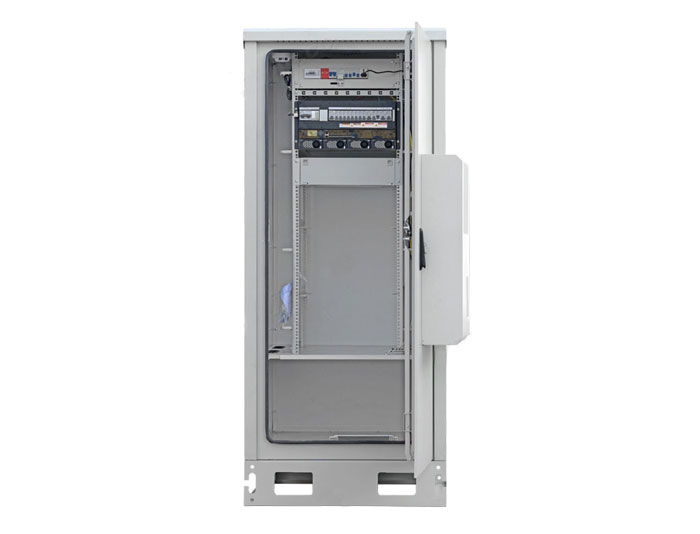

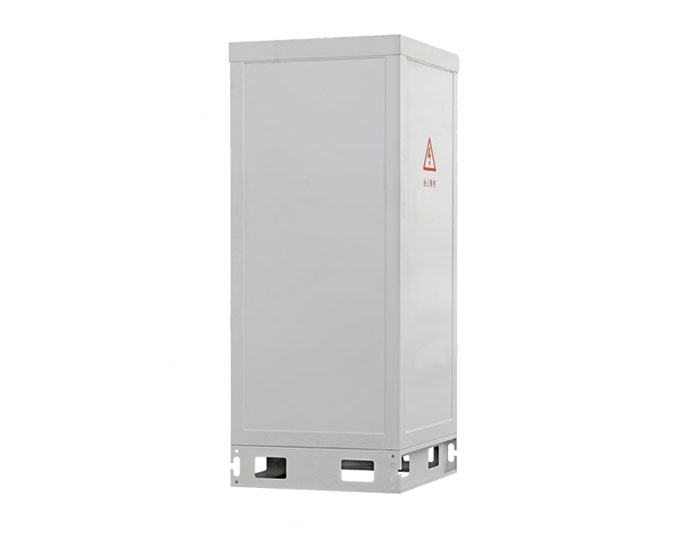

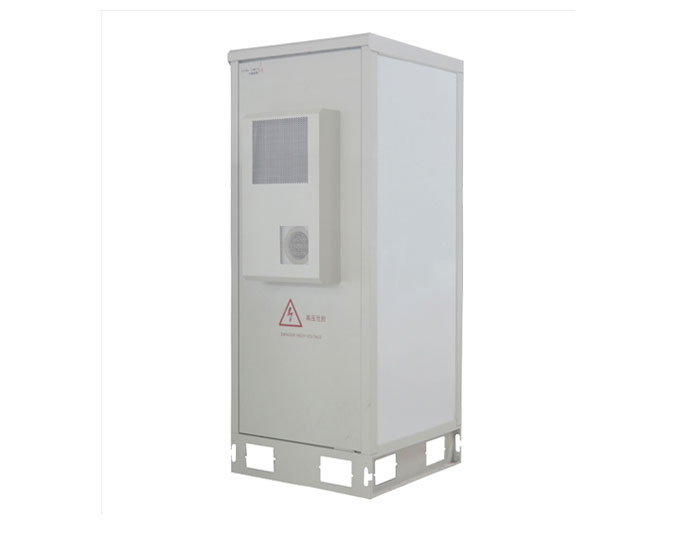

42U IP55 Outdoor Rack Cabinet With Air Heat Exchanger MTC42U-DH

Publisher: MJADOM

Author: Andy

RGP-MTC42U-DH 42U IP55 Outdoor Rack Cabinet With Air Heat Exchanger also called Integrated Cabinet or Power Supply Enclosures or Outdoor Telecom Power Cabinet, It's a new generation telecom energy solution which realized site power to be a network element to ensure maximum site-level cost-saving, easy O&M, and seamless evolution in future. The outdoor integrated power supply cabinet provides a complete set of solutions for the outdoor working environment and safety management of the communication base station. It integrates the functions of system power supply, telecom equipment, battery, environmental monitoring, temperature control. MJADOM offers outdoor rack cabinet that provides AC/DC outdoor power supply system, power distribution, macrocell site, and microcell site use and environmental monitoring for IT devices.

RGP-MTC42U-DH 42U IP55 Outdoor Rack Cabinet With Air Heat Exchanger also called Integrated Cabinet or Power Supply Enclosures or IP55 Rack Cabinet or IP55 Outdoor Cabinet, It's a new generation telecom energy solution which realized site power to be a network element to ensure maximum site-level cost-saving, easy O&M, and seamless evolution in future. The outdoor integrated power supply cabinet provides a complete set of solutions for the outdoor working environment and safety management of the communication base station. It integrates the functions of system power supply, telecom equipment, battery, environmental monitoring, temperature control.


The cabinet is designed with the galvanized column, the sandwich panel, European standard lock, multiple anti-theft components, and plentiful optional thermal control devices for the equipment compartment and battery compartment to provide the safe and suitable working environment.


MJADOM offers a broad portfolio of cabinets that provide physical bearer, power distribution, macrocell site, and microcell site use and environmental monitoring for IT devices. Buy high-performance Outdoor Enclosures from a reliable fiber optic supplier at MJADOM.COM


Feature:
Small and Energy-saving.

Standardized design, flexible modification.

High-reliability cooling devices with -48V DC input.

High heat isolation performance leads to OPEX saving.

Super anti-theft, European standard lock, and enhanced fence.

Fast deployment, assembled in 30 minutes.

The compact figure, easy land acquisition.

Protection class: IP55.

RoHS compliance.


Application:

Power cabinet.

Outdoor Transmission node cabinet.

Data communication cabinet.

Outdoor wireless coverage site.

Configuration

Specification:

ModelItemSpecification
  Cabinet       CabinetBase Specification
Internal Dimension(W*D*H)800mm(W)x800mm(D)x2050mm(H)
External Dimension(W*D*H)900mm(W)x900mm(D)x2100mm(H)
Base Dimension(W*D*H)900mm(W)x900mm(D)x200mm(H)
CompositionBody+Door+Base+Top Cover+Column+Front Doors+Sandwich Panel+LED lamp+Door Switch+Copper ground bar+vertical organizers+2 pcs of DCDU-12B+190W/K Heat Exchanger
Net Weight of the Cabinet< 220 KGS
Maximum Space42U
Column MaterialGalvanized Steel Sheet
Panel MaterialSandwich panel: prepared galvanized steel sheet+EPS/PU
Panel Thickness45mm
Door LockThree-points anti-theft lock. European standard DIN8152 lock.
Thermal Insulation PerformanceThermal conductivity <0.472W / (M2.K)
Protection LevelIP55 (EN 60529)
Cable Hole on Bottom1/2 "* 6 + 3/4" * 4 + 1 "* 4, located on the sides, include plastic plug for all of them.
ShippingIntegrated equipment shipping, spare parts shipping
Storage Temperature-40℃ ~ +70℃
Relative Humidity5%~100%
 CoolingEquipment CoolingHeat ExchangerHeat ExchangerHeat Exchanger
Input Voltage-48V-48V-48V
Cooling capacity80W/K150W/K190W/K
 EnvironmentOperating temperature-40℃~+55℃(heat Exchanger )
Storage temperature-40℃ ~ +70℃
Operation Humidity5%~100%
   OthersLighting-48V LED
Sensors(optional)door switch (one switch, frontal door); smoke, water, temperature & humidity (optional)
Distribution UnitsDCDU-12B (two units)
Screws, Washers, Nuts, etc.Stainless Steel, High Industrial Grade
Internal Ground BarCopper ground bar, 10 holes (one unit)
Vertical organizersRing-type (sixteen units), 4 in each corner of the internal rack
Environment monitorEMUA (optional)
Cable distribution unitDDF/ODF(optional)

   Configuration :

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
 RGP-MTC42U-DH

42U IP55 Outdoor Cabinet

With Air Heat Exchanger

900mmx900mmx2100 mm1 PCS

1/2 "x 6 + 3/4" x4 + 1 "x4, located on the sides,

include plastic plug for all of them.

 < 220 KGS950mmx950mmx2150mm


Related Products

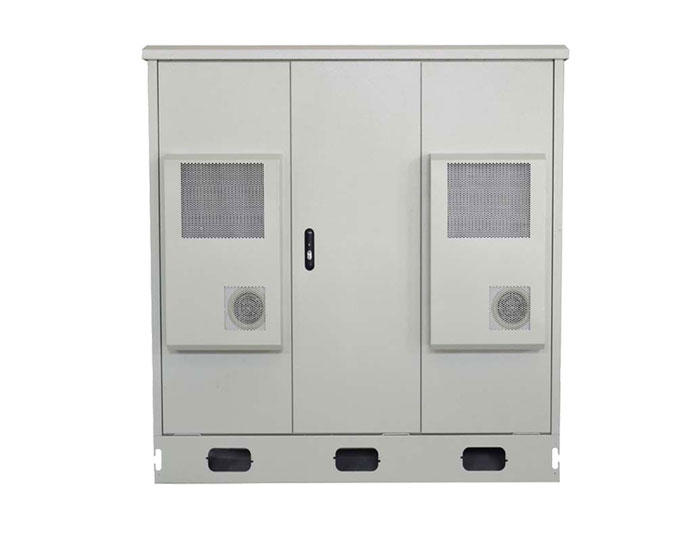

22U IP55 Outdoor Enclosures With Air Heat Exchanger MTC22U-DH
22U IP55 Outdoor Enclosures With Air Heat Exchanger MTC22U-DH

RGP-MTC22U-DH The outdoor integrated power supply cabinet provides a complete set of solutions for the outdoor working environment and safety management of the communication base station. It integrates the functions of system power supply, telecom equipment, battery, environmental monitoring, temperature control.

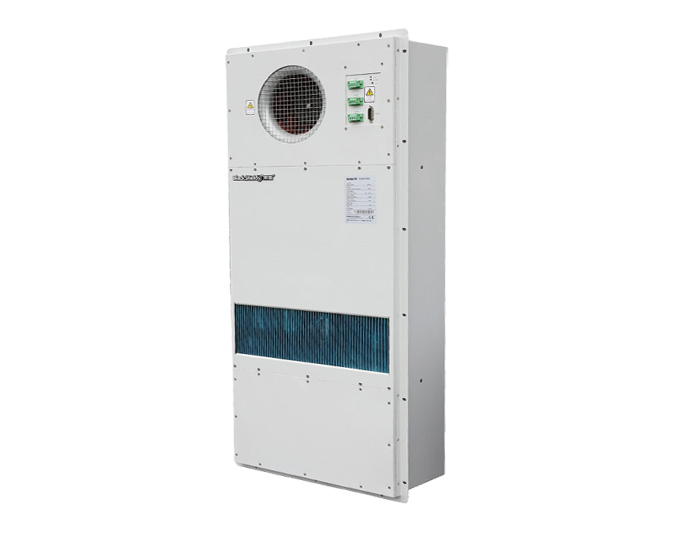

190W/K Air To Air Heat Exchanger For Telecom Outdoor Cabinet Cooling RGP-TSQ-190W-K
190W/K Air To Air Heat Exchanger For Telecom Outdoor Cabinet Cooling RGP-TSQ-190W-K

TSQ-190W/K Heat Exchanger depends on the temperature difference between indoor and outdoor to realize heat exchanging through the heat exchanger core. It specifically designed for the removal of heat from cabinets containing temperature-sensitive electrical, or telecommunications equipment.

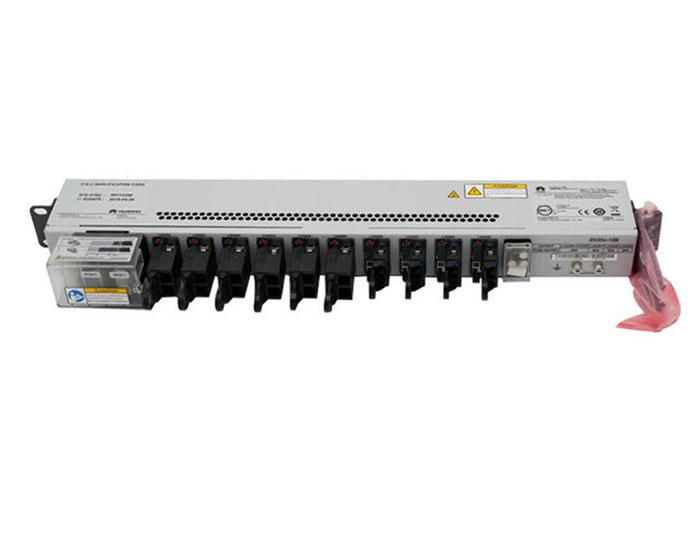

DC Direct Current Power Distribution Unit DCDU-12B
DC Direct Current Power Distribution Unit DCDU-12B

Direct Current Distribution Unit-12B (DCDU-12B) Supply provides stable power distribution for the TDS-LTE Base Station System. It is the DC distribution unit or device. It serves for distributing the DC power needed for different power needed devices like RRU, EMUB, BBU, and many more.

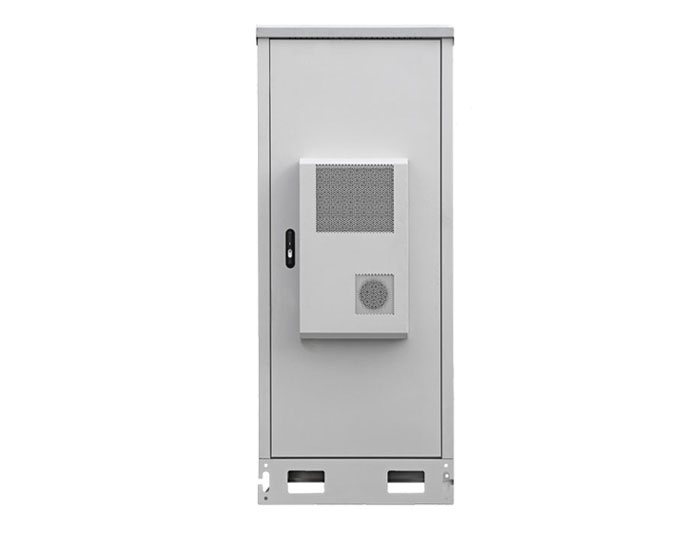

42U IP55 Outdoor Telecom Cabinet Integrated Cabinet With Air Heat Exchanger MTC42U-DK
