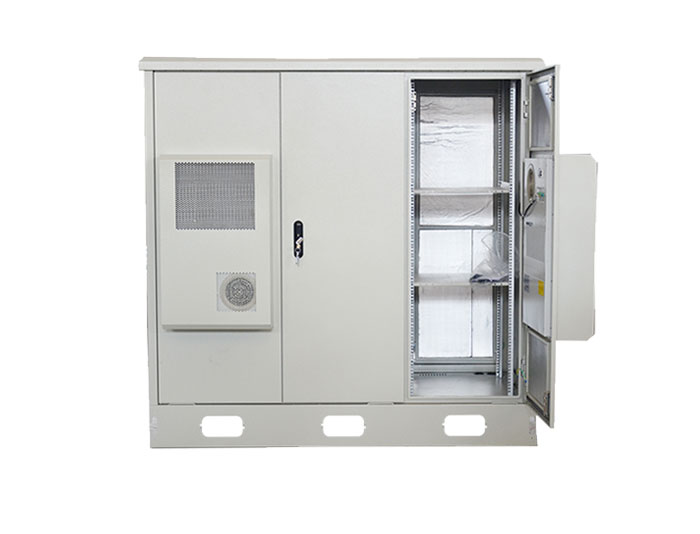

42U IP55 Outdoor Telecom Cabinet Integrated Cabinet With Air Heat Exchanger MTC42U-DK

Publisher: MJADOM

Author: Andy

RGP-MTC42U-DK The 42U IP55 Outdoor Telecom Cabinet also called Integrated Cabinet or Outdoor Electrical Enclosures or Electrical Enclosures Cabinet or Power Supply Enclosure, It's a new generation telecom energy solution that realized site power to be a network element to ensure maximum site-level cost-saving, easy O&M, and seamless evolution in future. The outdoor integrated power supply cabinet provides a complete set of solutions for the outdoor working environment and safety management of the communication base station. It integrates the functions of system power supply, telecom equipment, battery, environmental monitoring, temperature control. MJADOM offers IP55 Outdoor Telecom Cabinet with 190 W/K Heat Exchanger that can provide physical bearer, AC/DC power distribution, and environmental monitoring for IT devices.

RGP-MTC42U-DK The 42U IP55 Outdoor Telecom Cabinet also called Outdoor Enclosures or Outdoor Telecom Power Cabinet or Outdoor Network Enclosures, It's a new generation telecom energy solution which realized site power to be a network element to ensure maximum site-level cost-saving, easy O&M, and seamless evolution in future. The outdoor integrated power supply cabinet provides a complete set of solutions for the outdoor working environment and safety management of the communication base station. It integrates the functions of system power supply, telecom equipment, battery, environmental monitoring, temperature control.


The cabinet is designed with the galvanized column, the sandwich panel, European standard lock, multiple anti-theft components, and plentiful optional thermal control devices for the equipment compartment and battery compartment to provide the safe and suitable working environment.


MJADOM offers a broad portfolio of cabinets that provide physical bearer, power distribution, macrocell site, and microcell site use and environmental monitoring for IT devices. Buy high-performance Outdoor Enclosures from a reliable fiber optic supplier at MJADOM.COM


Feature:
Small and Energy-saving.

Standardized design, flexible modification.

High-reliability cooling devices with -48V DC input.

High heat isolation performance leads to OPEX saving.

Super anti-theft, European standard lock, and enhanced fence.

Fast deployment, assembled in 30 minutes.

The compact figure, easy land acquisition.

Protection class: IP55.

RoHS compliance.



Application:

Power cabinet.

Outdoor Transmission node cabinet.

Data communication cabinet.

Outdoor wireless coverage site.

Configuration

Specification:

ModelItemSpecification
  Cabinet       CabinetBase Specification
Internal Dimension(W*D*H)700mm(W)x700mm(D)x1650mm(H)
External Dimension(W*D*H)800mm(W)x1800mm(D)x1800mm(H)
Base Dimension(W*D*H)800mm(W)x800mm(D)x200mm(H)
CompositionBody+Door+Base+Top Cover+Column+Front Doors+Sandwich Panel+LED lamp+Door Switch+Copper ground bar+vertical organizers+2 pcs of DCDU-12B+190W/K Heat Exchanger
Net Weight of the Cabinet< 220 KGS
Maximum Space42U
Column MaterialGalvanized Steel Sheet
Panel MaterialSandwich panel: prepared galvanized steel sheet+EPS/PU
Panel Thickness45mm
Door LockThree-points anti-theft lock. European standard DIN8152 lock.
Thermal Insulation PerformanceThermal conductivity <0.472W / (M2.K)
Protection LevelIP55 (EN 60529)
Cable Hole on Bottom1/2 "* 6 + 3/4" * 4 + 1 "* 4, located on the sides, include plastic plug for all of them.
ShippingIntegrated equipment shipping, spare parts shipping
Storage Temperature-40℃ ~ +70℃
Relative Humidity5%~100%
 CoolingEquipment CoolingHeat ExchangerHeat ExchangerHeat Exchanger
Input Voltage-48V-48V-48V
Cooling capacity80W/K150W/K190W/K
 EnvironmentOperating temperature-40℃~+55℃(heat Exchanger )
Storage temperature-40℃ ~ +70℃
Operation Humidity5%~100%
   OthersLighting-48V LED
Sensors(optional)door switch (one switch, frontal door); smoke, water, temperature & humidity (optional)
Distribution UnitsDCDU-12B (two units)
Screws, Washers, Nuts, etc.Stainless Steel, High Industrial Grade
Internal Ground BarCopper ground bar, 10 holes (one unit)
Vertical organizersRing-type (sixteen units), 4 in each corner of the internal rack
Environment monitorEMUA (optional)
Cable distribution unitDDF/ODF(optional)

   Configuration :

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
 RGP-MTC42U-DK

42U IP55 Outdoor Cabinet

With Air Heat Exchanger

800mmx1800mmx1800 mm1 PCS

1/2 " x6 + 3/4" x4 + 1 "x4, located on the sides,

include plastic plug for all of them.

 < 600 KGS850mmx1850mmx1850mm
