24 Ports Cat6A 1U Unshielded Patch Panels TSF-303A2

Publisher: MJADOM

Author: Andy

The Category 6A (CAT6A) 24 Port FTP Shielded Patch Panel also called Patch Panel Cat6A or Network Patch Panel, It exceeds TIA's CAT6A performance standards. The Patch Panel CAT6A is designed with rear 110 IDC's for quick and easy punch-down termination.

Description:

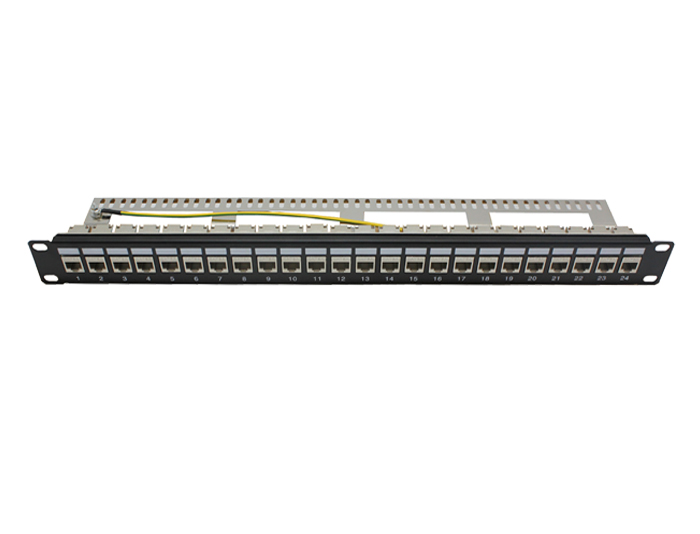

The Category 6A (CAT6A) 24 Port FTP Shielded Patch Panel exceeds TIA's CAT6A performance standards. The Patch Panel CAT6A is designed with rear 110 IDC's for quick and easy punch-down termination. It also comes integrated with a universal label for either 568-A or B wiring schemes.

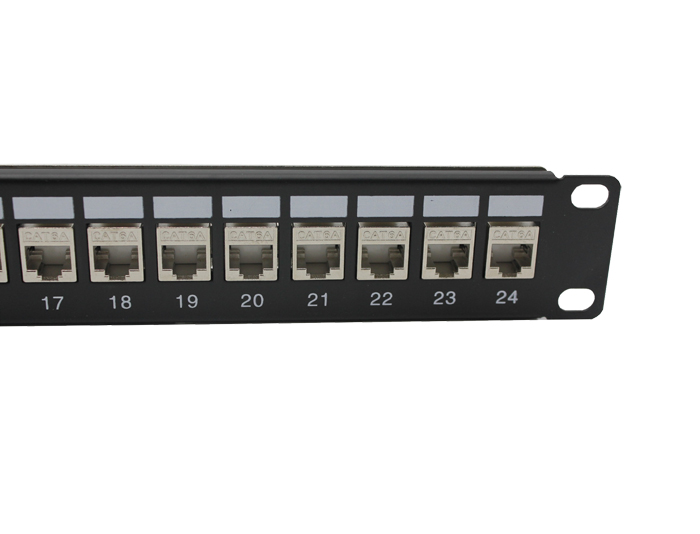

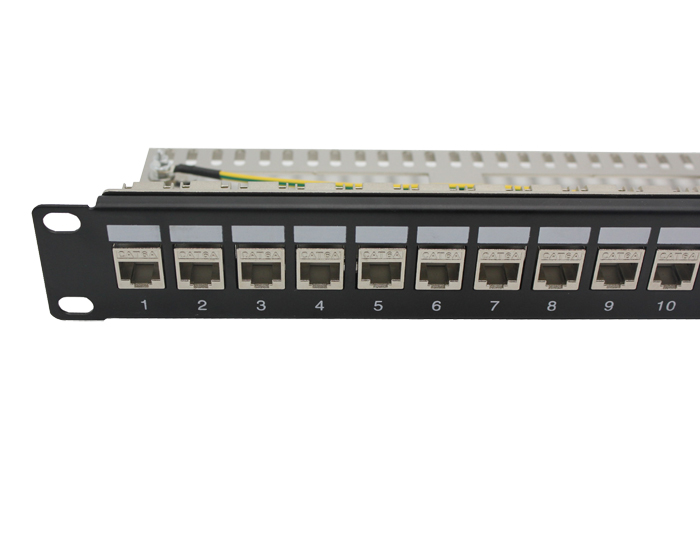

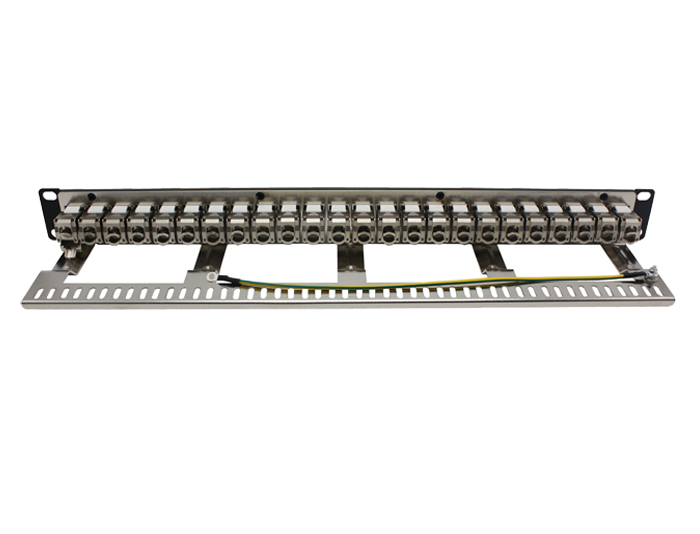

The Cat6A Ethernet patch panel is designed for use in 19” racks and ideal for 10GBase-T Ethernet applications. It manages and organizes Cat6a input and output cable connections in high-density Ethernet network. The Patch Panel 24 Port CAT6A has clear numbering on the front and back of the network patch panel enables quick and easy identification of cable runs, and the rear cable management bar keeps Ethernet cables neat and tidy.

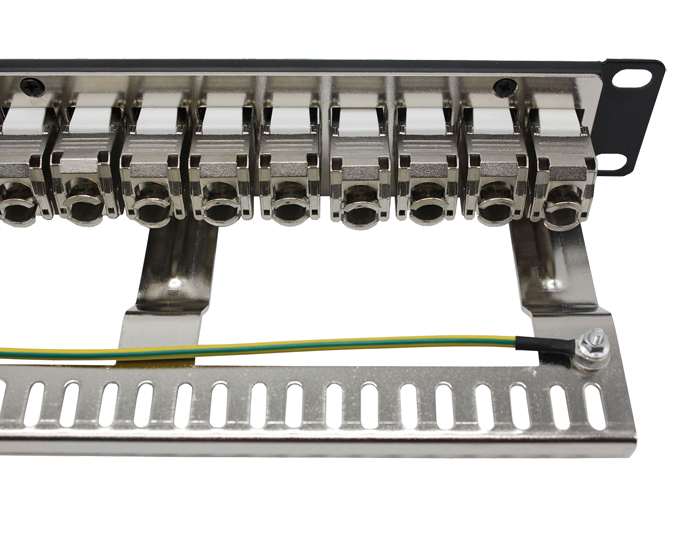

All keystone Jacks in the panel are commonly linked through the panel and can be grounded to the rack using the earth wire provided. When connected Cat6a FTP Modules and Cable, the panel 100% comply with Category 6A specifications(TIA 568-C.2 and ISO/IEC 11801).


Features:

Rack-mounted CAT 6A component-rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth.

CAT6A shielded connectors provide excellent performance for data networks.

Designed for use in 19"racks and ideal for 10GBase-T Ethernet applications

Enhanced crosstalk cancellation reduces return loss.

Exceeds ANSI/TIA-568 Category 6A connecting hardware requirements.

Universal IDC Module (Krone or 110) termination interface

Includes both TIA-568A and TIA-568B color wiring diagrams.

Ideal for a 22-26AWG solid wire.

Clear protective wire cap allowing security during wire management.

Universal IDC Module (Krone or 110) termination interface

Backward compatible with all lower rated category components.

1U rack mount space (RMS).

Exceeds ANSI/TIA-568-B.2-1 and ISO/IEC 11801 Standards

UL listed.


Product Details:

CategoryCat6APoE StandardIEEE 802.3af/at
Ports24 PortsRack Space1U
Connector TypeRJ-45 (8P8C)Connector GenderMale-to-Male
Shielding TypeFTP ShieldedWiring SchemeT568A/T568B
Electrical Details:
Current Rating1.5AmpsInsulation Resistance500 Megaohm
DC Resistance0.1ohm MAXVoltage150 VAC MAX
Insertion Life1500 mating cyclesPlug Retention Force89N
IDC Accept22-26 AMG Solid WireWire SchemeT568A / T568B
Material:
Panel1.5mm thickness metallic panelIDC ContactPhosphor Bronze with Tin-painted
SpringPhosphor Bronze with gold-painted(6U"~50U") over nickel paintedShieldZinc Alloy
Environmental Conditions:
Storage Temperature-60℃ ~+80℃Operational Temperature-10℃ ~+60℃
Relative HumidityMaximum Noncondensing 93%.


Application:

10/100/1000 Ethernet connectivity.

Data applications (19" Rack & Cabinet).

Private/enterprise networks.

T1/DDS TDM connectivity and patching.


Configuration

Order Information:

Model No.Product Description
RGP-TSF-303A21U 24 Port Cat6A FTP Shielded Patch Panel
RGP-TSF-303B21U 24 Port Cat6 UTP Unshielded Patch Panel
RGP-TSF-303C21U 48 Port Cat6 UTP Unshielded Patch Panel
RGP-TSF-303F21U 12 Port Cat6 UTP Unshielded Patch Panel In Wall
RGP-TSF-303H21U 24 Ports Cat6 UTP Unshielded Feed-Through Patch Panel
RGP-TSF-303J21U 24 Port Cat6 FTP Shielded Patch Panel
