12 Ports Cat6 Unshielded Patch Panel Wall Mount TSF-302F2

Publisher: MJADOM

Author: Andy

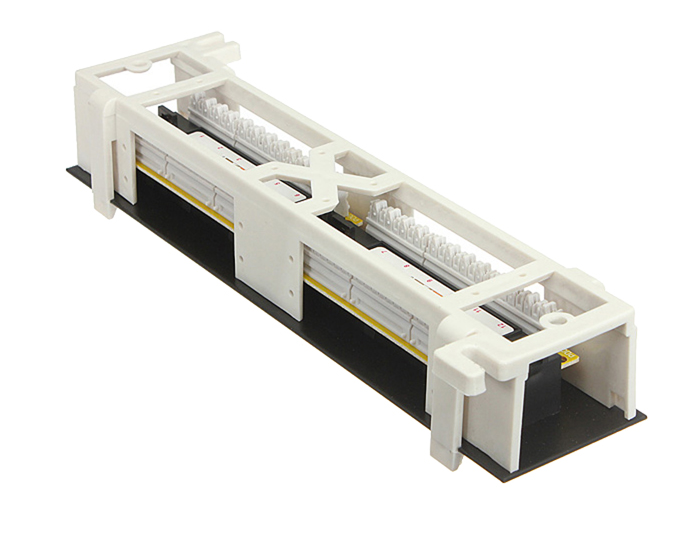

The CAT6 12 Port UTP Unshielded Patch Panel also called Patch Panel Wall Mount or Patch Panel in Wall or In Wall Patch Panel exceeds TIA's CAT6 performance standards. The Patch Panel Wall Mount is designed with rear 110 IDC's for quick and easy punch-down termination.

Description:

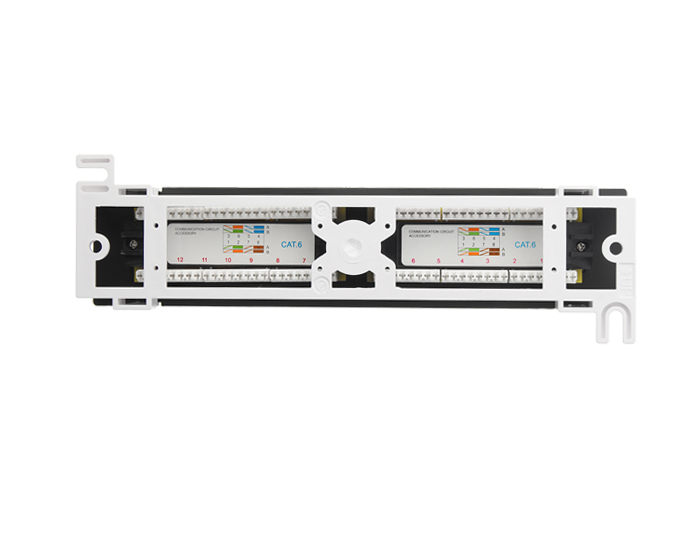

The CAT6 12 Port UTP Unshielded Patch Panel also called Patch Panel Wall Mount or Patch Panel in Wall or In Wall Patch Panel exceeds TIA's CAT6 performance standards. The Patch Panel Wall Mount is designed with rear 110 IDC's for quick and easy punch-down termination. Patch Panel Cat6 comes integrated with a universal label for either 568-A or B wiring schemes.

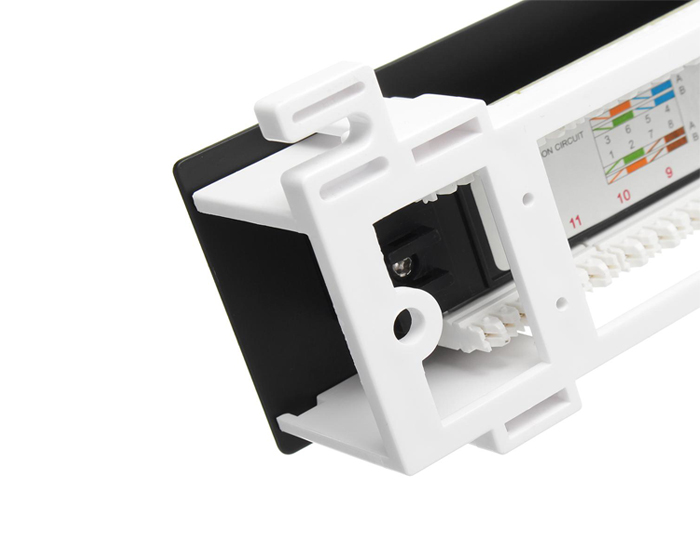

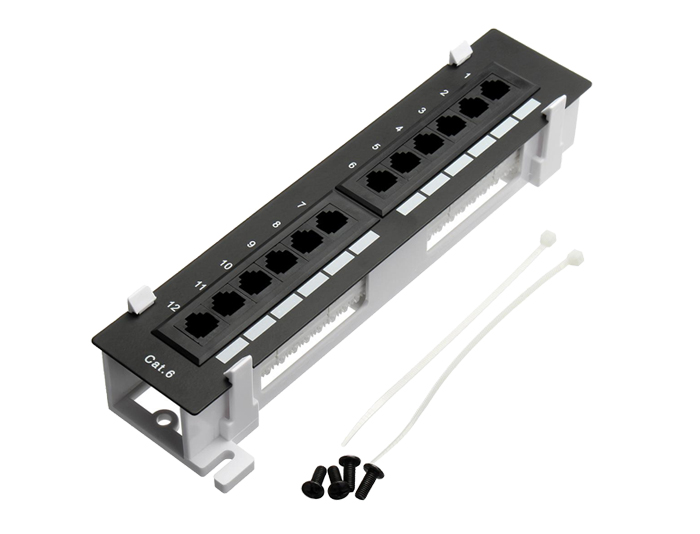

The Cat6 Patch Panel In Wall is designed for wall mount and ideal for 10/100/1000Base-T Ethernet applications. It manages and organizes Cat6 input and output cable connections in high-density Ethernet network. The In Wall Patch Panel CAT6 has clear numbering on the front and back of the network patch panel enables quick and easy identification of cable runs, and the rear cable management bar keeps Ethernet cables neat and tidy. All keystone Jacks in the panel are commonly linked through the panel, The 12 Port Patch Panel comply with Category 6 specifications(TIA 568-C.2 and ISO/IEC 11801).


MJADOM offers a full range of Patch Panels including in CAT5E, CAT6, CAT6A, CAT7, Buy Patch Panels (Shielded & Unshielded, 12 Port, 24 Port, 48 Port, 96 Port) For Copper Ethernet Network at MJADOM.


Features:

Rack-mounted CAT6 component-rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth.

CAT6 Patch Panel Keystone provides excellent performance for data networks.

Keystone Patch Panel designed for use in 19” racks and ideal for 10/100/1000Base-T applications.

Patch Panel RJ45 Enhanced crosstalk cancellation reduces return loss.

Exceeds ANSI/TIA-568 Category 6 connecting hardware requirements.

Universal IDC Module (Krone or 110) termination interface

Includes both TIA-568A and TIA-568B color wiring diagrams.

Ideal for a 22-26AWG solid wire.

Clear protective wire cap allowing security during wire management.

Universal IDC Module (Krone or 110) termination interface

Backwards compatible with all lower rated category components.

1U Patch Panel / 1U rack mount space (RMS).

Exceeds ANSI/TIA-568-B.2-1 and ISO/IEC 11801 Standards

UL listed.


Product Details:

CategoryCat6PoE StandardIEEE 802.3af/at
Ports12 PortsRack Space1U
Connector TypeRJ-45 (8P8C)Connector GenderMale-to-Male
Shielding TypeUTP UnshieldedWiring SchemeT568A/T568B
Electrical Details:
Current Rating1.5AmpsInsulation Resistance500 Megaohm
DC Resistance0.1ohm MAXVoltage150 VAC MAX
Insertion Life1500 mating cyclesPlug Retention Force89N
IDC Accept22-26 AMG Solid WireWire SchemeT568A / T568B
Material:
Panel1.5mm thickness metallic panelIDC ContactPhosphor Bronze with Tin-painted
SpringPhosphor Bronze with gold-painted(3U"~50U") over nickel paintedShieldZinc Alloy
Environmental Conditions:
Storage Temperature-60℃ ~+80℃Operational Temperature-10℃ ~+60℃
Relative HumidityMaximum Noncondensing 93%.


Application:

10/100/1000 Ethernet connectivity.

Data applications (19" Rack & Cabinet).

Private/enterprise networks.

T1/DDS TDM connectivity and patching.

Configuration

Order Information:

Model No.Product Description
RGP-TSF-303A21U 24 Port Cat6A FTP Shielded Patch Panel
RGP-TSF-303B21U 24 Port Cat6 UTP Unshielded Patch Panel
RGP-TSF-303C21U 48 Port Cat6 UTP Unshielded Patch Panel
RGP-TSF-303F21U 12 Port Cat6 UTP Unshielded Patch Panel In Wall
RGP-TSF-303H21U 24 Ports Cat6 UTP Unshielded Feed-Through Patch Panel
RGP-TSF-303J21U 24 Port Cat6 FTP Shielded Patch Panel
