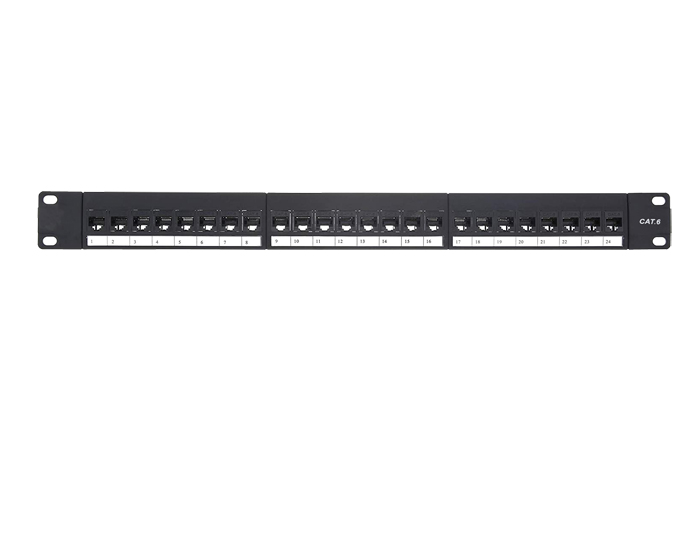

24 Ports Cat6 Unshielded Feed-Through Patch Panels TSF-303H2

Publisher: MJADOM

Author: Andy

The CAT6 UTP Feed Through Patch Panel or Patch Panel Feed Through or Pass-Through Patch Panel exceeds TIA's CAT6 performance standards. The Patch Panel 24 Port is designed with rear 110 IDC's for quick and easy punch-down termination.

Description:

The CAT6 UTP Feed Through Patch Panel or Patch Panel Feed Through or Pass-Through Patch Panel exceeds TIA's CAT6 performance standards. The Patch Panel 24 Port is designed with rear 110 IDC's for quick and easy punch-down termination. Patch Panel Rack comes integrated with a universal label for either 568-A or B wiring schemes.

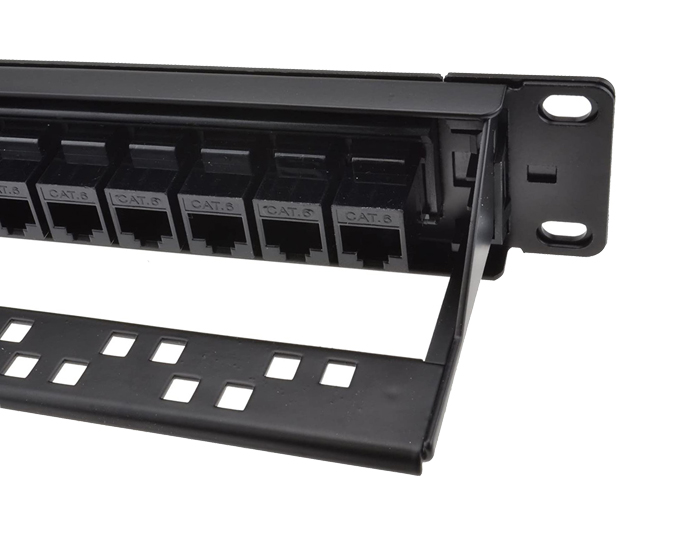

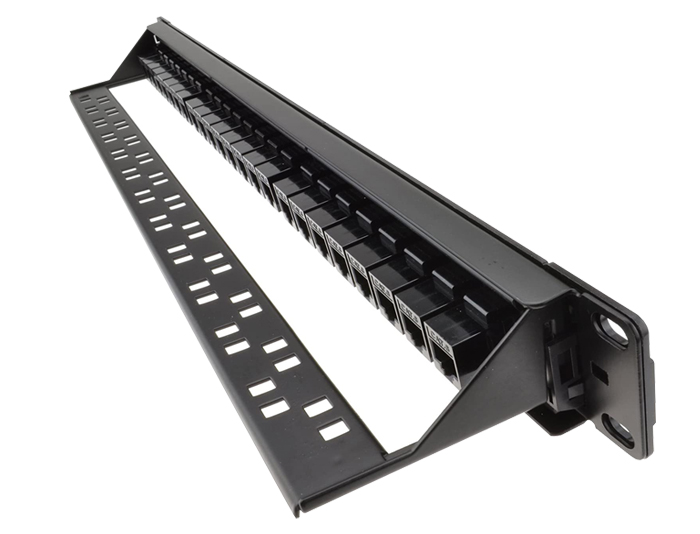

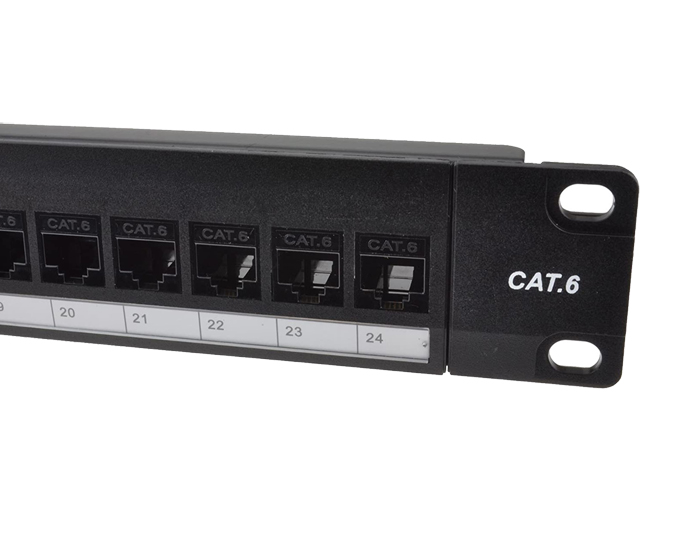

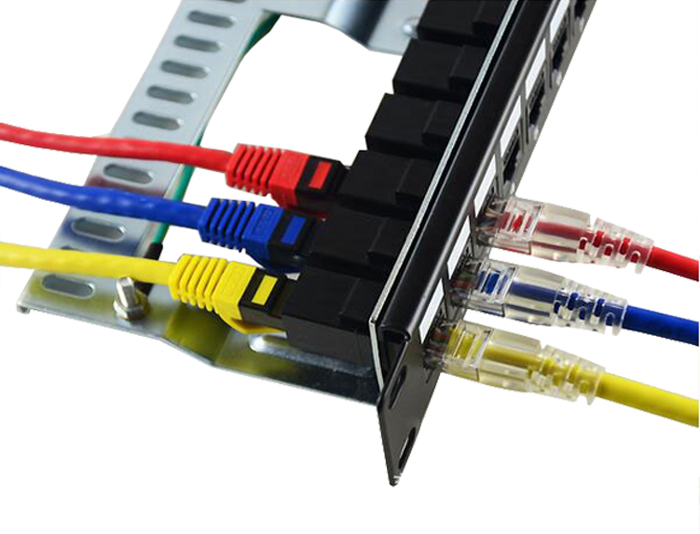

The Feed Through Patch Panel is designed for wall mount and ideal for 10/100/1000Base-T Ethernet applications. The Ethernet Patch Panel manages and organizes Cat6 input and output cable connections in high-density Ethernet network. The UTP Patch Panel has clear numbering on the front and back of the pass-through patch panel enables quick and easy identification of cable runs, and the rear cable management bar keeps Ethernet cables neat and tidy. Network Patch Panel are commonly linked through the panel, The Patch Panel 24 Cat6 comply with Category 6 specifications(TIA 568-C.2 and ISO/IEC 11801).


MJADOM offers a full range of Patch Panels including in CAT5E, CAT6, CAT6A, CAT7, Buy Patch Panels (Shielded & Unshielded, 12 Port, 24 Port, 48 Port, 96 Port) For Copper Ethernet Network at MJADOM.


Features:

Rack-mounted CAT6 component-rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth.

CAT6 Keystone Jack provides excellent performance for data networks.

Patch Panel Keystone designed for use in 19" racks and ideal for 10/100/1000Base-T applications.

Enhanced crosstalk cancellation reduces return loss.

Exceeds ANSI/TIA-568 Category 6 connecting hardware requirements.

Universal IDC Module (Krone or 110) termination interface

Includes both TIA-568A and TIA-568B color wiring diagrams.

Patch Panel Cat6 is ideal for a 22-26AWG solid wire.

Clear protective wire cap allowing security during wire management.

Universal IDC Module (Krone or 110) termination interface

Backwards compatible with all lower rated category components.

1U rack mount space (RMS).

Exceeds ANSI/TIA-568-B.2-1 and ISO/IEC 11801 Standards

UL listed.


Product Details:

CategoryCat6PoE StandardIEEE 802.3af/at
Ports24 PortsRack Space1U
Connector TypeRJ-45 (8P8C)Connector GenderMale-to-Male
Shielding TypeUTP UnshieldedWiring SchemeT568A/T568B
Electrical Details:
Current Rating1.5AmpsInsulation Resistance500 Megaohm
DC Resistance0.1ohm MAXVoltage150 VAC MAX
Insertion Life1500 mating cyclesPlug Retention Force89N
IDC Accept22-26 AMG Solid WireWire SchemeT568A / T568B
Material:
Panel1.5mm thickness metallic panelIDC ContactPhosphor Bronze with Tin-painted
SpringPhosphor Bronze with gold-painted(3U"~50U") over nickel paintedShieldZinc Alloy
Environmental Conditions:
Storage Temperature-60℃ ~+80℃Operational Temperature-10℃ ~+60℃
Relative HumidityMaximum Noncondensing 93%.


Application:

10/100/1000 Ethernet connectivity.

Data applications (19" Rack & Cabinet).

Private/enterprise networks.

T1/DDS TDM connectivity and patching.

Configuration

Order Information:

Model No.Product Description
RGP-TSF-303A21U 24 Port Cat6A FTP Shielded Patch Panel
RGP-TSF-303B21U 24 Port Cat6 UTP Unshielded Patch Panel
RGP-TSF-303C21U 48 Port Cat6 UTP Unshielded Patch Panel
RGP-TSF-303F21U 12 Port Cat6 UTP Unshielded Patch Panel In Wall
RGP-TSF-303H21U 24 Ports Cat6 UTP Unshielded Feed-Through Patch Panel
RGP-TSF-303J21U 24 Port Cat6 FTP Shielded Patch Panel


Related Products

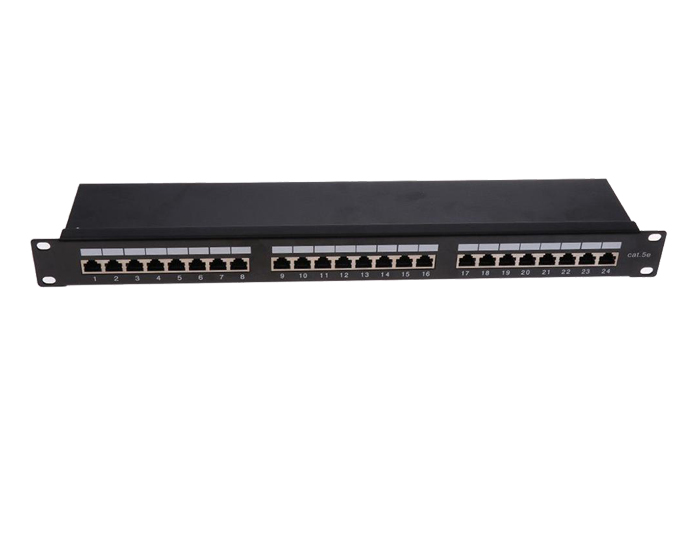

24 Ports Cat5e 1U Unshielded RJ-45 Patch Panel TSF-303B1
