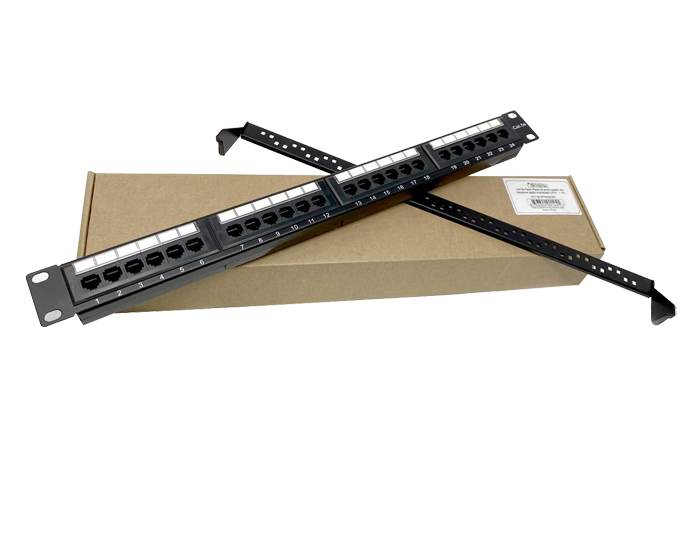

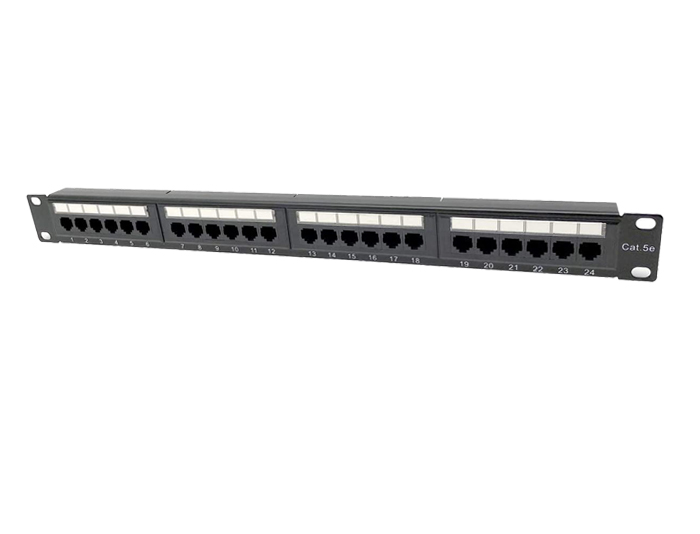

24 Ports Cat5e 1U Unshielded RJ-45 Patch Panel TSF-303B1

Publisher: MJADOM

Author: Andy

Cat5e Patch Panel is designed for use in 19" racks and ideal for 10/100/1000Base-T Ethernet applications. The Patch Panels is designed with rear 110 IDC's for quick and easy punch-down termination. Patch Panel 24 Port comes integrated with a universal label for either 568-A or B wiring schemes.

Description:

The CAT5e 24 Port UTP Unshielded Patch Panel exceeds TIA's CAT5e performance standards. The Patch Panels is designed with rear 110 IDC's for quick and easy punch-down termination. Patch Panel 24 Port comes integrated with a universal label for either 568-A or B wiring schemes.

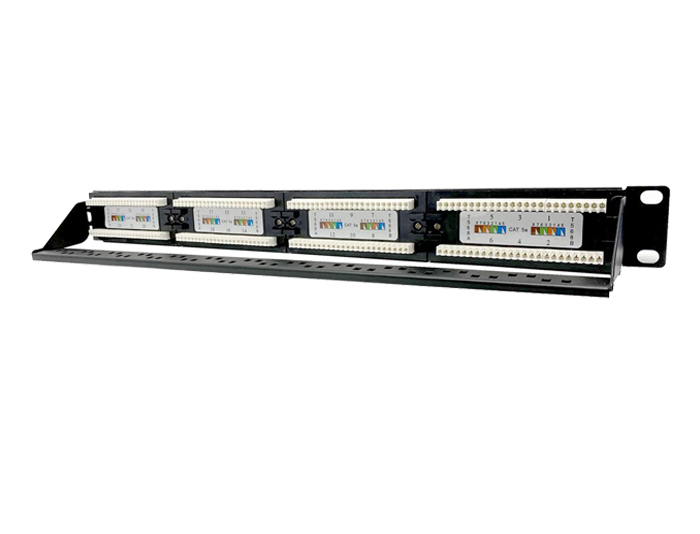

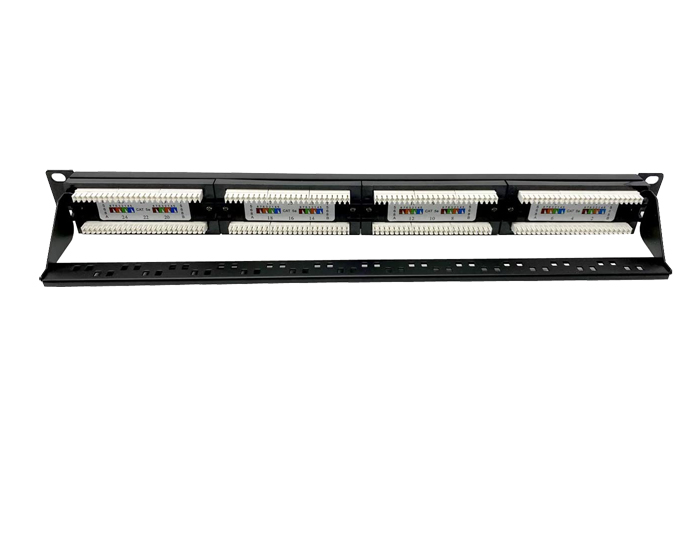

The Cat5e Patch Panel is designed for use in 19" racks and ideal for 10/100/1000Base-T Ethernet applications. It manages and organizes Cat5e input and output cable connections in high-density Ethernet network. The Patch Panel 24 Port CAT5e has clear numbering on the front and back of the network patch panel enables quick and easy identification of cable runs, and the rear cable management bar keeps Ethernet cables neat and tidy. All keystone Jacks in the panel are commonly linked through the panel and can be grounded to the rack using the earth wire provided. The Patch Panels comply with Category 5e specifications(TIA 568-C.2 and ISO/IEC 11801).


MJADOM offers a full range of Patch Panels including in CAT5E, CAT6, CAT6A, CAT7, Buy Patch Panels (Shielded & Unshielded, 12 Port, 24 Port, 48 Port, 96 Port) For Copper Ethernet Network at MJADOM.


Features:

Rack-mounted CAT5e component-rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth.

Cat 5e Patch Panel / Cat5e Keystone Jack provides excellent performance for data networks.

Ethernet Patch Panel designed for use in 19” racks and ideal for 10/100/1000Base-T applications

Enhanced crosstalk cancellation reduces return loss.

Exceeds ANSI/TIA-568 Category 5e connecting hardware requirements.

Universal IDC Module (Krone or 110) termination interface

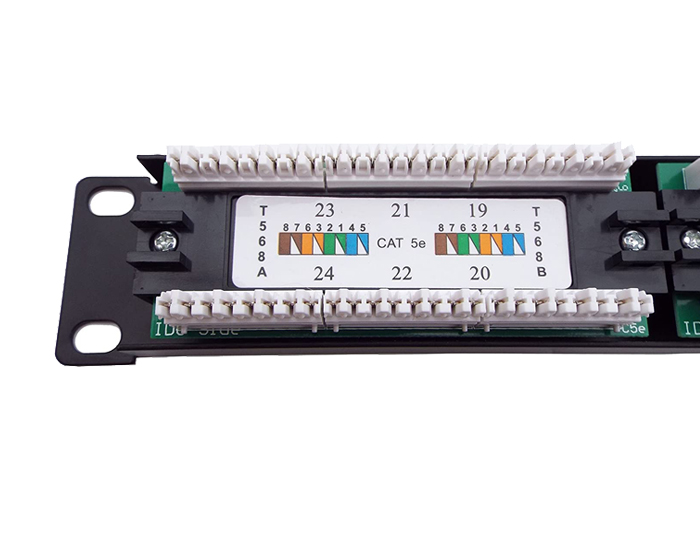

Includes both TIA-568A and TIA-568B color wiring diagrams.

1U Patch Panel is ideal for a 22-26AWG solid wire.

Clear protective wire cap allowing security during wire management.

Universal IDC Module (Krone or 110) termination interface.

Backward compatible with all lower rated category components.

1U rack mount space (RMS).

Exceeds ANSI/TIA-568-B.2-1 and ISO/IEC 11801 Standards

UL listed.


Product Details:

CategoryCat5ePoE StandardIEEE 802.3af/at
Ports24 PortsRack Space1U
Connector TypeRJ-45 (8P8C)Connector GenderMale-to-Male
Shielding TypeUTP UnshieldedWiring SchemeT568A/T568B
Electrical Details:
Current Rating1.5AmpsInsulation Resistance500 Megaohm
DC Resistance0.1ohm MAXVoltage150 VAC MAX
Insertion Life1500 mating cyclesPlug Retention Force89N
IDC Accept22-26 AMG Solid WireWire SchemeT568A / T568B
Material:
Panel1.5mm thickness metallic panelIDC ContactPhosphor Bronze with Tin-painted
SpringPhosphor Bronze with gold-painted(3U"~50U") over nickel paintedShieldZinc Alloy
Environmental Conditions:
Storage Temperature-60℃ ~+80℃Operational Temperature-10℃ ~+60℃
Relative HumidityMaximum Noncondensing 93%.


Application:

10/100/1000 Ethernet connectivity.

Data applications (19" Rack & Cabinet).

Private/enterprise networks.

T1/DDS TDM connectivity and patching.

Configuration

Order Information:

Model No.Product Description
RGP-TSF-303B11U 24 Port Cat5e UTP Unshielded Patch Panel
RGP-TSF-303C11U 48 Port Cat5e UTP Unshielded Patch Panel
RGP-TSF-303H11U 24 Ports Cat5e UTP Unshielded Feed-Through Patch Panel
RGP-TSF-303J11U 24 Port Cat5e FTP Shielded Patch Panel


Related Products

24 Ports Cat6 FTP Shielded 1U Patch Panels TSF-303J2
24 Ports Cat6 FTP Shielded 1U Patch Panels TSF-303J2

TSF-303J2 ​CAT6 FTP Patch Panel also called Shielded Patch Panel or Cat6 Shielded Patch Panel, Shielded Cat6 Patch Panel complies with Category 6 specifications(TIA 568-C.2 and ISO/IEC 11801).

24 Ports Cat6A 1U Unshielded Patch Panels TSF-303A2
24 Ports Cat6A 1U Unshielded Patch Panels TSF-303A2

TSF-303A2 Patch Panel Cat6A or Network Patch Panel exceeds TIA's CAT6A performance standards. The Patch Panel CAT6A is designed with rear 110 IDC's for quick and easy punch-down termination.

24 Ports Cat5e FTP Shielded 1U Patch Panels TSF-303J1
24 Ports Cat5e FTP Shielded 1U Patch Panels TSF-303J1

TSF-303J1 Cat5e Shielded Patch Panel also called FTP Patch Panel exceeds TIA's CAT5e performance standards.

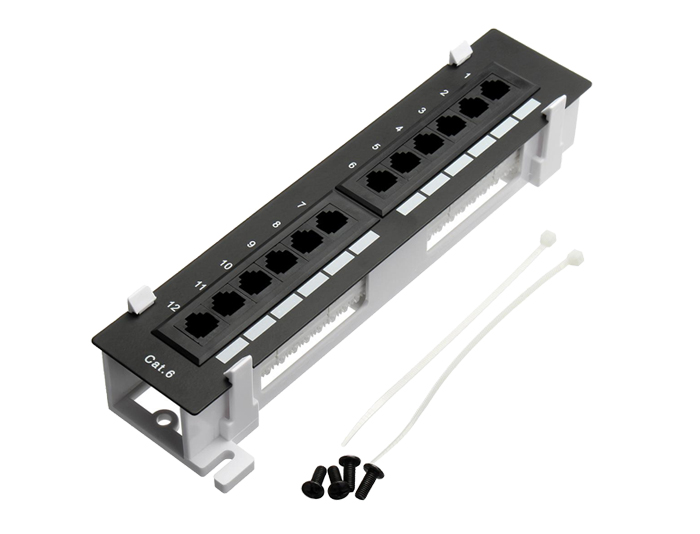

12 Ports Cat6 Unshielded Patch Panel Wall Mount TSF-302F2
