Description :

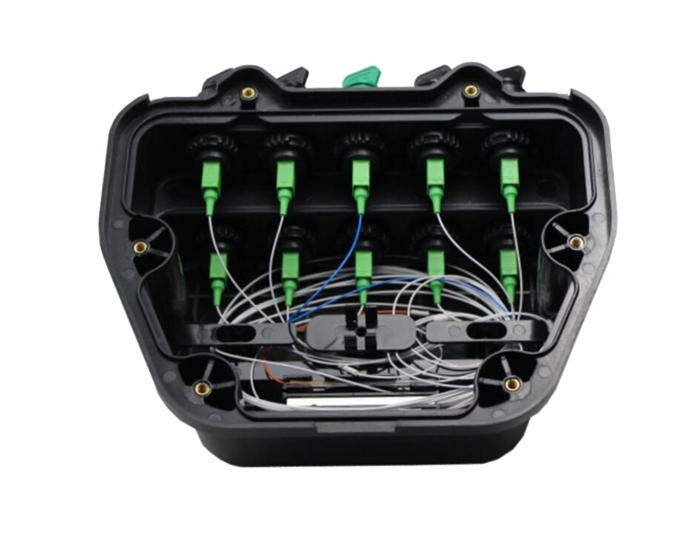

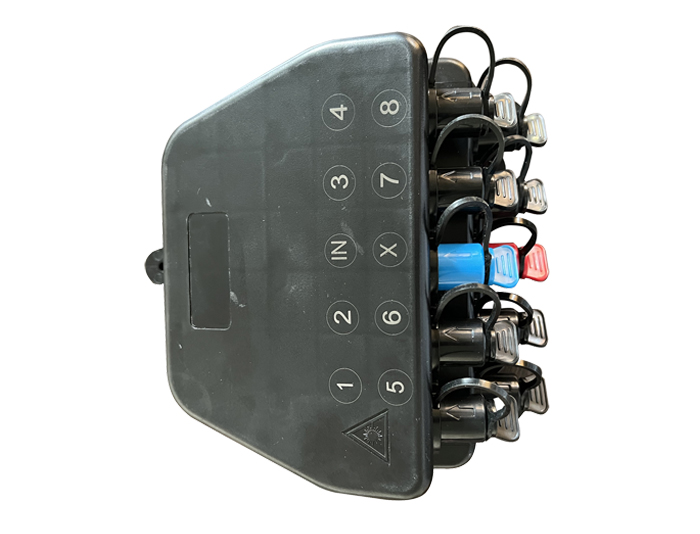

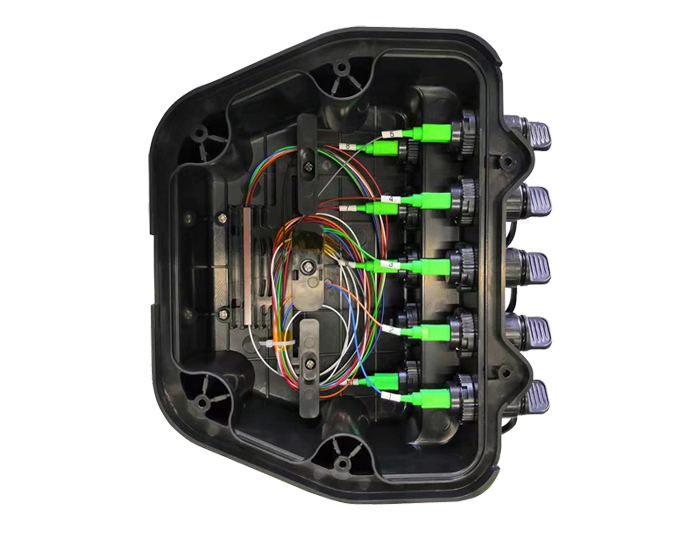

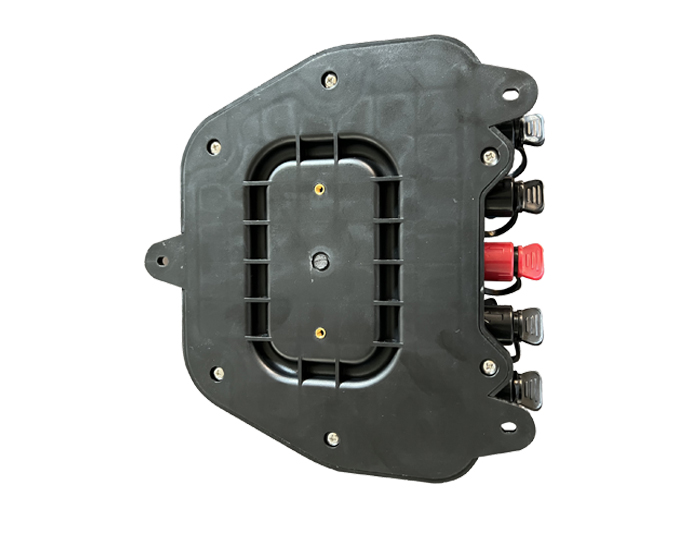

10 Core Pre-Connectorized Fiber Optic Termination Box (RGP-F2E-505C) is made of plastic molded parts and gasket sealing materials. 10 Core F2E-505C Optic Fiber Terminal Box is widely used as a termination point for the feeder cable to connect with the drop cable. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTX network building. The Optic Cable Terminal Box can be used indoors and outdoor.
The Pre Connectorized Fiber Box can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.
Feature:
Material: PC+ABS alloy.
Seal Material: Thermoplastic rubber.
Rotatable and dis-mountable splice tray for easy splicing.
Plug-and-play installation, easy for maintenance and expansion.
Integrated with flap-up splice cassette and cable management system.
Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.
Support Pole-mounted, Wall-Mounted, Aerial Mounted, and Fiber Storage Bracket Installation.
Support above-ground, human well, and hand well installation scenarios.
Impact test:1K10. Pull Force:100N. Full Rugged design.
1x9 Unbalance Fiber Optic Splitter can be installed in each splice tray as option.
10 Ports cable entrance for SC/APC Pre-connectorized drop cable.
Protection class: IP68.
RoHS compliance.
Applications:
Aerial mounting & Pole mounting & Wall mounting applications & Fiber Storage Bracket Installation.
