Description :

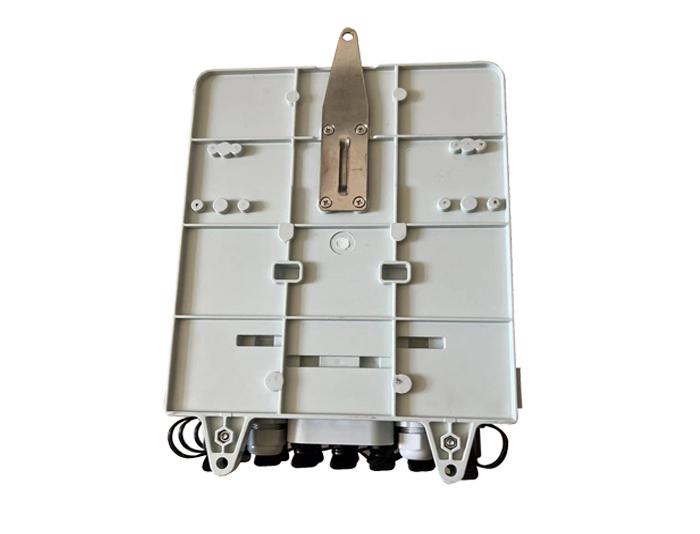

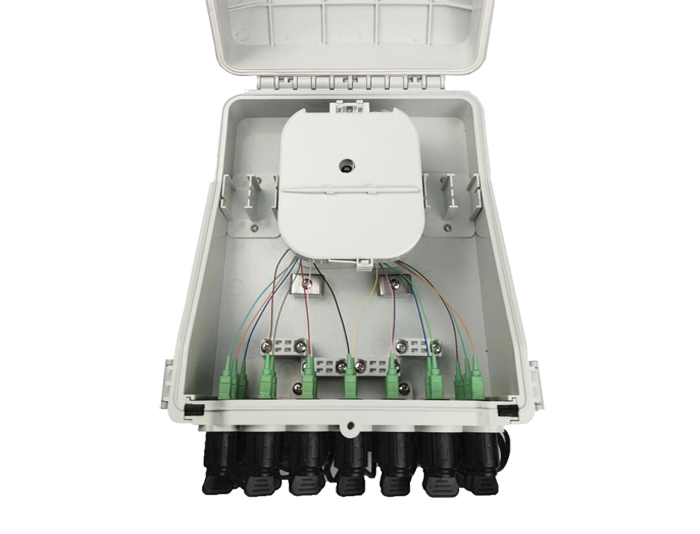

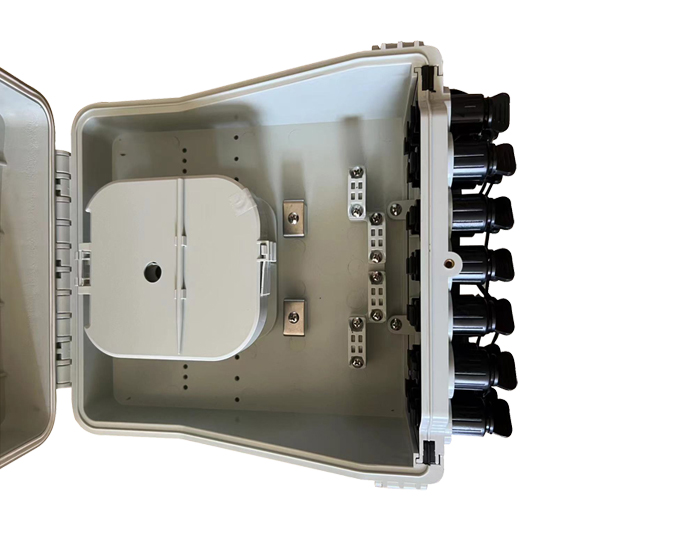

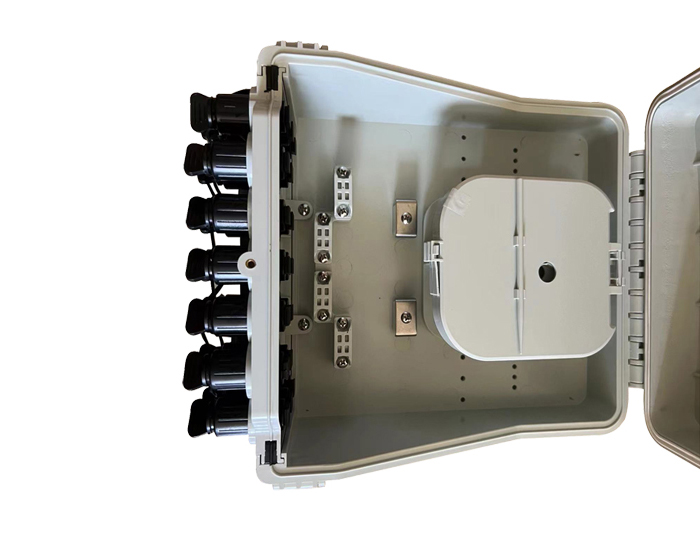

16 Core Pre-Connectorized Fiber Optic Box (RGP-F2E-507G-16R) is made of plastic molded parts and gasket sealing materials. 16 Core F2E-507G-16R Fiber Distribution Hub is widely used as a termination point for the feeder cable to connect with the drop cable. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTX network building. The Fiber Distribution Terminal can be used indoors and outdoor.
The Pre Connectorized Optical Fiber Distribution Box can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.
Feature:
Material: PC+ABS Alloy.
Seal Material: Thermoplastic rubber.
180-degree access with buckled lock structure.
Dis-mountable adaptor panel, Supports mid-span termination.
Rotatable and dis-mountable splice tray for easy splicing.
Plug-and-play installation, easy for maintenance and expansion.
Integrated with flap-up splice cassette and cable management system.
Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.
Impact test:1K10. Pull Force:100N. Full Rugged design.
1x4, 1x8 PLC Splitter or 1x9 Unbalance Fiber Optic Splitter can be installed in each splice tray as option.
pre-connectorized adapters and connectors.
1 mid-span cable entrance(Φ8-14mm)for uncut cable and 2 branch ports for distribution cable(Φ10-16mm),16 pcs of Pre-Connectorized reinforced water-proof adapter for SC.
Protection class: IP65.
RoHS compliance.
Applications:
Aerial mounting & Pole mounting & Wall mounting applications.
