Description:

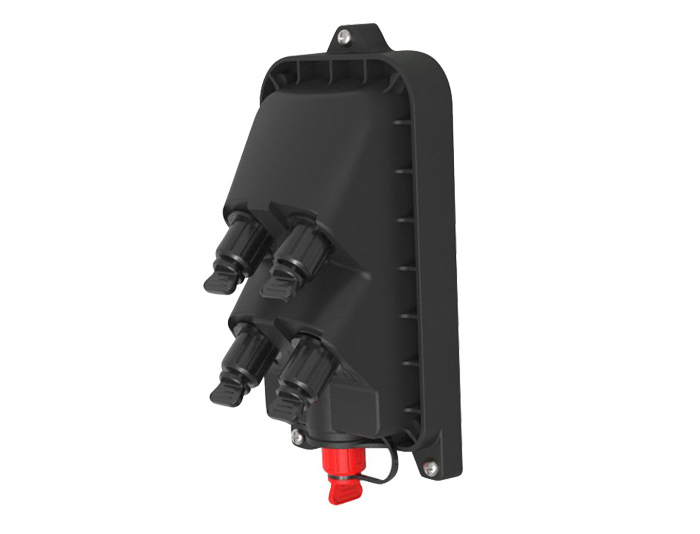

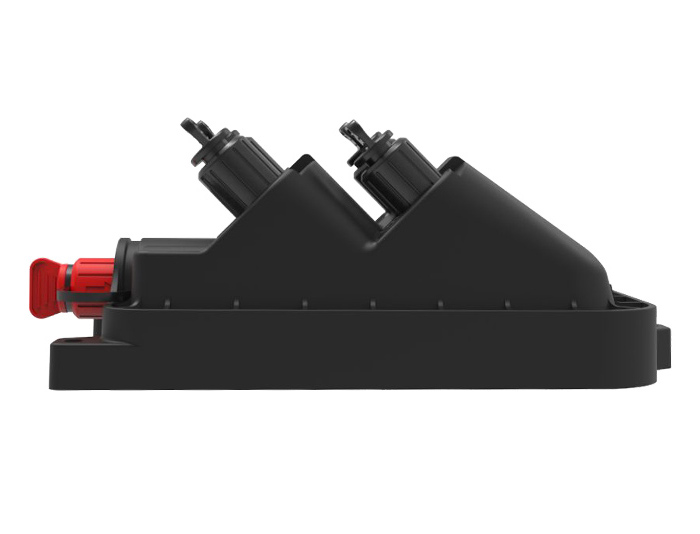

4 Core Pre-Connectorized Fiber Nap Box (RGP-F2E-507C-4K) is made of plastic molded parts and gasket sealing materials. 4 Core F2E-507-4K Nap Box Fiber are designed to serve as an interconnection point between the distribution network and the access network, allowing for faster deployment, connection and disconnection of new customers, The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTX network building. The Fiber Box Installation can be used indoors and outdoor.
The Pre Connectorized Nap Box can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.
Feature:
Material: PC+ABS alloy.
Seal Material: Thermoplastic rubber.
The bottom shell and the upper cover are fixed with screws, removable.

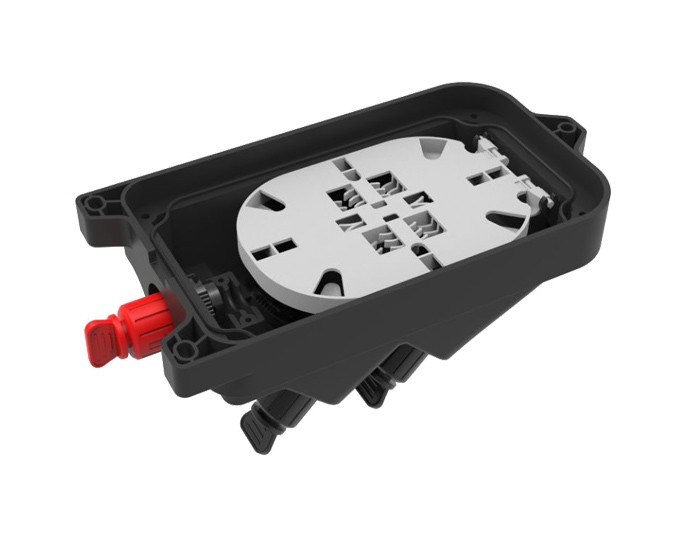

Rotatable and dis-mountable splice tray for easy splicing.
Plug-and-play installation, easy for maintenance and expansion.

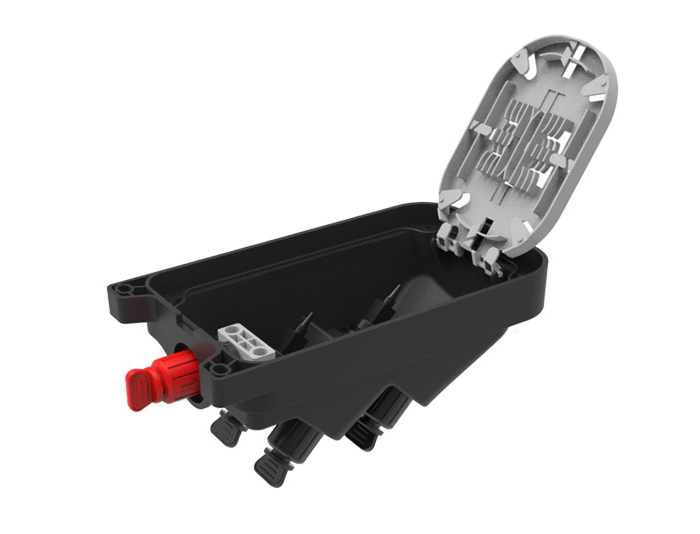

Integrated with flap-up splice cassette and cable management system.
Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.
Impact test:1K10. Pull Force:100N. Full Rugged design.
1x4, 1x8 PLC Splitter can be installed in each splice tray as optional.

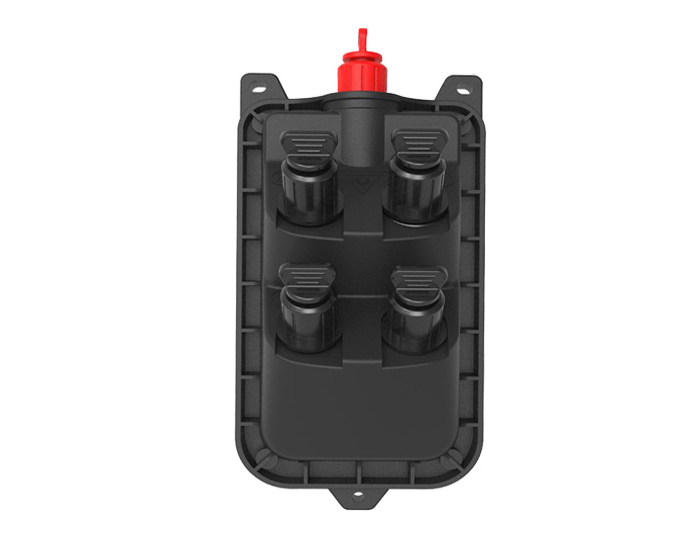

4 pcs of Pre-connector reinforced water-proof adapter for SC.
1 round cable entrance(Φ6-12mm)for cut cable, 4 ports cable entrance for pre-connectorized drop cables SC Connector.
Protection class: IP65.
RoHS compliance.
Applications:
Pole mounting & Wall mounting applications.
