Description:

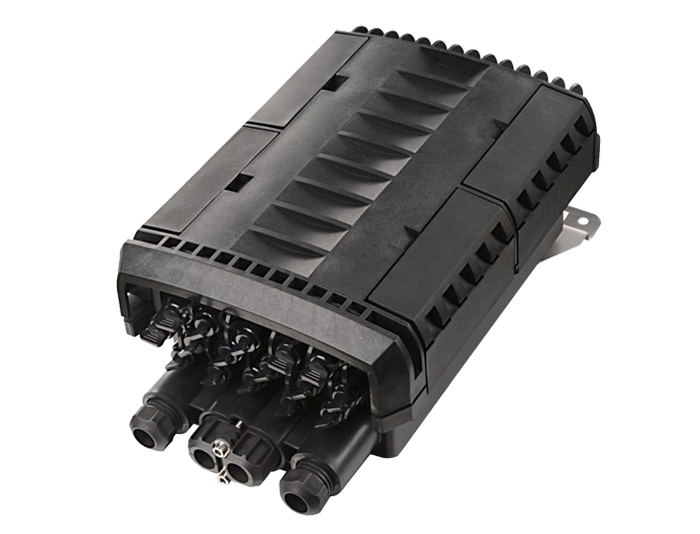

16 Cores Pre-Connectorized Fiber Nap Box (RGP-F2E-505B) is made of plastic molded parts and gasket sealing materials. 16 Core F2E-505B Nap Box is widely used as a termination point for the feeder cable to connect with the drop cable. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building. Fiber Box Installation can be used indoors and outdoor.
The Pre Connectorized Fiber Nap can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.
Feature:
Box Material: Modified PP.
Seal Material: Thermoplastic rubber.
180-degree access with buckled lock structure.
Dis-mountable adaptor panel, Supports mid-span termination.

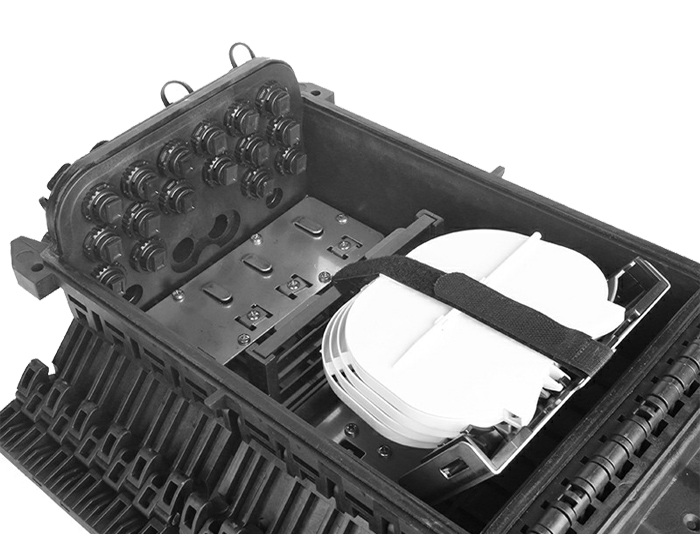

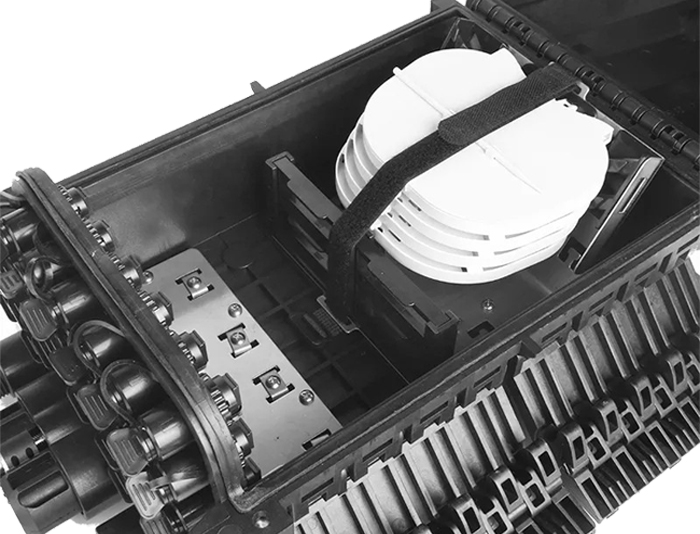

Rotatable and dis-mountable splice tray for easy splicing.
Plug-and-play installation, easy for maintenance and expansion.
Integrated with flap-up splice cassette and cable management system.
Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.
Reinforced Seal Screw reaches Protective Level IP68.
Impact test:1K10. Pull Force:100N. Full Rugged design.
1x4, 1x8 PLC Fiber Optic Splitter or 1x9 Unbalance PLC Fiber splitter can be installed in each splice tray as option.
16 pcs of Pre-connector reinforced water-proof adapter for SC Connector.
1 mid-span cable entrance(Φ10-17.5mm)for uncut cable and 2 branch ports for distribution cable(Φ10-17.5mm),16 ports cable entrance for pre-connector distribution cables.
Protection class: IP68.
RoHS compliance.
Applications:
Aerial mounting & Pole mounting & Under-ground or direct buried applications.
