Description :

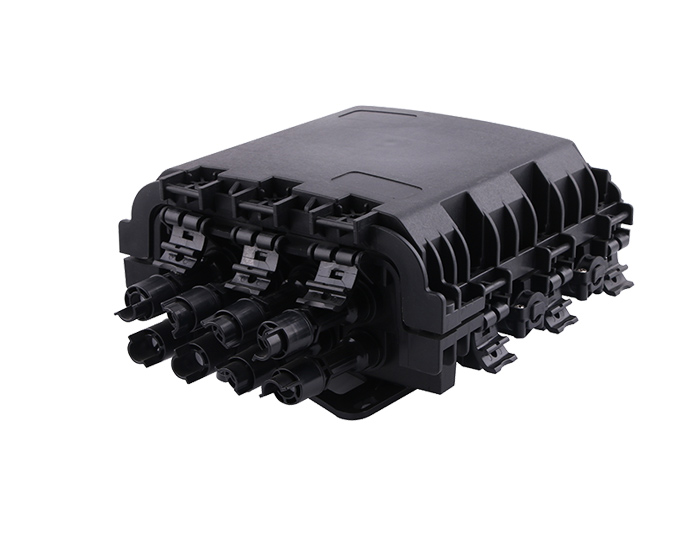

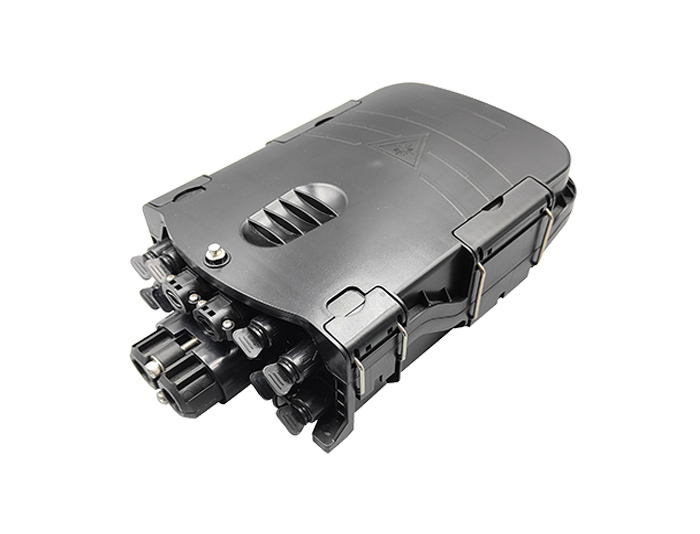

RGP-F2E-507EX 1x8 Core Pre-Connectorized FTTH Distribution Box provides a high-density wall-mounted, pole-mounted, and aerial mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. The Pre-Connectorized Box is widely used as a termination point for the feeder cable to connect with the drop cable. The fiber splicing, splitting, distribution can be done in fiber access terminal box. The pre-connectorized ODN solutions can be used for FTTH deployments (PON and P to P networks) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside, Can be used indoor or outdoor.
Feature:
Total enclosed structure.
Closure Material: PC+ABS, Water-proof, Dust-proof, anti-aging design; Protection level up to IP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution can be done in the box.
180-degree access with buckled lock structure.
Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
Dis-mountable adaptor panel, Support mid-span termination.

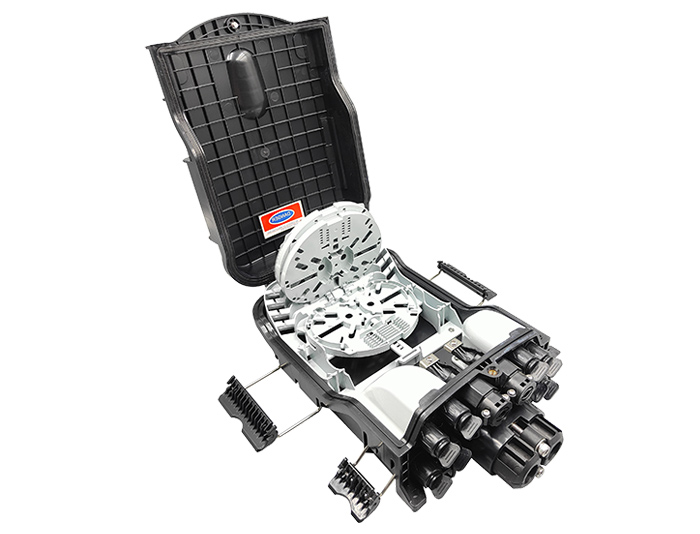

Rotatable and dis-mountable splice tray for easy splicing.
Plug-and-play installation, easy for maintenance and expansion.

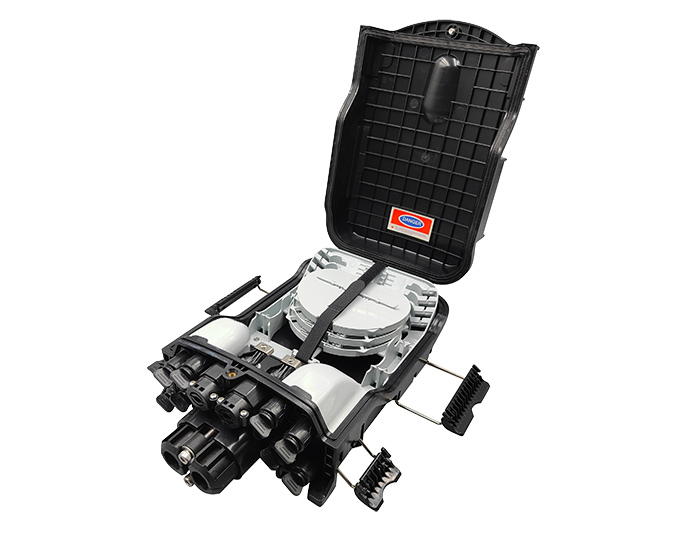

Integrated with flap-up splice cassette and feeder cable can be placed by expression port, easy for maintenance and installation.
Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.

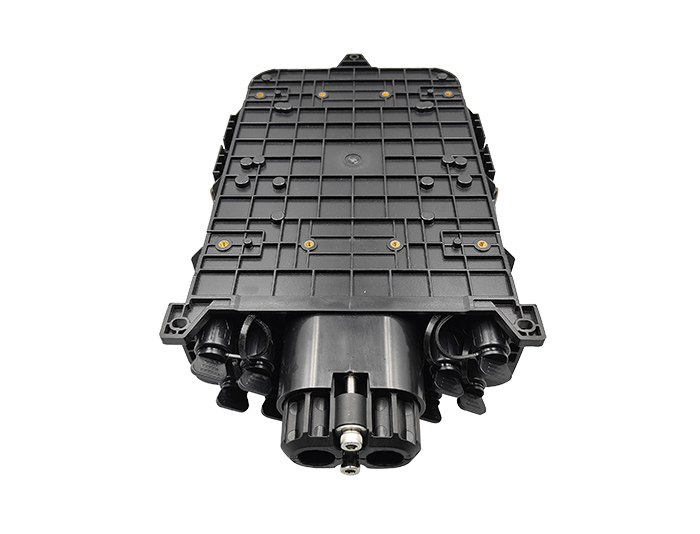

Wall-mounted, Poled-mounted, Aerial Mounted.
RoHS compliance.
Applications:
Aerial mounting & Pole mounting & Wall mounting applications.
