Description:

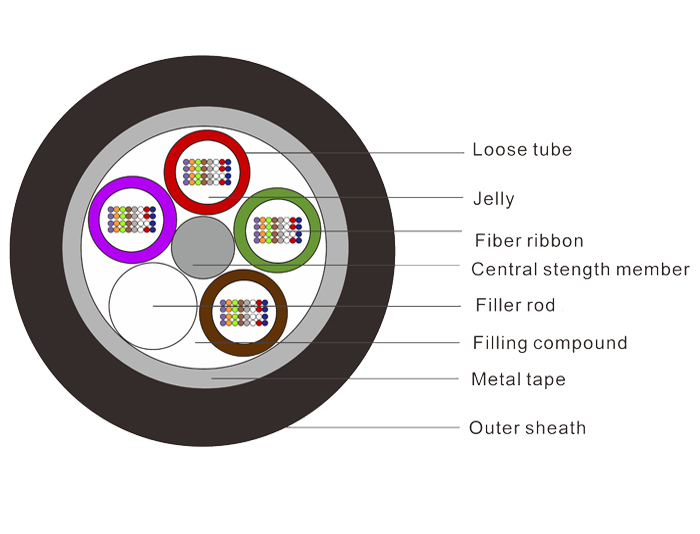

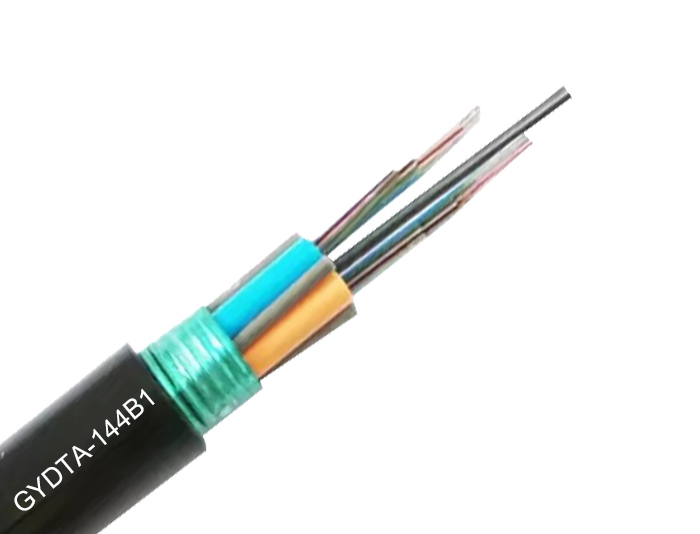

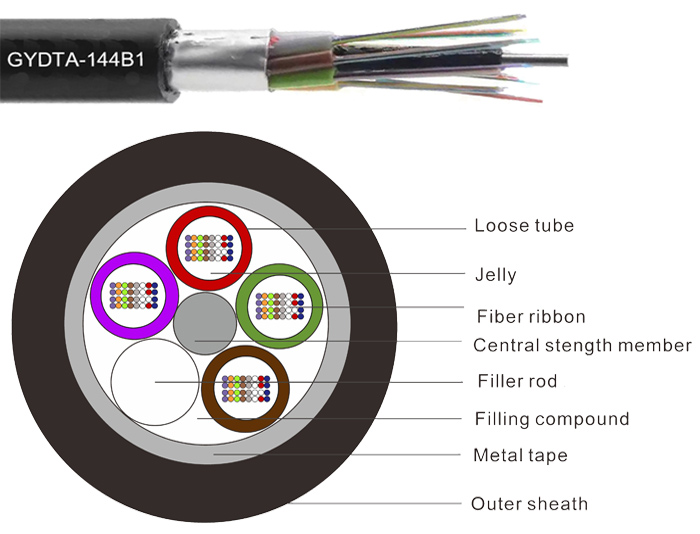

GYDTA, Aluminum Tape Stranded layer Fiber Ribbon Cable. The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The loose tube are filled with a water-resistant filling gel. The center of the cable core is a metal reinforcement core. For some ribbon optical fiber cables with a number of cores, a layer of polyethylene should be squeezed outside the metal reinforcement core. Loose tubes and fillers are stranded around the metallic central strength member, Loose tubes and cable core are filled with cable filling compound. The corrugated aluminum tape is longitudinally applied over the cable cores. Finally, Ribbon Fiber Cable is combined with a durable polyethylene (PE) sheath.
Feature:
S-Z stranded (up to 576 fibers), Gel-filled.
Low loss, low dispersion.
Good mechanical and temperature performance.
All section water blocking.
Excellent transmission, mechanical and environmental performance.
Anti-ultraviolet radiation.
Special tube filling compound ensures a critical protection for the fiber.
A specially designed compact structure is good at preventing loose tubes from shrinking.
Crush resistance and flexibility.
Metallic Central Strength Member.
Longitudinal wrapped Aluminum Tape (APL) moisture barrier.
Loose tube filling compound.
Easy identification, easy branching, easy maintenance.
Lifespan over 30 years.
In accordance with IEC, ITU, and EIA standards.
Application:
Duct and Non-Self-supporting Aerial.
