Description:

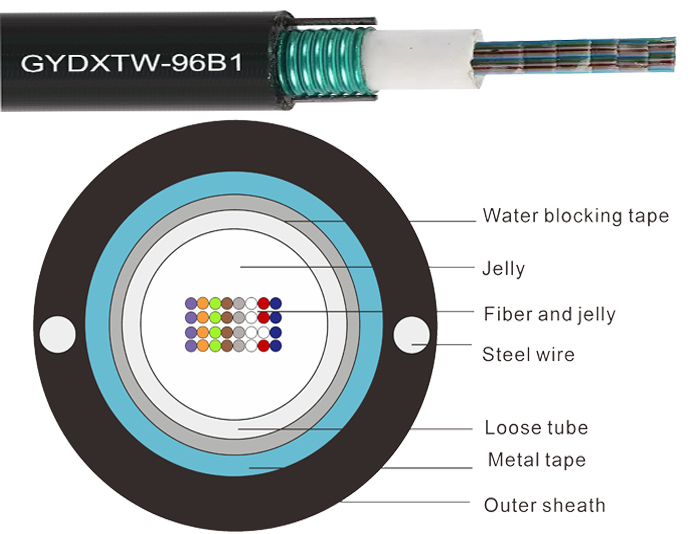

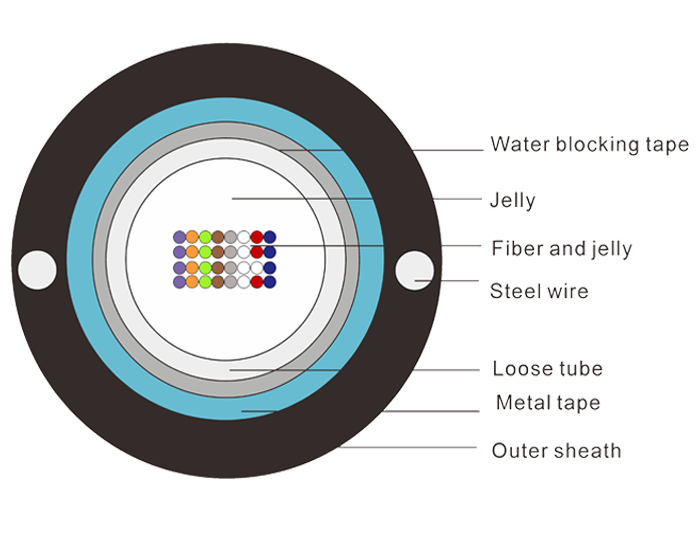

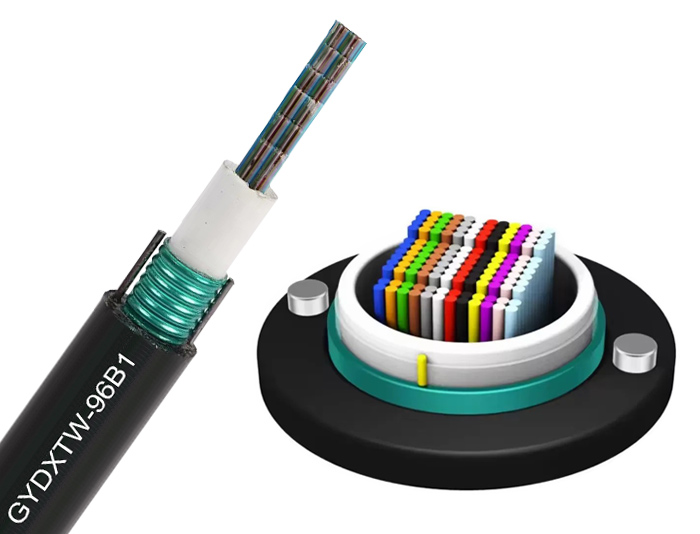

GYDXTW, which is Steel Tape Central Loose Tube Fiber Ribbon Cable. The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The loose tube are filled with a water-resistant filling gel. For some fiber optic cables with a number of cores, a layer of polyethylene should be squeezed outside the metal reinforcement core. The tube is wrapped with a layer of Corrugated Steel Tape (PSP) longitudinally, The corrugated steel tape is longitudinally applied over the cable cores, The parallel steel wires are placed at the two sides tape, to ensure tensile strength. Finally, Ribbon Fiber Optic is combined with a durable polyethylene (PE) sheath.
Feature:
Central Loose Tube (up to 288 fibers), Gel-filled.
Low loss, low dispersion.
Ribbon Fiber Optic Cable and Ribbon Fiber Splicer.
Good mechanical and temperature performance.
All section water blocking.
Excellent transmission, mechanical and environmental performance.
Anti-ultraviolet radiation.
Special tube filling compound ensures a critical protection for the fiber.
A specially designed compact structure is good at preventing loose tubes from shrinking.
Crush resistance and flexibility.
Longitudinal wrapped Corrugated Steel Tape (PSP) moisture barrier.
Loose tube filling compound.
Easy identification, easy branching, easy maintenance.
Lifespan over 30 years.
In accordance with IEC, ITU, and EIA standards.
Application:
Duct and Non-Self-supporting Aerial.
