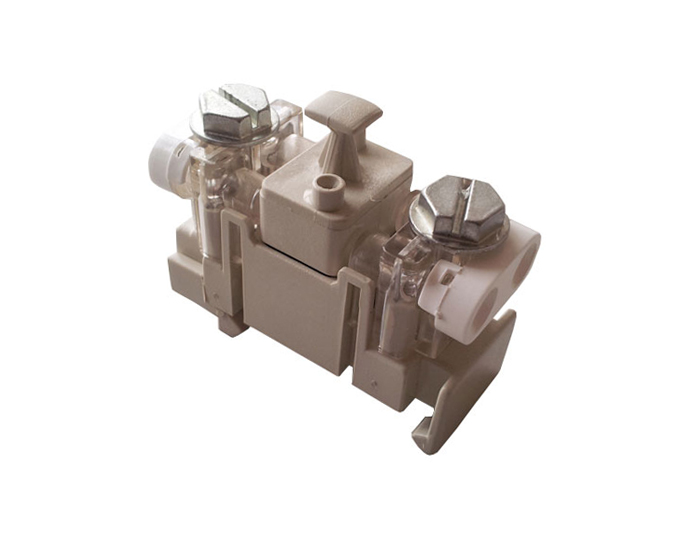

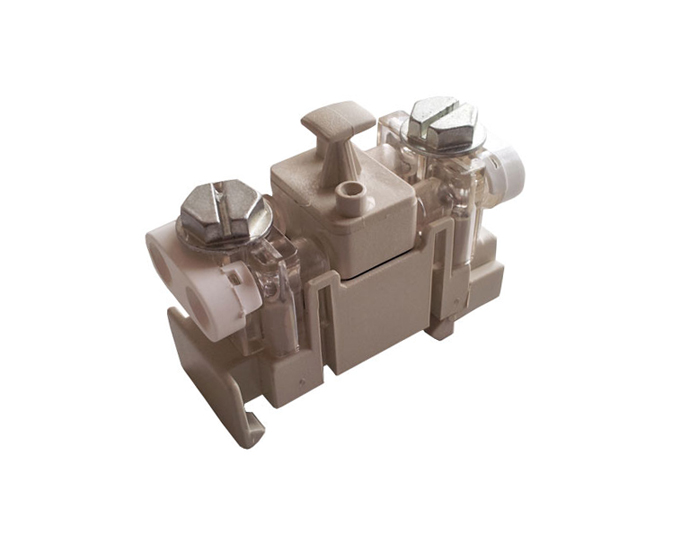

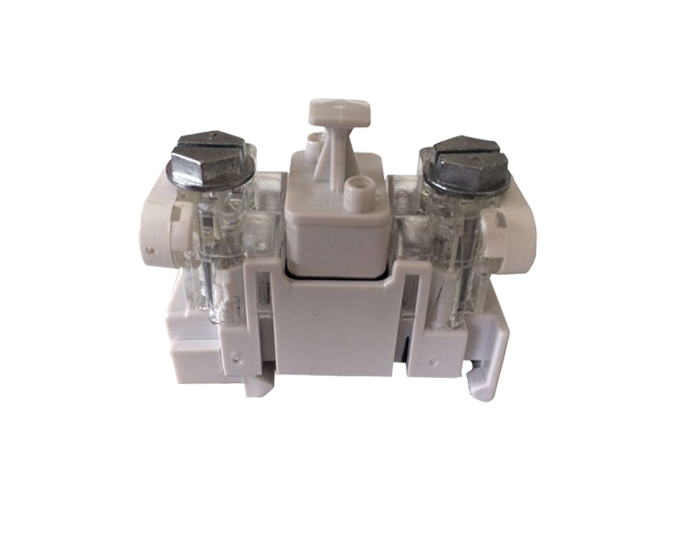

1 Pair STB Module With Unprotection TSF-105A

Publisher: MJADOM

Author: Andy

RGP-TSF-105 STB Module also called subscriber terminal module is the most widely used IDC module and ideal connectivity products. Gel-filled wire connector adopts IDC ( Insulation Displacement Connection ) technical.

Description:

RGP-TSF-105 STB Module also called subscriber terminal module is the most widely used IDC module and ideal connectivity products. Gel-filled wire connector adopts IDC ( Insulation Displacement Connection ) technical. The contact pin is Silver-plated phosphor bronze.



The gel-filled connector is suitable for distribution, protection, and customer termination in overhead lines. This new generation design fits all existing networks and can accommodate a wide range of drop wire sizes. No special tools are required to perform IDC terminations; a simple clockwise rotation of a screwdriver completes the drop wire termination. Both sides of this connector can be re-terminated multiple times with different conductor sizes.

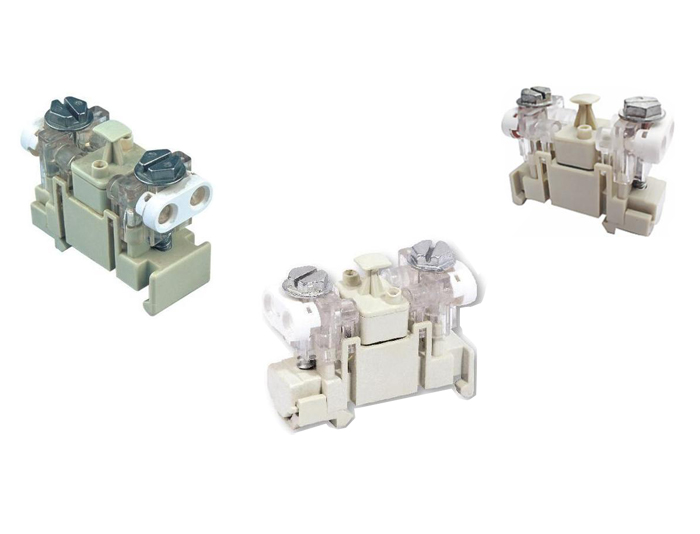

MJADOM offers a full range of 1 Pair STB Module Without Protection & 1 Pair STB Module With Protection and Dp Box.


Features:

No special tools are required to perform IDC terminations.

Both sides of this connector can be re-terminated multiple times with different conductor sizes.

Insulation Displacement Connection.

Reliable connections.

Flame retardant performance.

Modular design and easy installations and testing.

Water and humidity-proof totally sealed connections.

Durable, High Impact, Ultra Violet resistance.

Designed for mounting on standard DIN stainless steel galvanized rails 35 mm.

A gel-filled IDC module designed for mounting in housings on standard DIN rails.


Product Details:

TypeRGP-TSF-105Style1 Pair STB Module Without Protection
ColorRed / GreyMaterial

Body: VO glass-fiber reinforced polycarbonate

Insertion contacts: Tin-plated phosphor bronze (5μ)

  Insulation resistance

Dry atmosphere: >1012Ω.

Damp atmosphere: >1012Ω.

Salt fog (ASTMB117): >1012Ω

Immersion in water: >1012Ω (15 days in 3% NaCl solution)

  Contact resistance

RMaterial + Rbridge contacts +Rwire contacts <10mΩ

Increase in contact resistance:

After climatic tests: <2.5mΩ.

After 50 reinsertions: <2.5mΩ.

Dielectric strength: >3,000 Vdc for 1 minutes

Drop wire connector

Gauge range

Insulation diameter


0.4 to 1.0mm ø

5mm max ø

Pair connector

Gauge range

Insulation diameter


0.4 to 1.0mm ø

3mm max ø

 Lower sealantEpoxy resin Upper cable sealantSilicone-filled
Pair/drop wire bearing coverPolycarbonatePlug-in module bodyVO glass-fiber reinforced polycarbonate
Plug-in module sealantGel FilledCable/drop wire membraneThermoplastic rubber
Protection module230 V, 5A/5KA GDT (Optional)



Application:

In cross-connection cabinets and terminating boxes.

In building entrance distributors.

Interface boxes UG / Aerial Networks.

Distribution Points.

Customer termination devices.

Secondary Telephone Network.


Configuration

Order Info:

  Item No. Product Description
RGP-TSF-105A1 Pair STB Module Without Protection
RGP-TSF-105B1 Pair STB Module With Protection
RGP-TSF-108A10 Pair Pouyet Dp box With STB Module
RGP-TSF-108B10 Pair Dp box With STB Module
