10 Pair Outdoor Distribution Box With STB Module TSF-108B

Publisher: MJADOM

Author: Andy

MJADOM offers RGP-TSF-108B 10 Pair Dp box with terminal block connector needed is to connect a main secondary Cables of 10 pairs and to get out connections of 10 Drop wires.

Description:

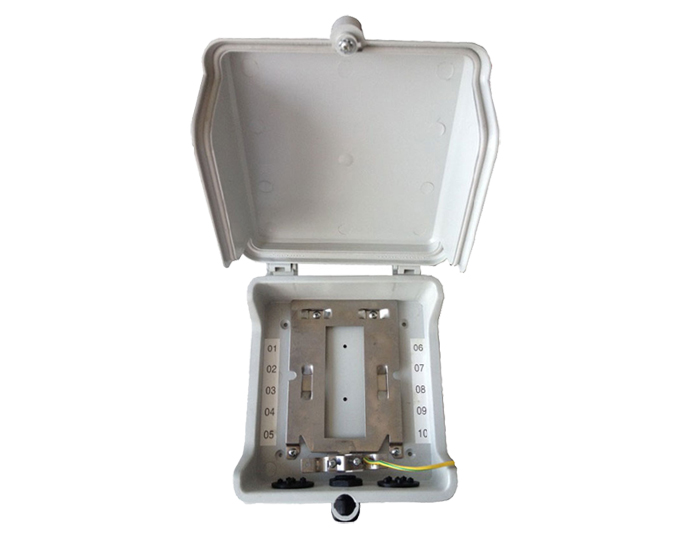

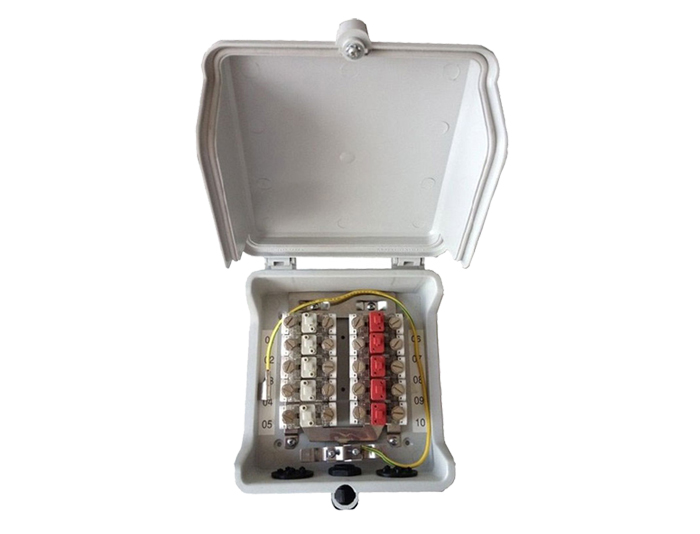

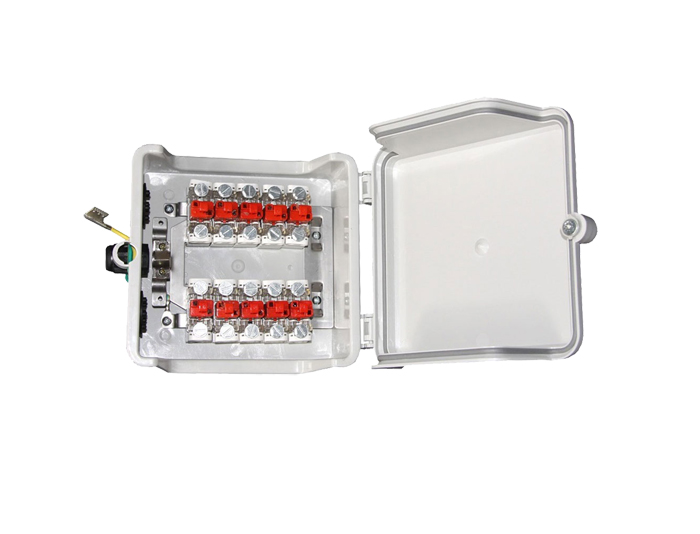

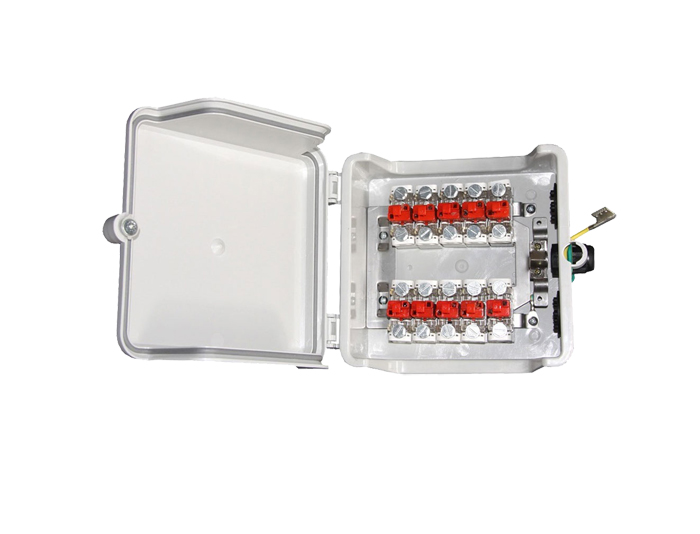

RGP-TSF-108B 10 Pair Dp box with terminal block connector needed is to connect a main secondary Cables of 10 pairs and to get out connections of 10 Drop wires. It consists of a parallele piped box base with a cover and STB connection modules / Gel Filled secured in the base, stainless steel galvanized mounting rails, and connections of earth wires.



The terminal blocks din rail is supplied as independent units for direct aerial installation on walls, pedestals in cabinets, and so on. The ground terminals of the pairs are interconnected and in turn connected to the cable shielding and a ground terminal adjacent to the pilot pair (optional) at the cable end of the assembly. The Dp box housing and the cover is thermoplastic material, which is made of durable, high impact, shock resistance, Ultra Violet Resistance thermoplastic, self-extinguishing property that meets UL 94V-0 standard.

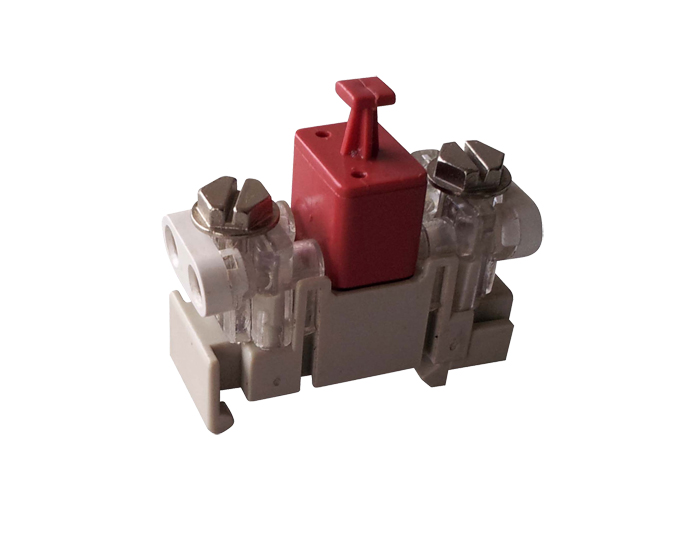

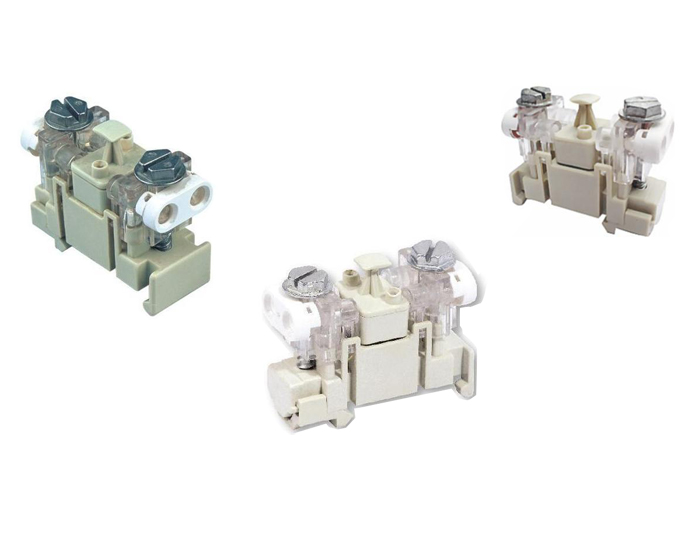

MJADOM offers a full range of 1 Pair STB Module Without Protection & 1 Pair STB Module With Protection and Dp Box.


Features:

Designed for mounting on standard DIN stainless steel galvanized rails 35 mm.

DIN stainless steel galvanized rail doubles as an earth point.

A gel-filled IDC module designed for mounting in housings on standard DIN rails.

The terminal and grounding cable at the end of the box bottom.

The Strain Relief Clamps are very strong can hold the secondary cable as well as drop wire.

Adequate inlet for the directly buried / aerial cable and outlets for the drop wires shall be provided in the bottom of the distribution box.

The terminal block junction box provides a cover that fits the base, allowing easy access of drop cable and customer cable by the bottom, trying to leave as little space as possible to prevent the entry of foreign bodies or moisture.

Dp cover and housing are fixed by hinges, and the box opens and closes very easily.

The housing and cover of the DPs have the rubber grommets in the close position, have completely sealed against ingress of wind-driven rain, moisture, snow, dust, insert, etc., and will provide full protection to the terminal block inside it.

The box includes all the elements necessary for proper installation.


Product Details:

 TypeRGP-TSF-108BStyle10 Pair Dp Box With STB Module
ColorGrey / BlackDimensions (HxWxD)

7.6"x7.6"x3.3"

 (Size: 195x195x85mm);

Insulation resistance> 1x1010 ΩContact resistance< 10 mΩ
Dielectric strength3000 V rms, 60 Hz ACHigh voltage surge3000 V DC surge
 Material

Housing: PC/ABS, UL 94 V-0 materials used.

Rail: Stainless steel.

Earthing: Brass, nickel-plated, and stainless steel

 Capacity 1/2/4/10/20 Pair



Application:

In cross-connection cabinets and terminating boxes.

In building entrance distributors.

Interface boxes UG / Aerial Networks.

Distribution Points.

Customer termination devices.

Secondary Telephone Network.

Configuration

Order Info:

  Item No. Product Description
RGP-TSF-105A1 Pair STB Module Without Protection
RGP-TSF-105B1 Pair STB Module With Protection
RGP-TSF-108A10 Pair Pouyet Dp box With STB Module
RGP-TSF-108B10 Pair Dp box With STB Module
