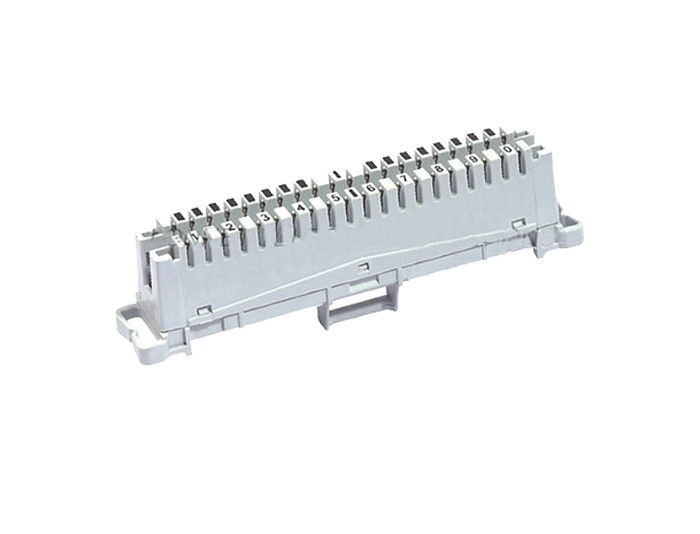

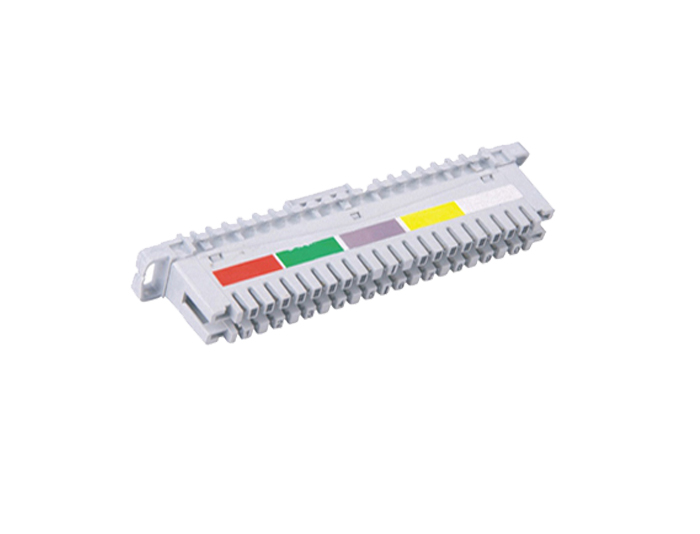

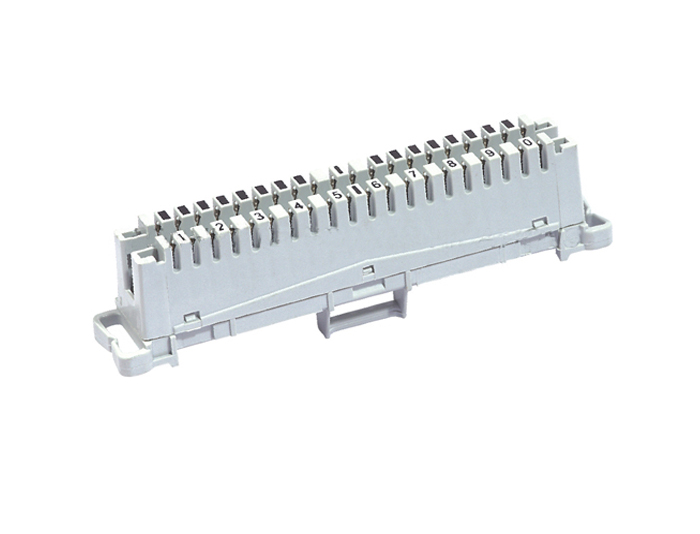

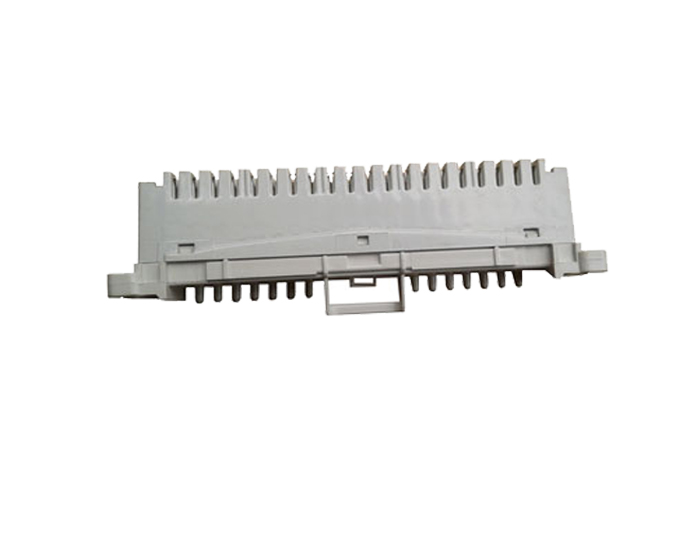

10 Pair Krone LSA-PLUS Connection Module TSF-101B

Publisher: MJADOM

Author: Andy

The RGP-TSF-101B 10 Pair LSA Connection Module is widely used in Main Distribution Frame and ideal connectivity products, The Krone Connection Module outside material is Flame retardant performance ABS/PBT, The Krone LSA-PLUS Connection Module contact pin is phosphor bronze with silver plated.

Description:

The RGP-TSF-101B 10 Pair LSA Connection Module is widely used in Main Distribution Frame and ideal connectivity products, Connection Module adopts IDC ( Insulation Displacement Connection ) technique. 10 pairs with parallel test facility or provision for over-voltage protection using 10 pair protection magazine. The Krone Connection Module outside material is Flame retardant performance ABS OR PBT, The Krone LSA-PLUS Connection Module contact pin is phosphor bronze with silver plated. Have a Reliable connection.



Voice, high-speed data transmission via ISDN, ADSL, VDSL, cable TV, Internet access, mobile networks, MJADOM'S copper connectivity solutions are designed to deliver fast, safe and reliable transmission.



MJADOM offers a full range of Krone LSA-PLUS Disconnection Module & Connection Module & Highband Module & Back Mount Frame and Overvoltage Protection.


Features:

Fits on all LSA-PLUS back mount frames.

Reliable connections.

Suitable for use all xDSL and ADSL 2+ circuits.

Modular design and installation.

Based on LSA-PLUS connection technology.

Flexible indoor and outdoor use.

Robust long-term environmental stability.

Support LSA-PLUS series 2 accessories.

Over-voltage protection using 10 pair protection magazine.

Type Approved against TEC, MDF Spec. GR/CTN-01/04 May 2005.

Life: durability 250 cycles.


Product Details:

 TypeRGP-TSF-101BStyleLSA-PLUS Krone Connection Module
Capacity10 PairDimensions (HxWxD)

0.8"x1.57"x4.84"

(Size: 20.5x40x123mm);

Contact resistance< 2.5 m ohmsInsulation resistance> 50 000 Mega ohms
Dielectric strength 2 KV rmsImpulse current5 kA ( 8/20 micro sec)
Cross talk ratio>60dB(50 kHz-21MHz)Plug-in loss<0.4dB(50 KHz-21MHz)
Material

Housing: PBT/ABS, self-extinguishing UL94 V-0

Contact: Special Phosphor bronze with silver-plated.

Specification5/8/10 Pair



Application:

Main distribution frames of exchanges.

In cross-connection cabinets and terminating boxes.

In building entrance distributors.

In-floor distributors or in PABXs for voice and data distribution.

Configuration

Order Info:

  Item No. Product Description
RGP-TSF-101A10 Pair LSA-PLUS Krone Disconnection Module
RGP-TSF-101B10 Pair LSA-PLUS Krone Connection Module
RGP-TSF-101C10 Pair Krone Profile Disconnection Module
RGP-TSF-101H19" Rack 15 Way Recessed Back Mount Frame With LSA-PLUS Module
RGP-TSF-202A10 Pairs 3 Pole Overvoltage Protection Magazine With Gas Discharge Tube
