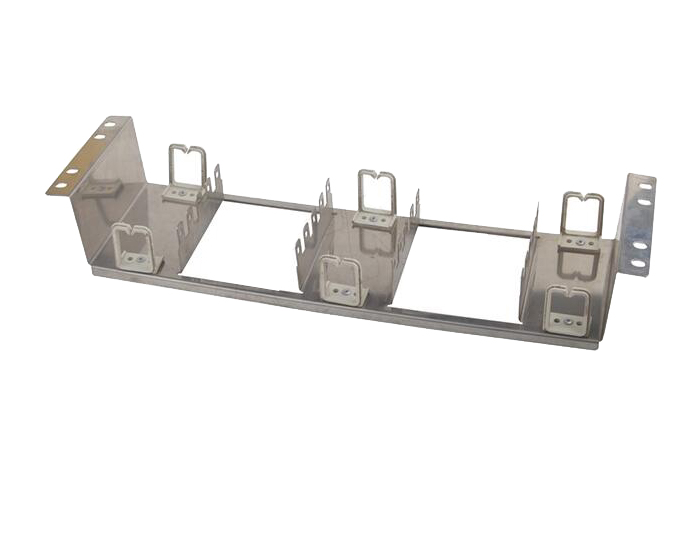

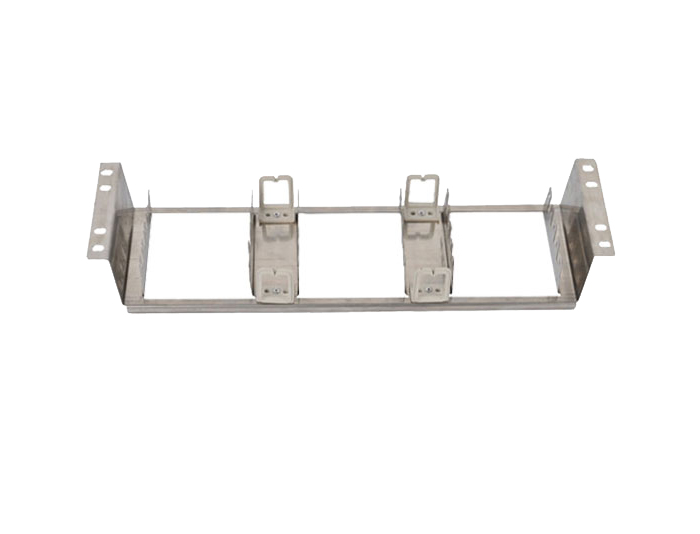

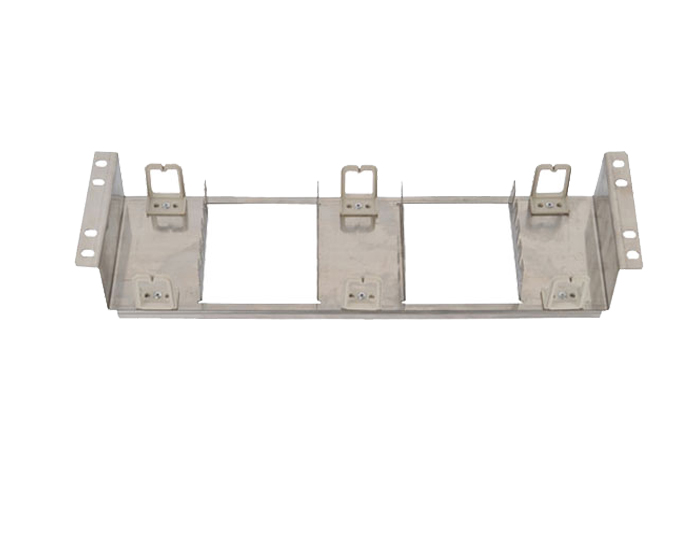

19 Inch Rack 15 Way Back Mount Frame For Krone Module TSF-101H

Publisher: MJADOM

Author: Andy

RGP-TSF-101H Back Mount Frame fitted with up to 3 numbers of 5 way Back Mount Frame (BMF). Back Mount Frame, Krone Block, Krone Frame can be mounted on a 19" rack.

Description:

RGP-TSF-101H Back Mount Frame fitted with up to 3 numbers of 5 way Back Mount Frame (BMF). Back Mount Frame, Krone Block, Krone Frame can be mounted on a 19" rack. A maximum of 15 Nos of 10 Pair LSA Disconnection modules can be mounted on the Recessed Back Mount Frame.



Voice, high-speed data transmission via ISDN, ADSL, VDSL, cable TV, Internet access, mobile networks, MJADOM'S copper connectivity solutions are designed to deliver fast, safe and reliable transmission.



MJADOM offers a full range of Krone LSA-PLUS Disconnection Module & Connection Module & Highband Module & STG Module & Back Mount Frame and Gas Discharge Tube Protective Unit.


Features:

19" Rack Mountable.

Accommodates up to 15 pcs of 10 Pair disconnection module.

Fitted with up to 3 Nos of 5 Way BMF 2/10 22.5 mm pitch.

Identification numbering system provided.

Jumper Cable routing.

Recessed Design.

Fits on all LSA-PLUS back mount frames.

Modular design and installation.

Type Approved against TEC, MDF Spec. GR/CTN-01/04 May 2005.


Product Details:

 TypeRGP-TSF-101HStyle19" Rack Recessed Back Mount Frame
Capacity15 WayDimensions (HxWxD)

19"x6.9"x2.87"

(Size: 482x176x73mm);

Contact resistance< 2.5 m ohmsInsulation resistance> 50 000 Mega ohms
Dielectric strength 2 kV rmsImpulse current5 kA ( 8/20 micro sec)
Cross talk ratio>60dB(50 kHz-21MHz)Plug-in loss<0.4dB(50 kHz-21MHz)
MaterialHousing: Stainless SteelSpecification9/12/15 Way



Application:

Main distribution frames of exchanges.

In cross-connection cabinets and terminating boxes.

In building entrance distributors.

In-floor distributors or in PABXs for voice and data distribution.

Configuration

Order Info:

  Item No. Product Description

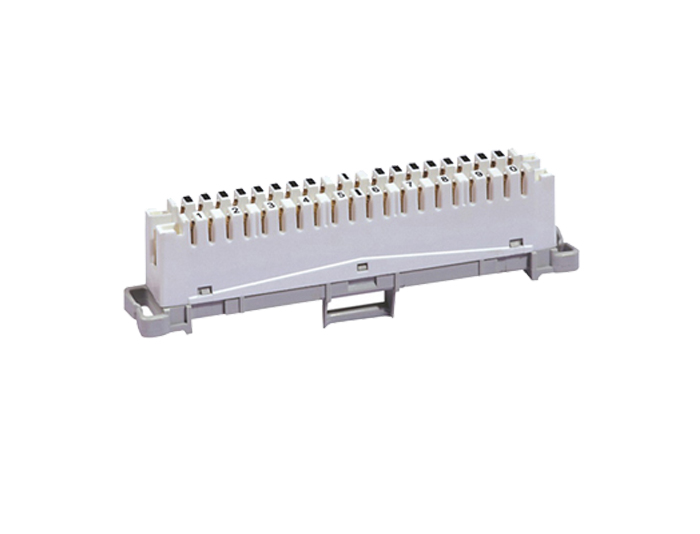

RGP-TSF-101A10 Pair LSA-PLUS Krone Disconnection Module
RGP-TSF-101B10 Pair LSA-PLUS Krone Connection Module
RGP-TSF-101C10 Pair Krone Profile Disconnection Module

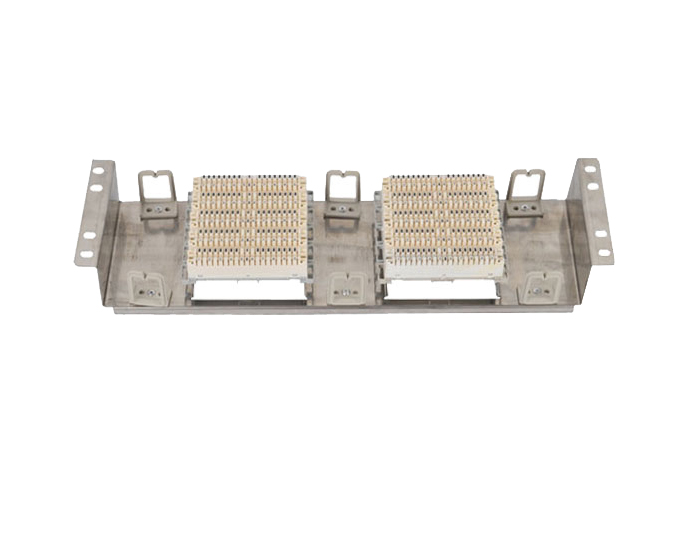

RGP-TSF-101H19" Rack 15 Way Recessed Back Mount Frame With LSA-PLUS Module
RGP-TSF-205C100 Pair LSA-PLUS Subrack Back Mount Frame With LSA-PLUS Module
