Description:

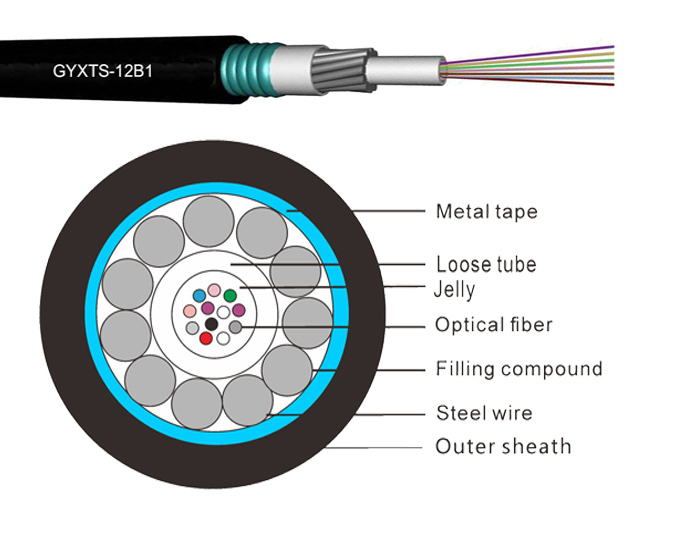

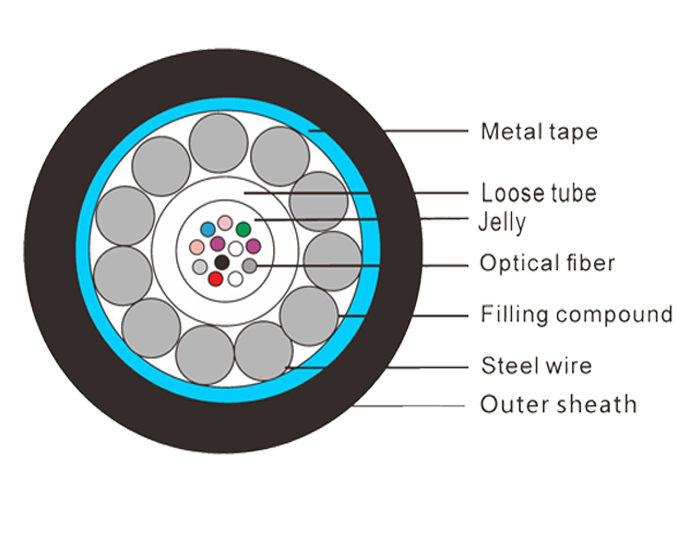

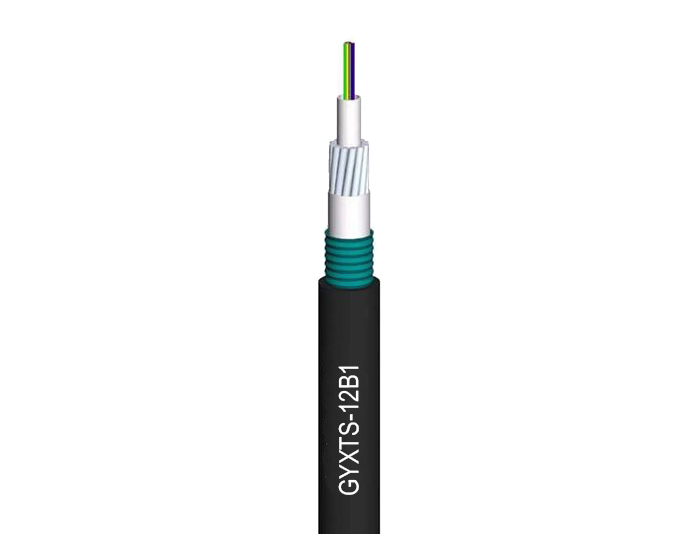

GYXTS, which is central loose tube light armored outdoor optical fiber cable. Fibers, 250μm, are positioned into a loose tube made of high modulus plastic. The tubes are filled with water-resistant filling compound. The tube is wrapped with a layer of Corrugated Steel Tape (PSP) longitudinally. Between the PSP and the loose tube water blocking material is applied to keep the cable compact and watertight. Multi steel wires are placed around of the central tube to ensure tensile strength. Finally, The fiber optic cable outdoor is completed with a single polyethylene
Feature:
Central loose tube (up to 24 fibers), Gel-filled cable.
G652D, Low loss, low dispersion.
Good mechanical and temperature performance.
High-strength loose tube that is hydrolysis resistant.
Special tube filling compound ensures a critical protection for the fiber.
PSP enhancing moisture-proof.
Multi steel wires wrapped the cable ensure tensile strength.
Crush resistance and flexibility.
PE sheath protects the cable from UV radiation.
Loose tube filling compound.
Reasonable design, precise residual length control and cabling process make the cable have excellent mechanical and environmental performance.
Small diameter, Light weight and easy installation.
In accordance with IEC, ITU, and EIA standards.
Application:
Duct and Non-Self supporting Aerial.
