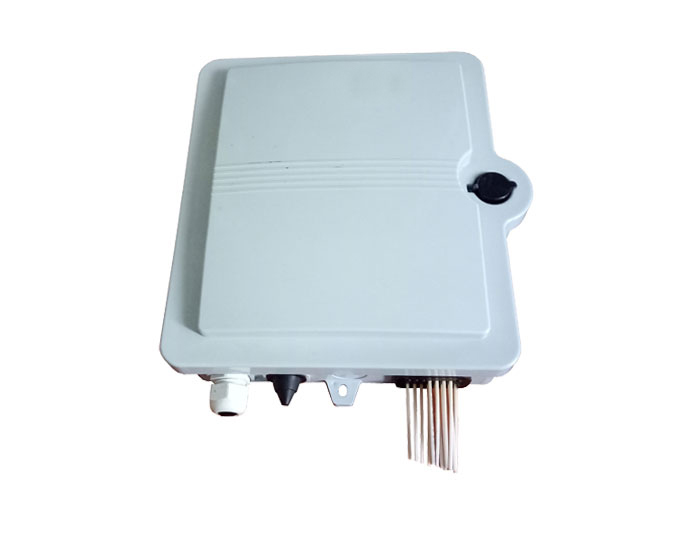

12 Core Fibre Distribution Box - Fiber Optic Box FDB-012A1

Publisher: Mjadom

Author: Andy

RGP-FDB-012A1 MJADOM offers 2F to 96F Fiber Distribution Box called Fiber Optic Box can load SC Fiber Adapter, SC Fiber Optic Splitter, It's the ideal equipment between the optical node and terminal. The Box is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.

RGP-FDB-012A1 12 Core Fibre Optic Distribution Box called Fiber Optic Box is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.


The range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The distribution boxes may house fusion splices, mechanical splices or splitters.

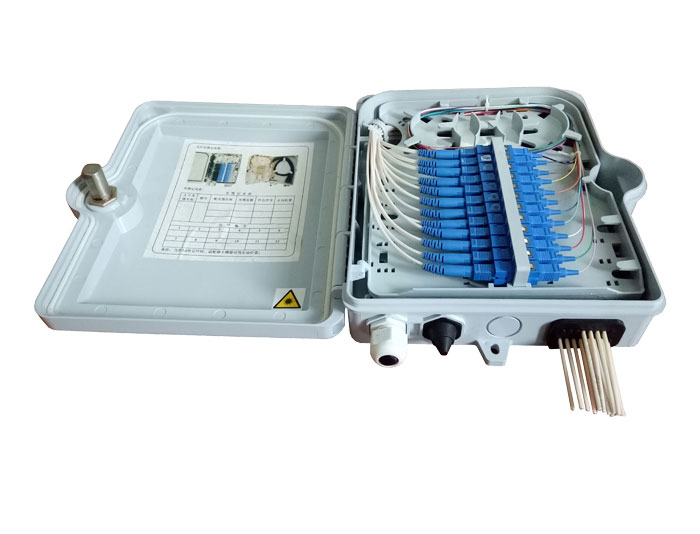

Can accommodate 1x12 SC/ LC Duplex Adaptor.

Material : PC/ABS Alloy or Fire-Retardant ABS .

UV and weather proof ; Up to 12 FTTH drops.

Wall and pole mountable, Grounding device included.

2 inlet ports( for cables with max diameter 14 mm), 12 outlet drop cable ports.

Suitable for used uncut OR cut fiber optic cable.

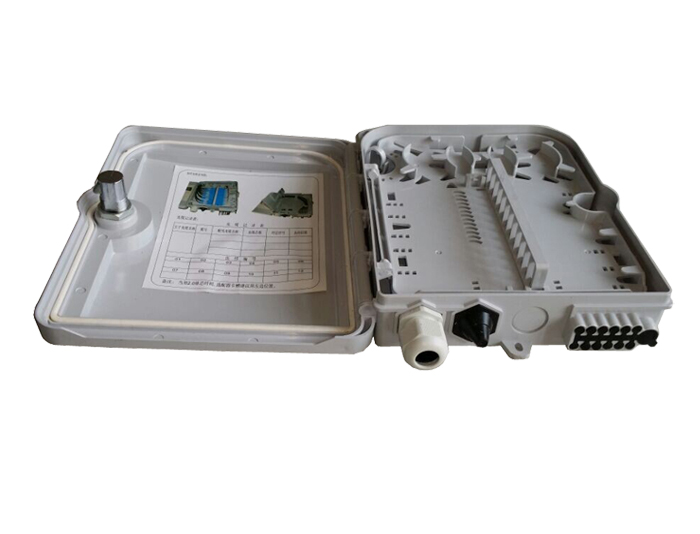

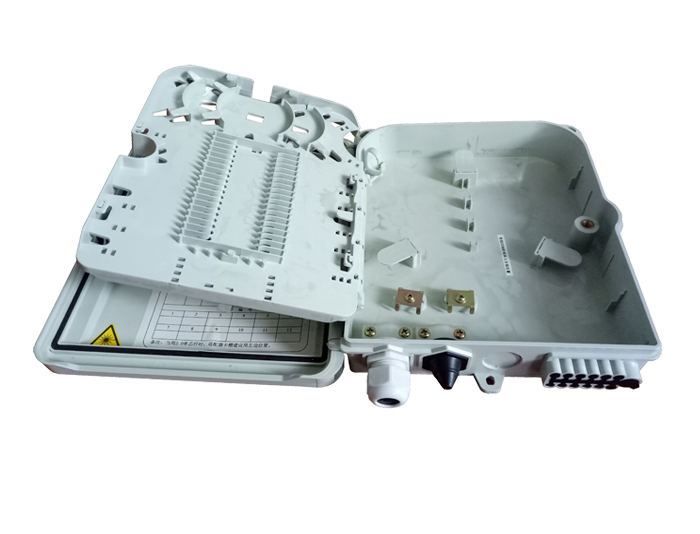

Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.



Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degree for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65

RoHS compliance

FTTH access network.

Telecommunication Networks.

CATV Networks.

Data communications Networks.

Local Area Networks.


Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-012A1

12 Splices,

12 SC/LC Duplex adaptors

or 1x8 PLC Splitter

213mmx163mm

x47 mm

16 PCS

2 Inlet Port ( Cut or Uncut Port )

+12 Drop Cable Outlet Ports

13 KGS

490mmx460mm

x330mm

Related Products

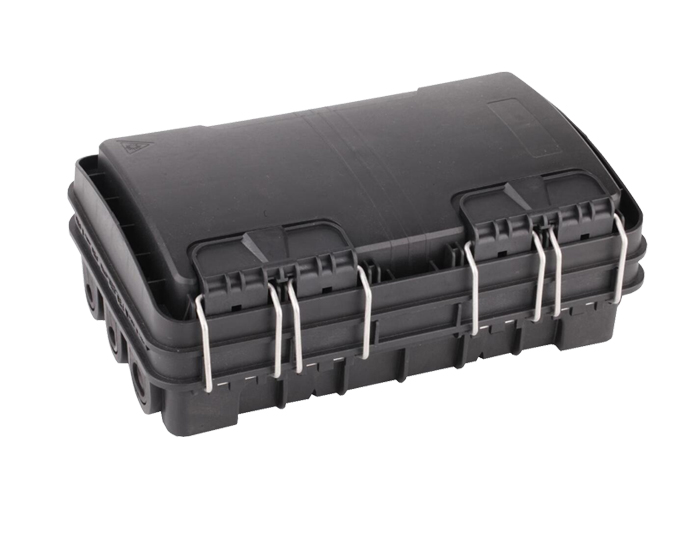

12 Core Outdoor Fiber Distribution Box - Fiber Box FDB-012A2
12 Core Outdoor Fiber Distribution Box - Fiber Box FDB-012A2

RGP-FDB-012A2 12 Core Outdoor Fibre Distribution Boxes is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, can support Cut and Uncut Fiber Cable.

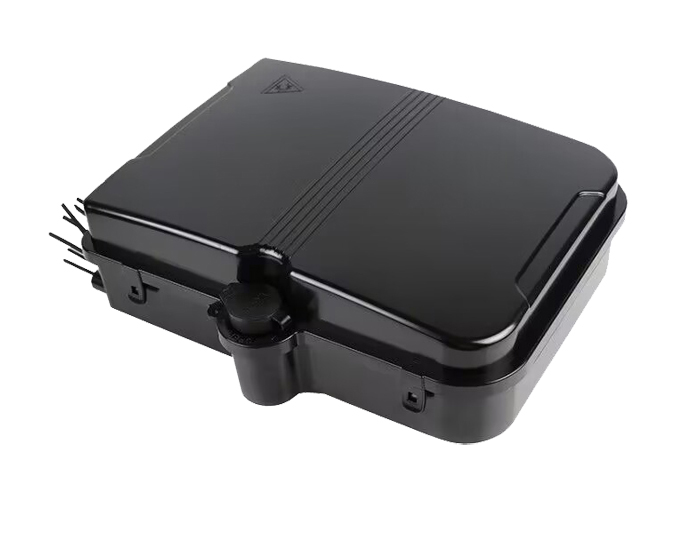

24 Core Outdoor Fiber Termination Box - Fiber Splice Box FDB-024B
24 Core Outdoor Fiber Termination Box - Fiber Splice Box FDB-024B

RGP-FDB-024B 24 Core Outdoor Fibre Optic Distribution Box called Fiber Termination Box is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures.

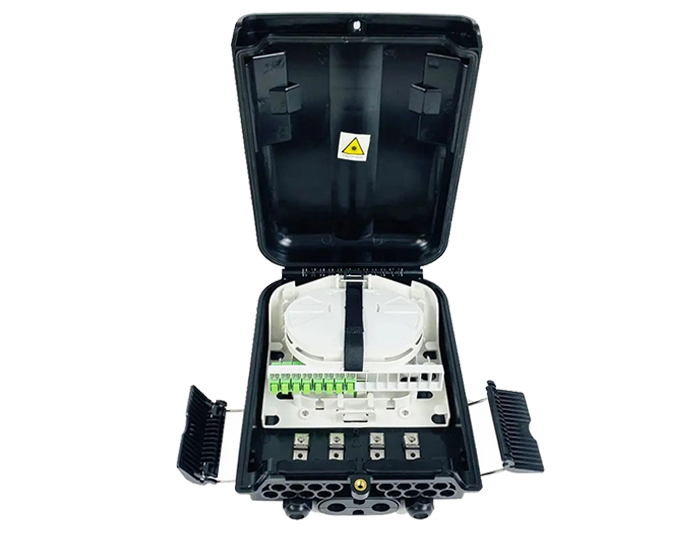

8 Core Fiber Splitter Distribution Box With LGX Splitter FDB-08J
8 Core Fiber Splitter Distribution Box With LGX Splitter FDB-08J

RGP-FDB-08J 8 Core Fiber Splitter Distribution box called Optical Splitter Box is used for connecting optical cable with various equipment in FTTX optical access network node. In FTTH application, it is applied to the second stage splitter point of the optical fiber network.

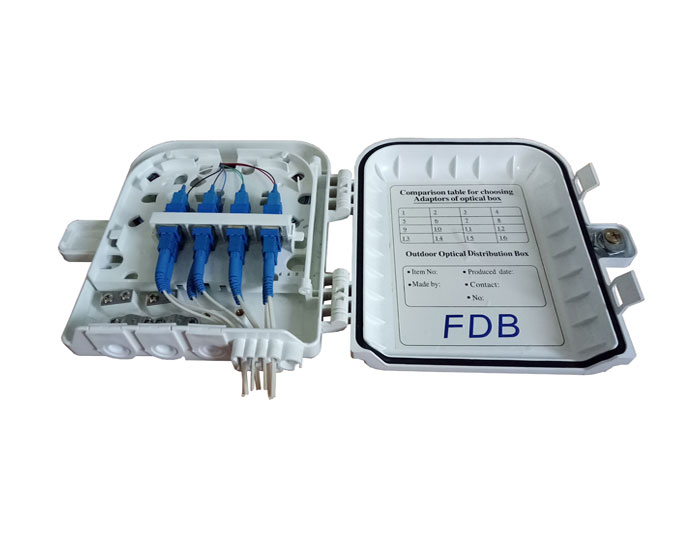

6 Port Fibre Termination Box - Fiber Optic Termination Box FDB-06B
