Description :

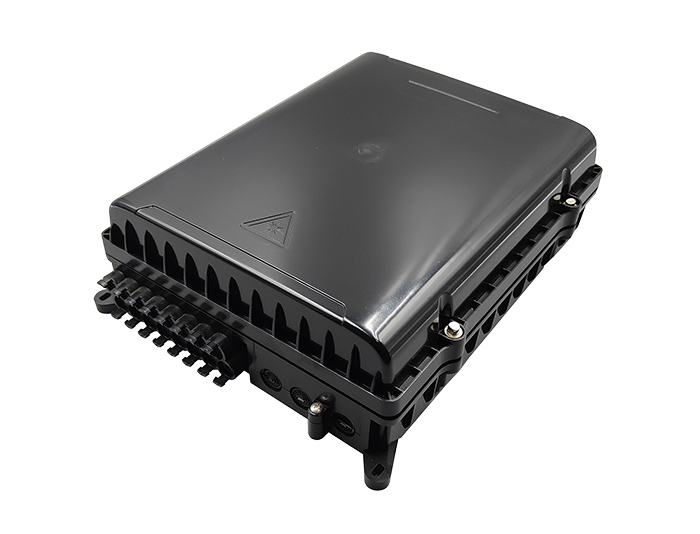

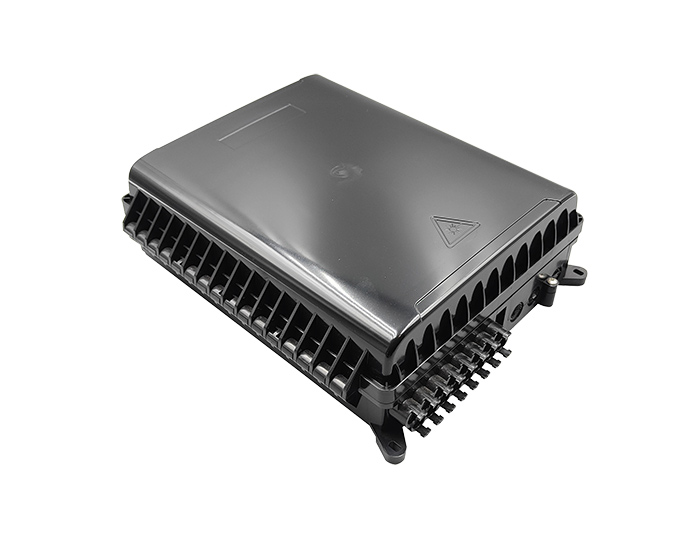

RGP-FDB-016S2 16 Core Fiber Termination Box Wall Mount is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. In FTTH application, The FTTH Distribution Box is applied to the second stage splitter point of the optical fiber network. The optical cable can be connected by fusion or mechanical jointing method after introduction into the optical fiber distribution box. The Terminal Box Fiber Optic is possible to realize cable termination, splitting and distribution function conveniently.
Feature:
Total enclosed structure.

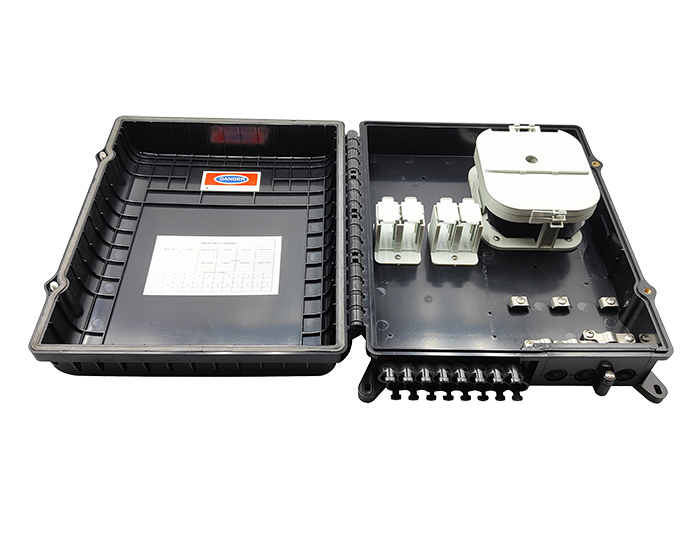

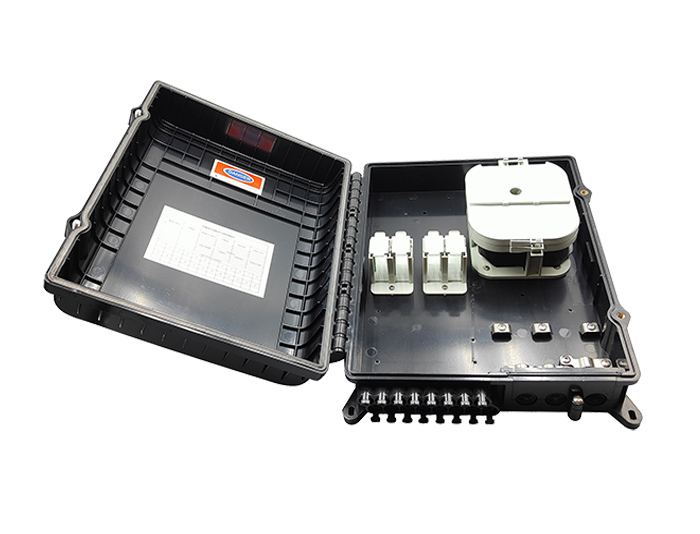

Offers spaces for splitters and up to 16 fusions.
Material: PC/ABS
Wall mountable, Pole mountable.
Cable, pigtails. patch cords are running through own path without disturbing cable other, cassette type SC/LC.PLC adaptor installation, easy maintenance.
Wet-proof、water-proof、dust-proof、anti-aging; Protection class: IP65.

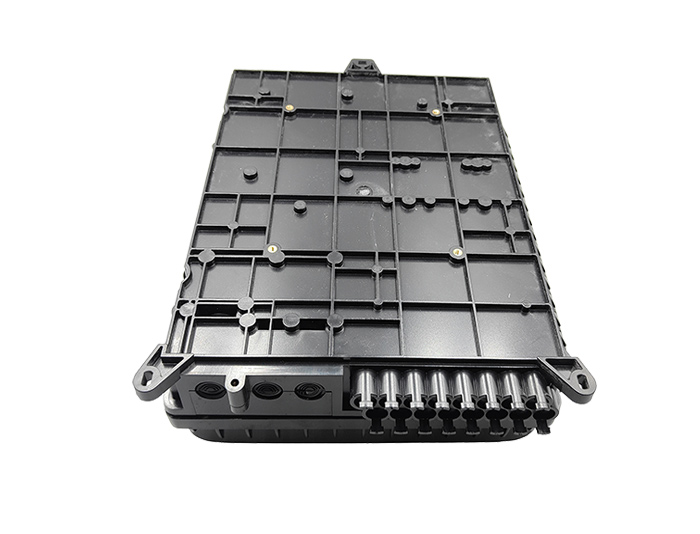

3 Inlet ports( for cables with max diameter 14 mm), 16 outlet drop cable ports for 2*3mm FTTH Drop Cable or 5mm armored cable.
Suitable for used uncut fiber optic cable.
Distribution panel can be flipped up, Feeder cable can be placed by expression port, easy for maintenance and installation.
Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.
The mark is clear on each fiber connection and distribution.
The door opening angle is greater than 180 degree for easy operation and maintenance.
The redundant fiber is wound and protected.
RoHS compliance.
Applications:
Aerial mounting & Pole mounting.
