16 Core Outdoor Fibre Distribution Terminal Box FDB-016D

Publisher: MJADOM

Author: Andy



RGP-FDB-016D Outdoor Fibre Distribution Terminal Box is designed for use in both fibre-to-the-home and fibre-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.



Description:


RGP-FDB-016D Outdoor Fibre Distribution Terminal Box is designed for use in both fibre-to-the-home and fibre-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.


The Fibre Distribution Terminal range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, and building riser. The fiber distribution hub may house fusion splices, mechanical splices, or splitters.



Feature:

Can accommodate 1x16 SC/ LC Duplex Adaptor.

Material: PC/ABS Alloy.

UV and weatherproof; Up to 16 FTTH drops.

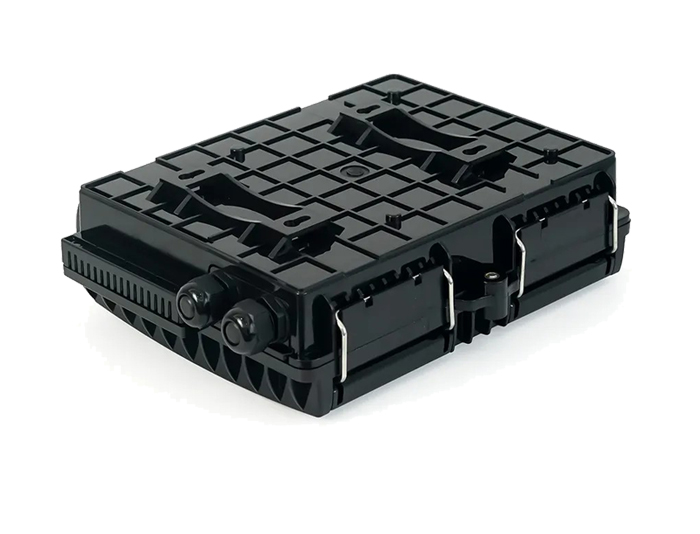

Wall and pole mountable.

2 inlet ports( for cables with max diameter 14 mm), 16 outlet drop cable ports.

Suitable for used uncut OR cut fiber optic cable.

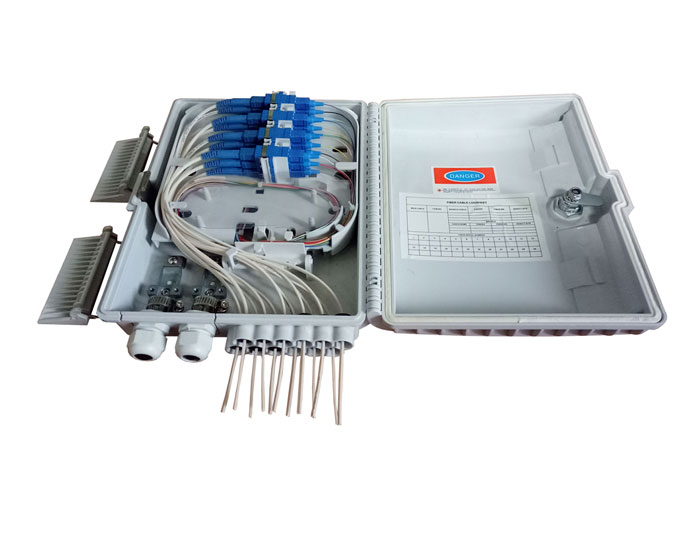

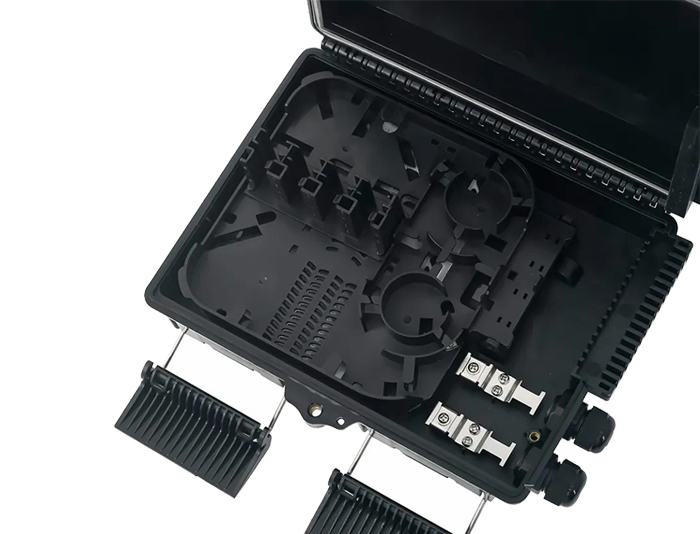

Turn-over structure and layout is reasonable with splicing zone below and distribution zone above.



Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degrees for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65.

RoHS compliance.


Application:


FTTH access network.

Telecommunication Networks.

CATV Networks.

Data communications Networks.

Local Area Networks.


Configuration

Technical Specification:


MaterialPC+ABSDimension (W*H*D)250mmx200mmx70mmMax Splicing (Core)16
IP RateIP65Weight1.2kgAdapter16 pcs of SC
Insertion loss≤0.15dBUPC return loss≥50 dBAPC return loss≥60 dB
Working temperature-40℃~+85℃Relative humidity≤85%(+30℃)Atmospheric pressure70KPa~106 KPa
Max. diameter of cable(mm)2 Inlet Port ( Cut or Uncut Port ) can support Φ8~14 mm; 16 ports for FTTH Figure8 drop cable.



Configuration:


ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
 RGP-FDB-016D

16 Splices,16 SC/LC Duplex adaptors

or 1*8 PLC Splitter

250mmx200mmx70 mm 10 PCS2 Inlet Port ( Cut or Uncut Port )+16 Drop Cable Outlet Ports 12.7 KGS410mmx360mmx260mm
