Description:
RGP-FDB-024C 24 Core Outdoor Fiber Splice Box are designed to protect joints of optical cable can hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system.

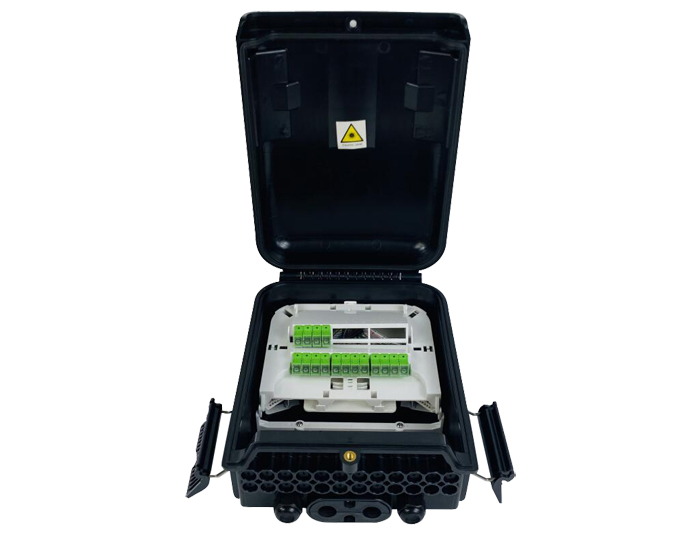

The Splice Box integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box, and meanwhile, it provides solid protection and management for the FTTx network building. The Fiber Box is widely used as a termination point for the feeder cable to connect with the drop cable.
Feature:
Fully enclosed structure.
Material: PC+ABS alloy, with anti-UV, and corrosion-resistant material.
Waterproof, dustproof, anti-aging design, IP-65 protection level for outdoors.

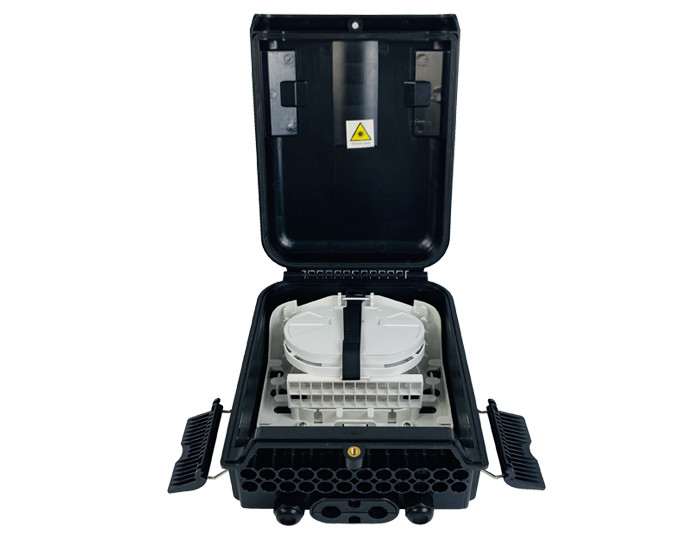

Integrated with 2x splice trays, splice tray can be flipped up, and maximum 24F splice capacity.
Fiber bend radius control more than 30mm.
Support Cut & Uncut optical fiber.
Easy installation and re-entry. No other sealing adhesive tape is needed.
Base and cover sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

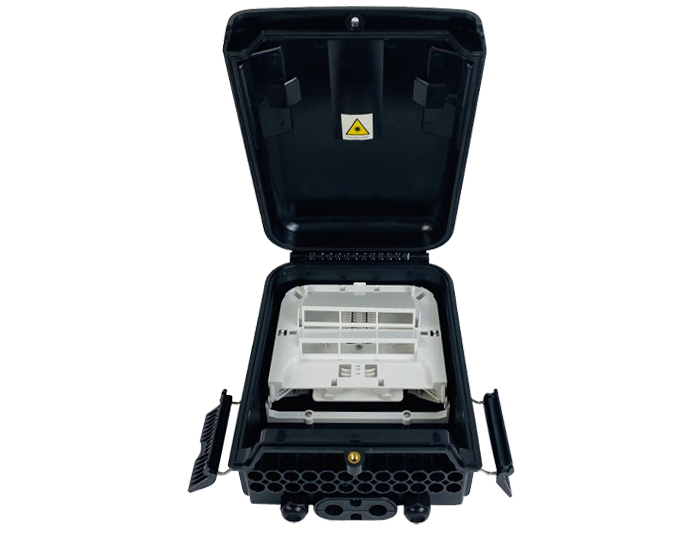

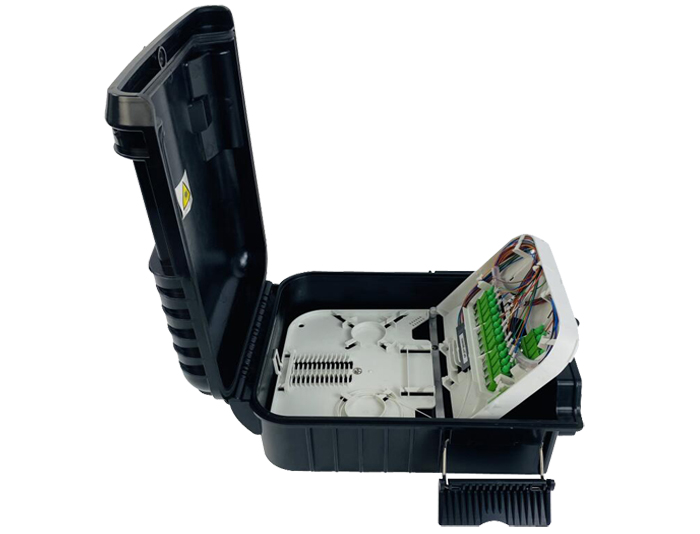

The splice trays are hinged to access any splice tray, without disturbing other trays.
The inner parts and fixing parts are made of 304 stainless steel.
With an earthing device protect it from damage by lightning.
1x8 PLC splitter can be installed in each splice tray as optional.
Cable, pigtails, and patch cords run through their own paths without disturbing each other, Easy to maintain and expansion.

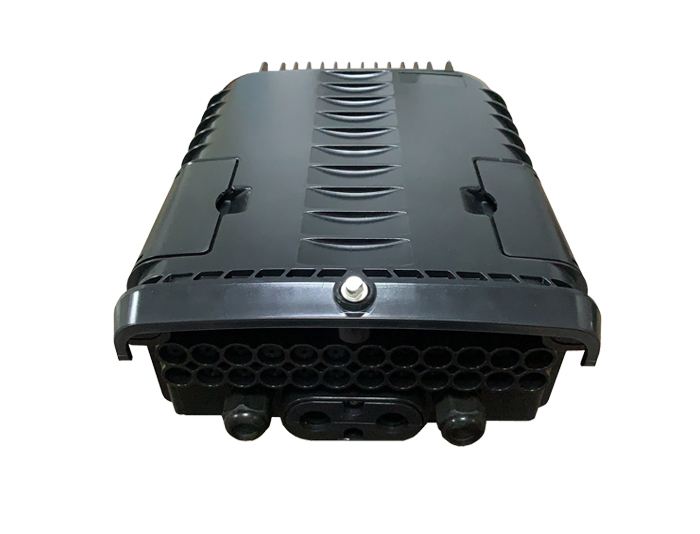

1 mid-span cable entrance(Φ8~14 mm)for uncut cable and 2 branch ports for distribution cable(Φ10~16mm),24 pcs of 2.0*3.0mm or 2.0*5.0mm FTTH Drop Cable.
RoHS compliance.
Application:
FTTH access network.
Telecommunication Networks.
CATV Networks.
Data communications Networks.
Local Area Networks.
