Outdoor Fiber Splice Enclosure with Waterproof Connector F2E-505A

Publisher: MJADOM

Author: Andy

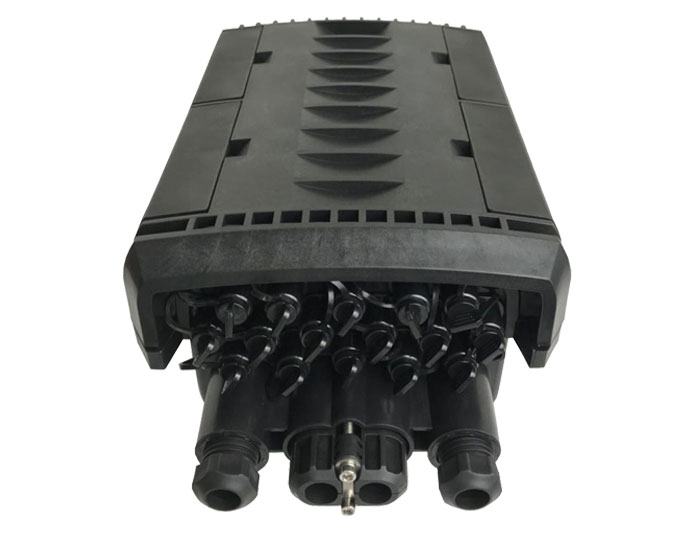

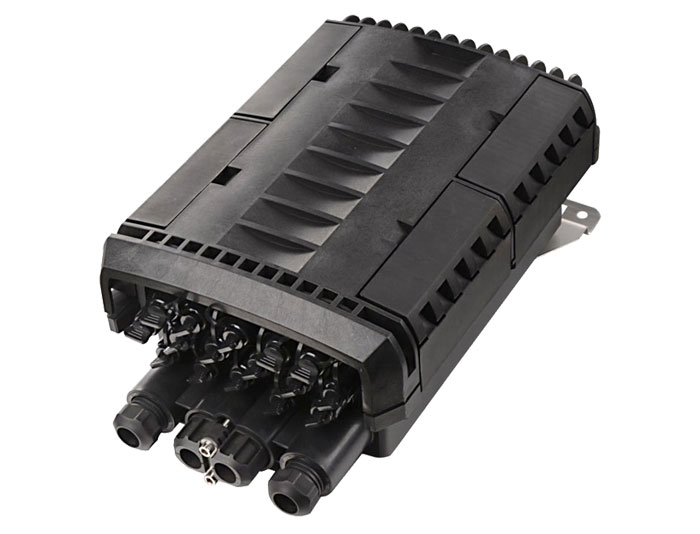

RGP-F2E-505A FTTH Drop Cable Type Fiber Optic Splice Closure provides a high density wall mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.


MJADOM offers Fiber Optic Splice Closure (Aerial / Pole Mount / Underground, Heat Shrink Sealing / Mechanical Sealing, 24-576 Fibers, LC/SC adapter, Protective Level IP68, 1x8/1x16 PLC Splitter).

Outdoor fiber splice enclosure

RGP-F2E-505A FTTH Drop Cable Type Fiber Optic Splice Closure provides a high-density wall-mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber terminations in a limited space.


It is normally installed in the way of wall mounting pole mounting. features with ruggedness, which is tested under harsh conditions and stands up to even the most severe conditions of moisture, vibration, and extreme temperatures.


The closures can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.

FTTH Splice Closure.

Closure Material: Modified P.P.

Sealing Structure: Mechanical Sealing.

Closure Seal Material: Thermoplastic rubber.

180-degree access with buckled lock structure.

Dis-mountable adaptor panel, Support mid-span termination.


Rotatable and dis-mountable splice tray for easy splicing.

Plug-and-play installation, easy for maintenance and expansion.

Integrated with flap-up splice cassette and cable management system.

Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.

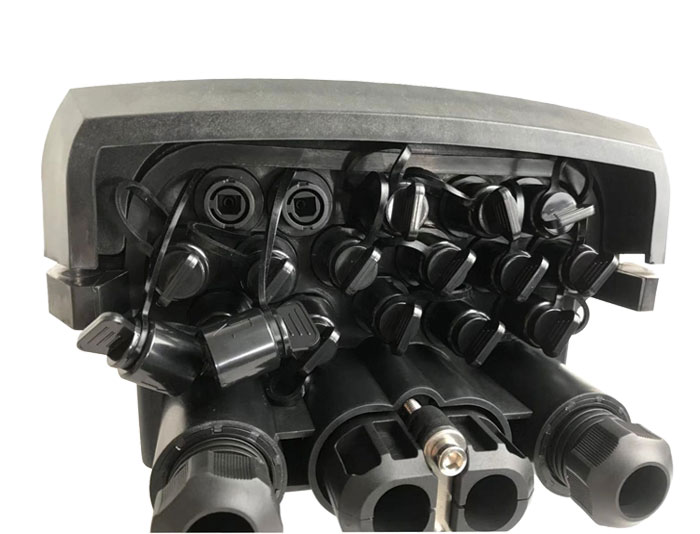

Suitabe for pre-connectorized drop cable with reinforced connector.


Impact test:1K10. Pull Force:100N. Full Rugged design.

1*8 or 1*16 PLC splitter can be installed in each splice tray as option.

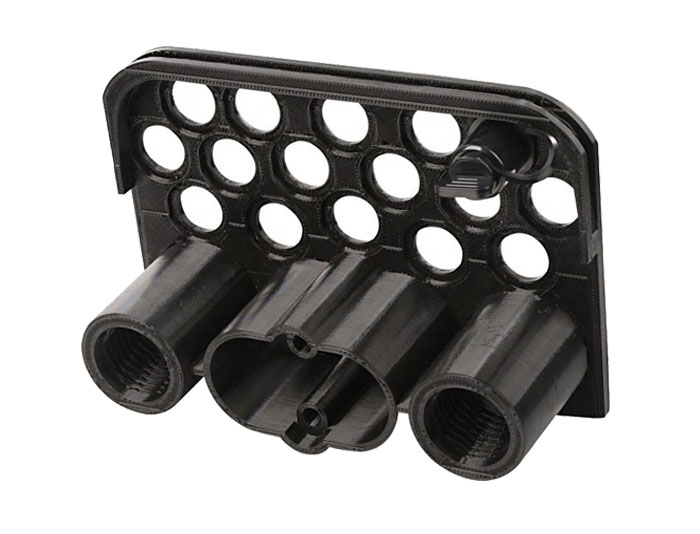

1 mid-span cable entrance(Φ10-17.5mm)for uncut cable and 6 branch ports for distribution cable(Φ10-17.5mm).

Protection level: IP68.

RoHS compliance.



Wall mounting & pole mounting installation.

Configuration

Standard Accessories:

ItemNameUsageQuantity
1Fiber Optic Splice Closrue CoverProtecting fiber cable splices in whole1 pc
2Fiber Optic Splice Closure BottomProtecting fiber cable splices in whole1 pc
3Splice cassetteTo splice the fiber opticSame as capacity
4Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
5Pre-connectorized drop cable with reinforced connectorWaterproof ConnectorSame as capacity
6Nylon TieTo fix buffer tubes with fibers insideSame as capacity
7Grounding WireTo connect with grounding device1pc
8Abrasive ClothTo polish fiber optic cable1pc
9Labelling PaperTo label fibers1 set
10Buffer TubeTo protect fibers and be fixed on splice trays1pc
11Installation bolts and nutsTo fix splice cassette1 set


Shipping Infomation

SpecificationSizePcs/CartonWeight
Internal Carton Box390mmx250mmx175mm1 pc4.6 KGS
Outside Carton Box520mmx420mmx330mm4 pcs19 KGS


Order Information:

Model No.Spliced fiber storage capacitySize(mm)L xW xH
Cable portsMax. diameter of cable(mm)Applicable Cable DiameterAdaptors
RGP-F2E-505A

96 Splices

(4x24 Splices)

385mm x245 mm x170mm

1 Uncut Port +2 Branch Ports

+16 pcs pre-connectorized

drop cable with reinforced connector.

1 uncut of port can support Φ10~17.5 mm;

2 branch ports for Φ8~17.5 mm cable.

16 Round for pre-connectorized with 2.0x3.0mm

or 2.0 x5.0mm FTTH Drop Cable

1 pc of 1x16 PLC Splitter

or 2 pcs of 1x8 PLC Splitter
