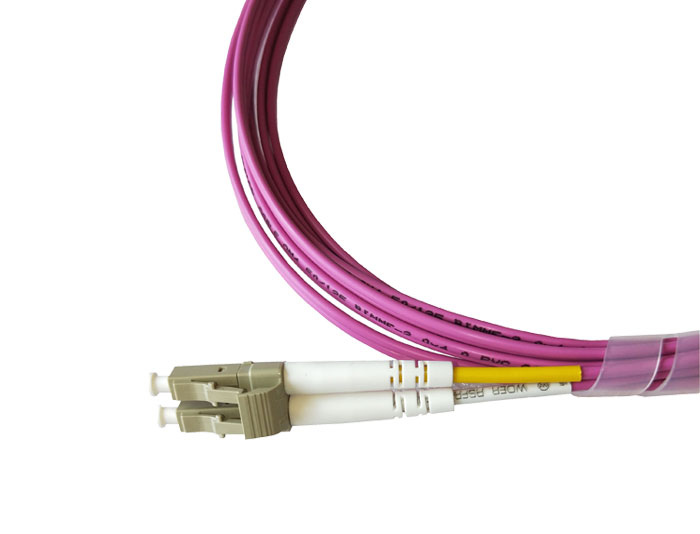

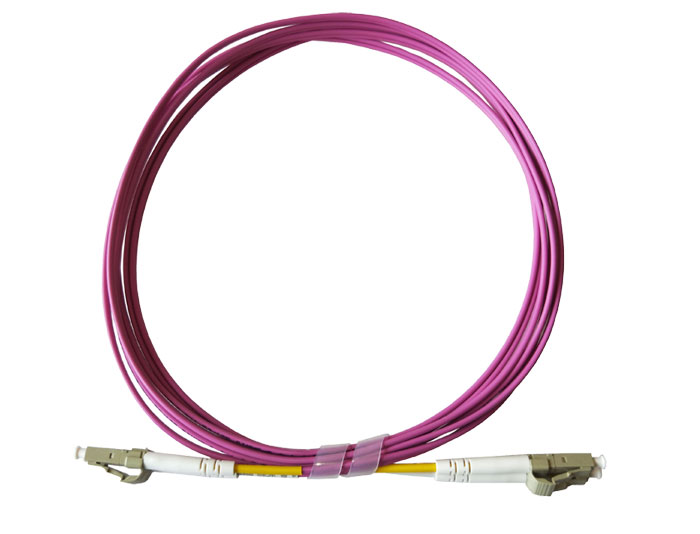

OM4 LC to LC Fiber Patch Cord, Duplex 2.0mm, Low Smoke Zero Halogen (LSZH) rated, TSB-304H

Publisher: MJADOM

Author: Andy

Fiber Patch Cord OM4 LC to LC as the MM fiber next level supporting all the existing MM applications is a wise investment option to safeguard the data center.


OM4 fiber cables and assemblies maximize cabling design flexibility for 850nm laser applications up to Gigabit/Sec, extending for each MM fiber and stretching power budgets to provide more opera points thereby maximizing the utility of the low cost and low power optical transceivers.


Fiber Patch Cord OM4 LC-LC as the Multimode fiber next level supporting all the existing Multimode applications is a wise investment option to safeguard the data center.


OM4 Multimode fiber cables and assemblies maximize cabling design flexibility for 850nm laser applications up to Gigabit/Sec, extending for each Multimode fiber and stretching power budgets to provide more opera points thereby maximizing the utility of the low cost and low power optical transceivers.


Fiber Patch Cord OM4 LC-LC duplex is accommodated per custom required, bend-insensitive OM4 fiber type is also available.


MJADOM offers multimode (OM1, OM2, OM3, OM4, OM5) and single mode (OS2) fiber types, with SC, LC, FC, ST & MPO connectors. All fiber patch cords meet ITU-T standards to make sure you get the performance you expect.

Features :

1. 100% insertion loss, return loss, end face tested, and visual inspection for contaminants.

2. Excellent mechanical endurance .

3. Standard jacket’s fire ratings OFNR (Riser), OFNP (Plenum), and LSZH (Zero halogen).

4. 900 µm, 2.0, and 3.0mm standard cable diameters

5. Various Connector Type.

6. Single mode OS2, and multimode OM1, OM2, OM3, OM4, OM5.

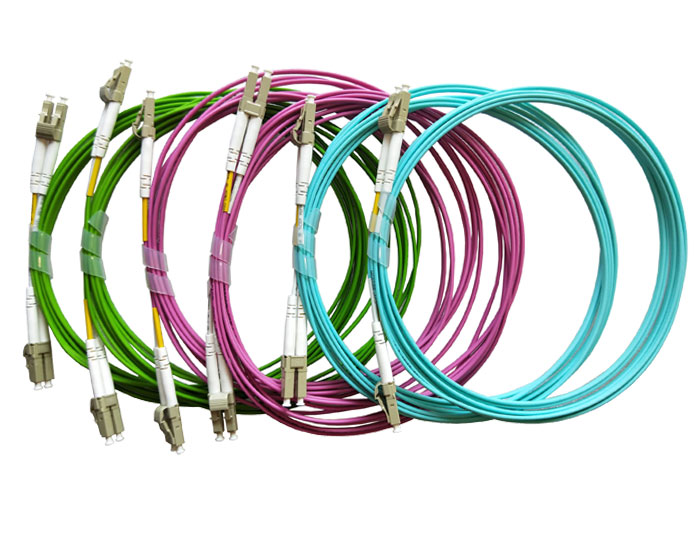

7. Jacket Color: SM Yellow / OM1 & OM2 Orange / OM3 Aqua / OM4 Aqua or Violet / OM5 Lemon Green.


Application :

1. FTTX + LAN (Local and wide area networks) .

2. Optical fiber CATV (Community access television) .

3. Local Area Networks .

4. Testing Equipment .

5. Fiber Optic Telecommunication .


Configuration

Specification:

ConnectorType SC, FC, ST, LC, MU, MTRJ, MPO, E2000.
Standard SM 9/125 ;  MM 50/125 & 62.5/125
Ultra Physical Contact (UPC)  or Angled Physical Contact (APC) Polish.
Hood For Ø 0.9 mm (0.035''), 2.0 mm (0.079''), 2.4 mm (0.095''), 3.0 mm (0.12'') fiber optic cable
Ferrule Zirconia Ceramic
Spring Staninless Steel
C-ring
Crimping ring Aluminum
Boot Kayflex
Dust cap LD PE
Coupling Device PBT
Frame PBT
Washer --

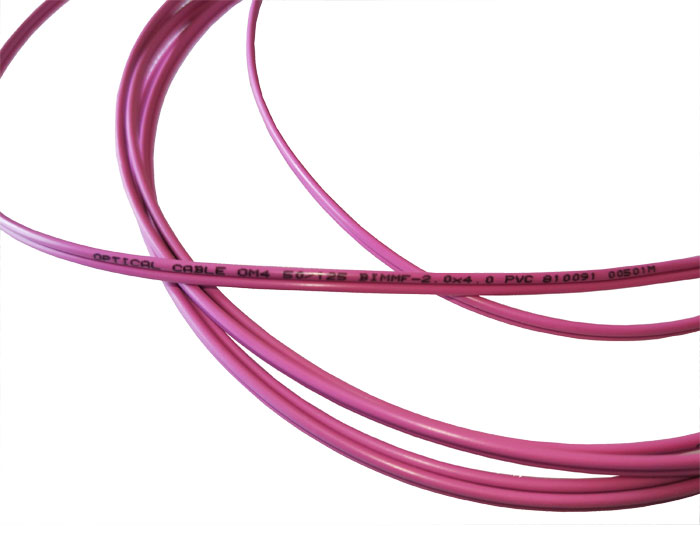

   Cable Optical Fiber: 9/125, 50/125, 62.5/125 PVC or LSZH
Endface Radius Ultra Physical Contact (UPC): 10mm<R<25mm (0.39''< R < 0.98'')
Angled Physical Contact (APC): 5mm<R<12mm (0.2''< R < 0.47'')
Apex Offset <50um (0.002'')


Complied Standards:

Meet standards: Telcodia GR-326-CORE Issue 4, IEC 61754 series, YD/T 1272 series, etc.

ItemUnitFC, SC, LC,STMTRJE2000
SMMMSMMMSMMM
PCUPCAPCPCPCUPCPCPCUPC
Insertion Loss ( typical)dB≤ 0.2≤ 0.2≤ 0.2≤ 0.2≤ 0.2≤ 0.2≤ 0.2≤ 0.2≤ 0.2
Return LossdB≥ 45≥ 55≥ 60≥ 35≥ 45≥ 50≥ 35≥ 55≥ 75
Operating wavelengthnm1310, 15101310,15101310,15101310,1510
ExchangeabilitydB≤ 0.2≤ 0.2≤ 0.2≤ 0.2
VibrationdB≤ 0.2≤ 0.2≤ 0.2≤ 0.2
Operating temperature-45 ~ +75-45 ~ +75-45 ~ +75-45 ~ +75
Storage temperature-45 ~ +85-45 ~ +85-45 ~ +85-45 ~ +85
Cable diametermmΦ3.0 ,  Φ2.0,  Φ0.9Φ3.0 , Φ2.0, Φ0.9Φ3.0 ,  Φ2.0,  Φ0.9Φ3.0 , Φ2.0, Φ0.9
Cable type                                 PVC; LSZH; OM3;OM4; OM5; OFNR; OFNP; Plenum ; Armored


Order Information :

Patch Cord LC/UPC-LC /UPC-OM5-DX-Φ2.0-2M-LSZH

                    ①                ②     ③      ④    ⑤     ⑥    ⑦

① Connect Type: FC ; SC ; LC ; ST ; MTRJ ; MU ; E2000 ; MPO ; DIN ; D4 ; SMA .

② Ferrule End-Face: PC ; UPC ; APC .

③ SM: 9/125 µm (G.652.D,G.655, G.657.A+B); MM: 62.5/125 µm OM1; 50/125 µm OM2; 50/125 µm OM3 ;

           50/125 µm OM4 ; 50/125 µm OM5

④ Cable quantity: "DX" means Duplex . "SX" means Simplex .

⑤ Cable diameter: Φ3.0 mm ; Φ2.0 mm ; Φ0.9 mm.

⑥ Cable Length: 1 , 2 , 3 , 5 , 10 meters etc.

⑦ Cable type: PVC ; LSZH ; OM3 ; OM4 ; OM5; OFNR ; OFNP ; Plenum ; Armored.
