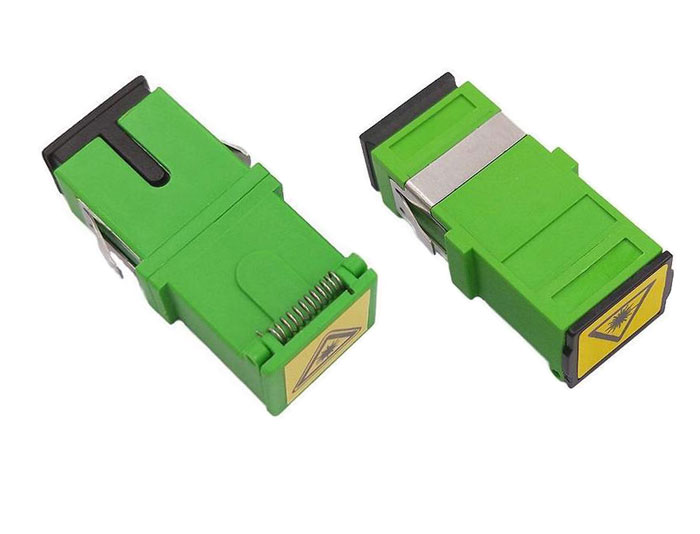

SC Shutter Avoid Laser Fiber Adapter Without Flange OFA-102B9

Publisher: MJADOM

Author: Andy

OFA-102B9 SC Shutter Avoid Laser Fiber Adapter is the new design model can avoid the laser, 0.2dB insertion loss. Laser protection. Buy SC, LC, FC, ST, E2000, MTRJ and MPO, Simplex & Duplex and Quad, OM3 & OM4 fiber optic adapter types Fiber Adapter from reliable fiber optic supplier-MJADOM.Com

OFA-102B9 SC Shutter Avoid Laser Fiber Adapter is the new design model can avoid the laser, 0.2dB insertion loss. Laser protection. Buy SC, LC, FC, ST, E2000, MTRJ and MPO, Simplex & Duplex and Quad, OM3 & OM4 fiber optic adapter types Fiber Adapter from reliable fiber optic supplier-MJADOM.Com

Features:

Double the capacity, perfect space-saving solution.

Small size, large capacity.

Bayonet structure, convenient for installation.

High return loss, Low insertion loss.

Three types of fiber stub: PC/ UPC/ APC.

Simples, Duplex, Quadruple.

Push-and-pull structure, convenient for operation.

Split zirconia (ceramic) ferrule is adopted.

Used to mate two connectors together.

Usually mounted in a distribution panel or wall box.

The adapters are color-coded allowing easy identification of the adapter type.

Available with simplex & duplex patch cords and pigtails.


Application:

1. FTTX + LAN (Local and wide area networks).

2. Optical fiber CATV (Community access television).

3. Local Area Networks.

4. Testing Equipment.

5. Fiber Optic Telecommunication.


Configuration

Specification:

ParameterUnitFC,SC,LC,ST,SC-ST,FC-ST, FC-SC,FC-LC,FC-MUMTRJE2000
SMMMSMMMSM
PCUPCAPCPCPCUPCPCPCAPC
Insertion Loss (Typical)dB≤0.3≤0.2≤0.3≤0.2≤0.3≤0.2≤0.2≤0.2≤0.3
Return LossdB≥45≥50≥60≥30≥45≥50≥35≥55≥75
ExchangeabilitydB≤0.2≤0.2≤0.2
RepeatabilitydB≤0.2≤0.2≤0.2
DurabilityTimes>1000>1000>1000
Operating Temperature°C-45 ~ +75-45 ~ +75-45 ~ +75
Storage Temperature°C-45 ~ +85-45 ~ +85-45 ~ +85


Complied Standards:

Meet standards: Telcodia GR-326-CORE Issue 4, IEC 61754 series, YD/T 1272 series, etc.


Related Products

SC to ST Fiber Patch Cord OS2 Single Mode Fiber Simplex 3.0mm LSZH TSB-303A
SC to ST Fiber Patch Cord OS2 Single Mode Fiber Simplex 3.0mm LSZH TSB-303A

TSB-303A Fiber Optic Patch Cords, OS2 Single Mode Fiber, Low Smoke Zero Halogen (LSZH) rated, It's the ideal medium to interconnect or cross-connect optical networks within a structured cabling system and test & measurement applications.

LC to LC Fiber Patch Cord OS2 Single Mode Fiber Simplex 3.0mm, Low Smoke Zero Halogen (LSZH) rated TSB-304A
LC to LC Fiber Patch Cord OS2 Single Mode Fiber Simplex 3.0mm, Low Smoke Zero Halogen (LSZH) rated TSB-304A

MJADOM offers TSB-304A LC to LC Fiber Patch Cord OS2 Single Mode Fiber Simplex 3.0mm, LSZH. It's the fiber of 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

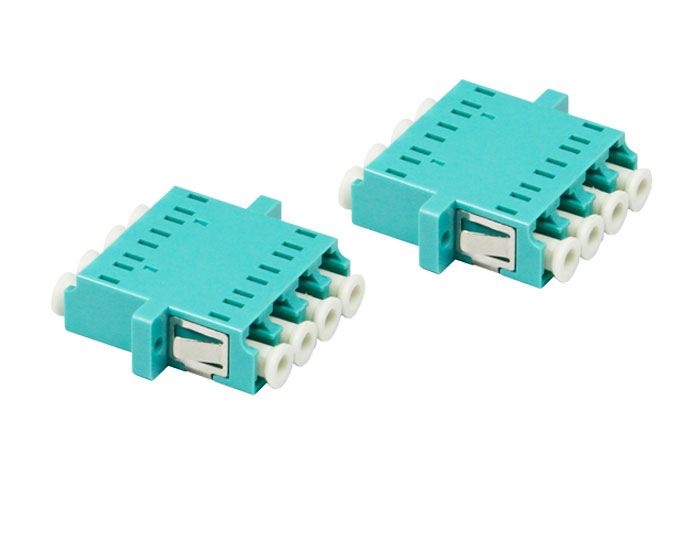

LC QUAD Adapter With Flange, LC UPC Fiber Optic Couplers OFA-104H
