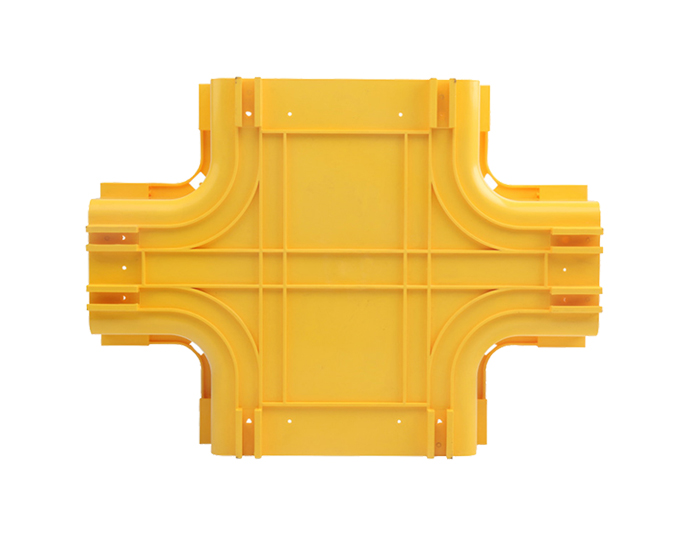

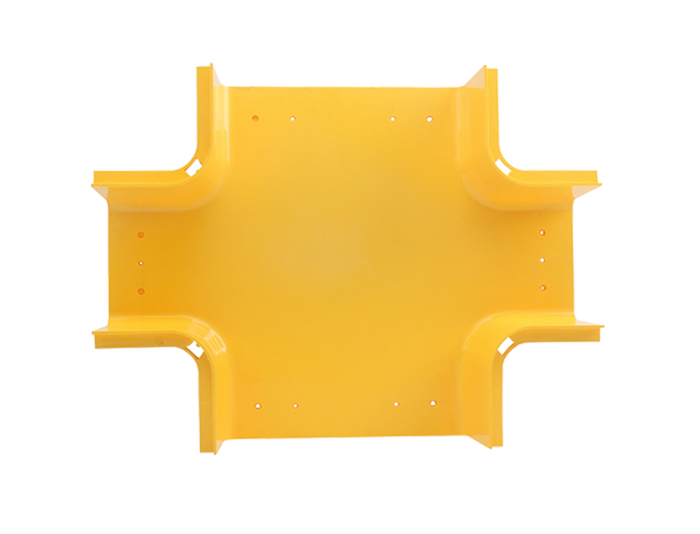

Fiber Raceway Horizontal Cross Tee Cable Tray PVC with Cover Yellow FSQ-102

Publisher: MJADOM

Author: Andy

RGP-FSQ-102 Horizontal Cross Tee is made of two kinds of materials, ABS is environment friendly and high-class, PVC is the cheap version for the tight budget project. Fiber Raceway System also called Fiber Optic Raceway System or Fiber Runner or Fiber Routing, It's designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers.

RGP-FSQ-102 Horizontal Cross Tee Fiber Raceway System also called Fiber Optic Raceway System or Fiber Runner or Fiber Routing, It's designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers.


Fiber Raceway system support the system offers ideal solutions for optical raceway requirements and application with pleasing appearance and easy maintenance.


Maintaining proper fiber cable bend radius control at all points.

Providing fiber cable physical protection from external elements.

Enabling easy access to fiber cables.

Providing necessary fiber cable slack management.

Properly defining routing paths throughout the data center.

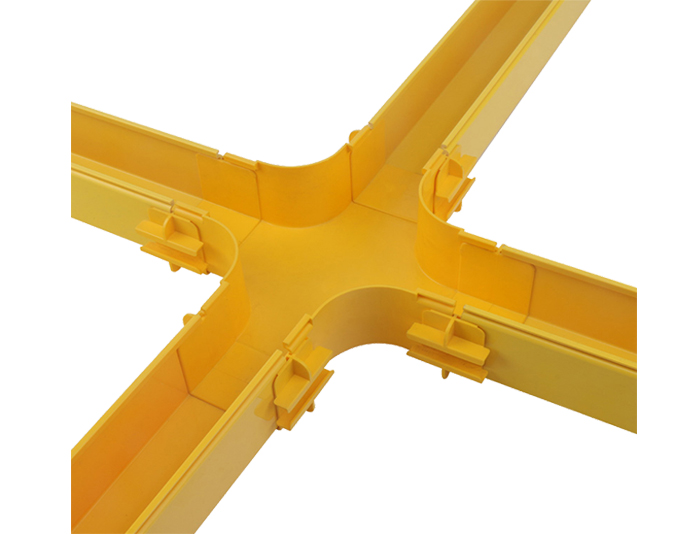

Fiber Raceway system offers horizontal cross tees that can attach to 4"x15", 4"x10", 4"x5", or 2.36"x2.36" channel and/or fittings to create a horizontal four way cross intersection with two 4"x15", 4"x10", 4"x5", or 2.36"x2.36" exits, respectively.  All components are environment friendly and high-class plastic, ROHS compliant, and UL94-V0 level of flammability.


MJADOM offers a full range of Fiber Raceway System / Fiber Runner / Fiber Routing, including the Straight Section, Junction, Horizontal Tee, Cutting in Tee, 90°Elbow, 45°Up Elbow, 45°Down Elbow, Conversion, Downspout, End Cup and Support. Buy High-Performance Fiber Optic Raceway from a reliable Fiber optic supplier - MJADOM.COM.




Feature:

Easy and Quick Tool-less assembly.

PVC/ABS, all plastic parts reach UL94-V0 level of flammability.

RoHS compliant.

Withstanding Voltage: AC500V /DC1000V.

Insulation Resistance ≥ 20 MΩ.

Installation Temperature : -25°~ +60℃.



Application:
Data Centers & Central Office.
Service Providers.
Cellular tower base station.

Configuration

Specification:

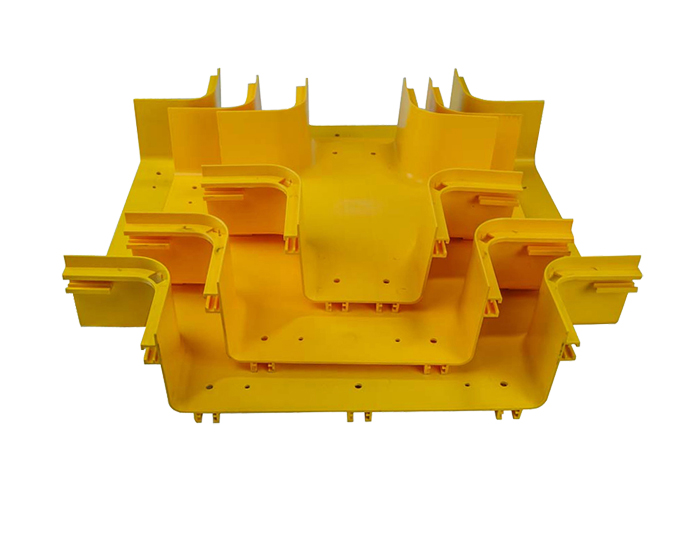

Horizontal Cross Tees Size2.36" x 2.36”4" x 5”4" x 10”4" x 15”
 HeightWidthHeightWidthHeightWidthHeightWidthHeight
2.36Inch (60mm)2.36Inch (60mm)5Inch (120mm)4Inch (100mm)10Inch (240mm)4Inch (100mm)15Inch (360mm)4Inch (100mm)

 Order Information:

Model No.Product Description
RGP-FSQ-102AFiber Raceway Horizontal Cross Tees 4" x 15" PVC 2M Length with Cover Yellow
RGP-FSQ-102BFiber Raceway Horizontal Cross Tees 4"x 10" PVC 2M Length with Cover Yellow
RGP-FSQ-102CFiber Raceway Horizontal Cross Tees 4" x 5" PVC 2M Length with Cover Yellow
RGP-FSQ-102DFiber Raceway Horizontal Cross Tees 2.36" x 2.36" PVC 2M Length with Cover Yellow

Related Products

Fibre Raceway Adaptor PVC-Fiber Cable Routing Systems FSQ-202
Fibre Raceway Adaptor PVC-Fiber Cable Routing Systems FSQ-202

MJADOM offers adapter fittings that attach to any 4"x15", fitting or channel to connect with any 4"x10" fitting or channel, or any 4"x10" to connect to any 4"x5" fitting or channel.

Fiber Raceway Ladder Rack Support Kit-Fiber Management Systems FSQ-108
Fiber Raceway Ladder Rack Support Kit-Fiber Management Systems FSQ-108

MJADOM offers L-shape hanger kits (Ladder Rack Support Kit) that are used to support the 4" x 5" or 4" x 10" system by spanning two existing threaded rod drops.

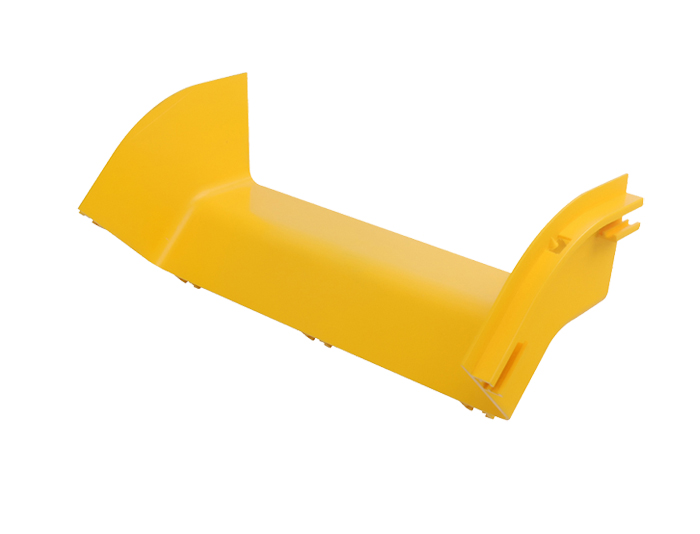

Fiber Routing Up 45°C Elbow PVC with Cover Yellow FSQ-109
