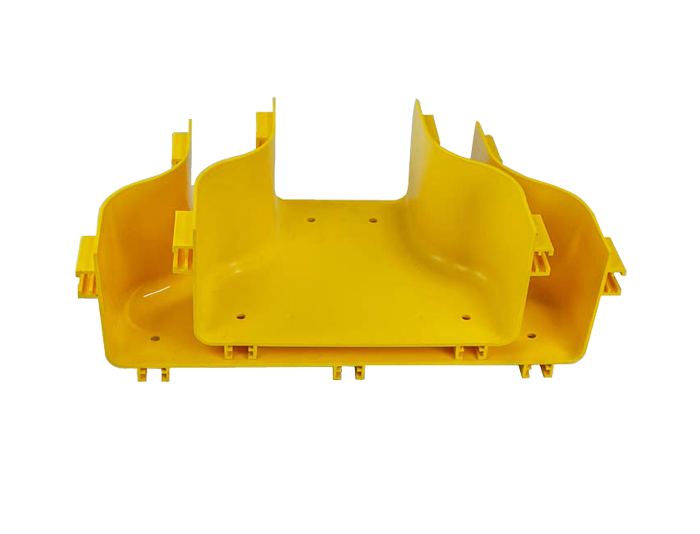

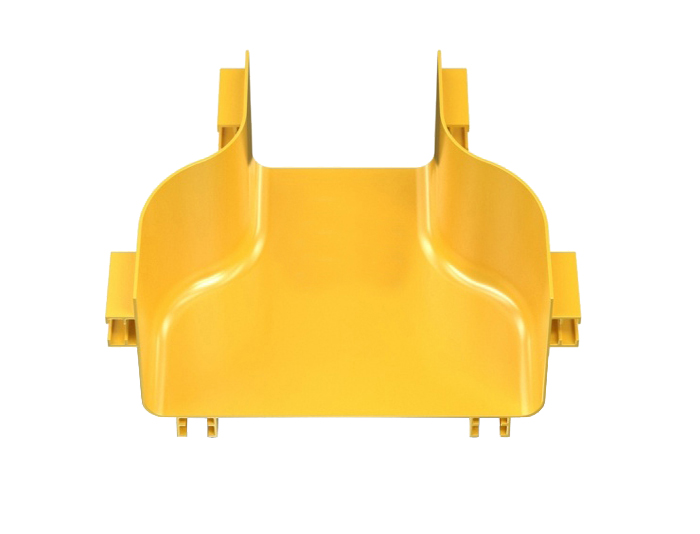

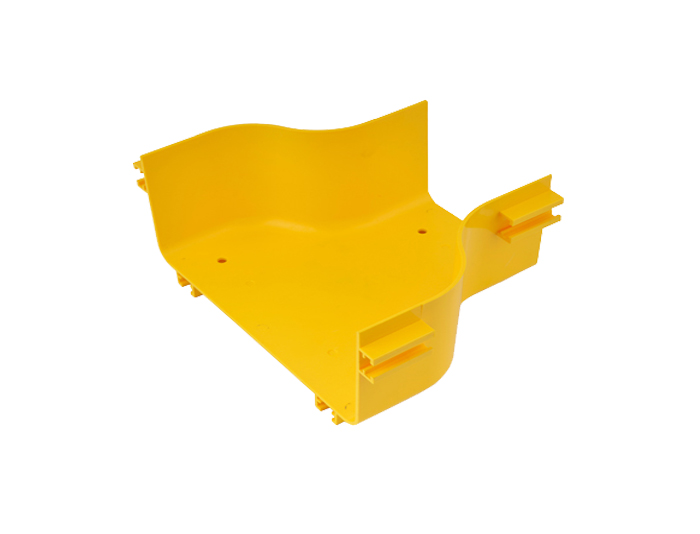

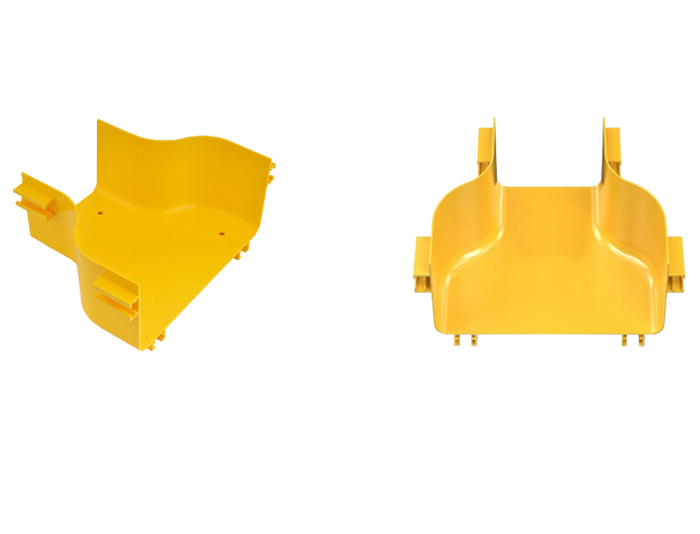

Fibre Raceway Adaptor PVC-Fiber Cable Routing Systems FSQ-202

Publisher: MJADOM

Author: Andy

RGP-FSQ-202 MJADOM offers Fiber Cable Routing System consists of channels, fittings, and brackets designed to segregate, route, and protect fiber optic cable.


MJADOM offers adapter fittings that attach to any 4"x15", fitting or channel to connect with any 4"x10" fitting or channel, or any 4"x10" to connect to any 4"x5" fitting or channel. The fiber raceway system also offers adapter fittings that attach to any 4"x5", fitting or channel to connect 4"x4" fitting or channel, or  4"x 6" fitting or channel.

RGP-FSQ-202  Fiber Raceway System also called Fiber Management System or Fiber Runner or Fiber Routing It's designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers.



Fiber Raceway system support system offers ideal solutions for optical raceway requirements and application with pleasing appearance and easy maintenance.



Maintaining proper fiber cable bend radius control at all points.

Providing fiber cable physical protection from external elements.

Enabling easy access to fiber cables.

Providing necessary fiber cable slack management.

Properly defining routing paths throughout the data center.


Fiber raceway system offers adapter fittings that attach to any 4"x15", fitting or channel to connect with any 4"x10" fitting or channel, or any 4"x10" to connect to any 4"x5" fitting or channel. Fiber raceway system also offers adapter fittings that attach to any 4"x5", fitting or channel to connect 4"x4" fitting or channel, or  4"x 6" fitting or channel. All components are environment friendly and high-class plastic, ROHS compliant, and UL94-V0 level of flammability.


MJADOM offers a full range of Fiber Raceway System / Fiber Runner / Fiber Routing, including the Straight Section, Junction, Horizontal Tee, Cutting in Tee, 90°Elbow, 45°Up Elbow, 45°Down Elbow, Conversion, Downspout, End Cup and Support. Buy High-Performance Fiber Optic Raceway from a reliable Fiber optic supplier - MJADOM.COM.



Feature:

Easy and Quick Tool-less assembly.

PVC/ABS, all plastic parts reach UL94-V0 level of flammability.

RoHS compliant.

Withstanding Voltage: AC500V /DC1000V.

Insulation Resistance ≥ 20 MΩ.

Installation Temperature : -25°~ +60℃.

Application:
Data Centers & Central Office.
Service Providers.
Cellular tower base station.

Configuration

Specification:

Fibre Raceway Adaptor Size4" x 10”4" x 15”
 HeightWidthHeightWidthHeight
10Inch (240mm)4Inch (100mm)15Inch (360mm)4Inch (100mm)


Order Information:

Model No.Product Description
RGP-FSQ-202AFibre Raceway Adaptor 360mm to 240mm x 100mm PVC with Cover Yellow
RGP-FSQ-202BFibre Raceway Adaptor 240mm to 120mm x 100mm PVC with Cover Yellow
