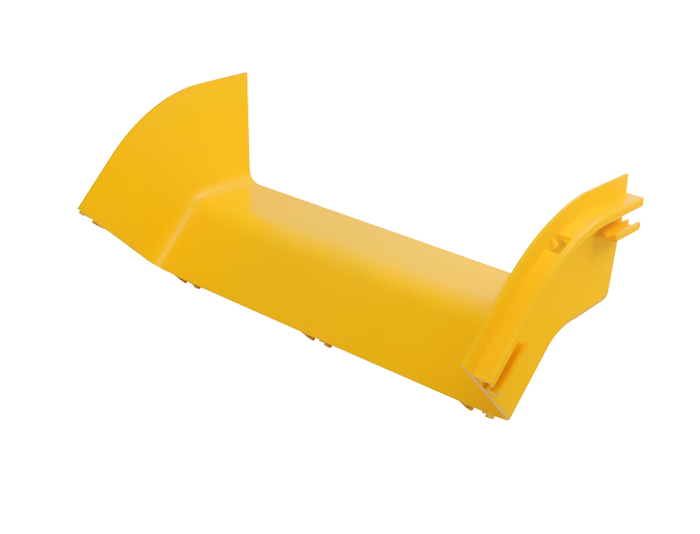

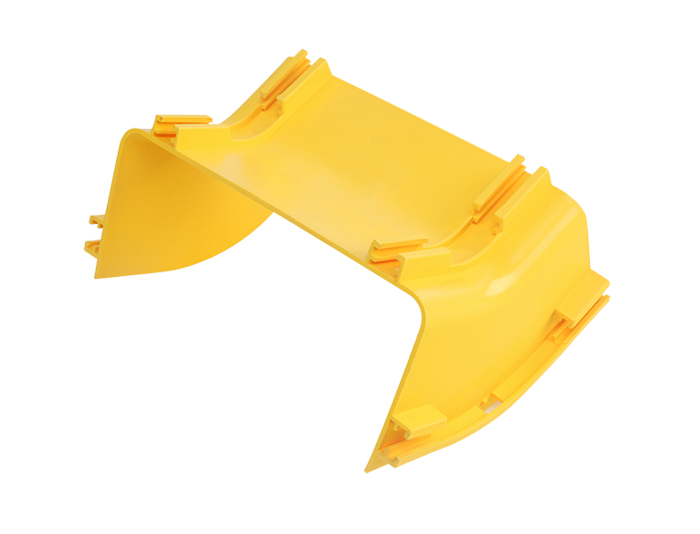

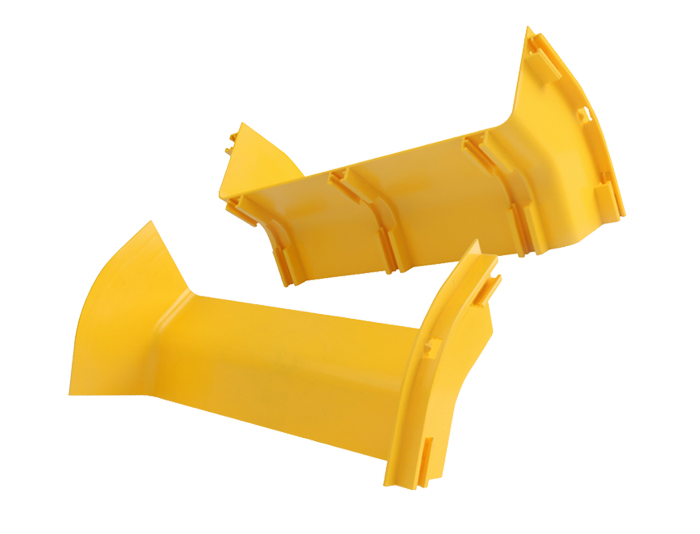

Fiber Optic Raceway System Down 45°C Elbow PVC with Cover Yellow FSQ-201

Publisher: MJADOM

Author: Andy

RGP-FSQ-201  MJADOM offers 45° Down ElbowFiber Optic Raceway System fittings that attach to 4"x15", 4"x10", 4"x5", or 2.36"x2.36" channel and/or fitting to create a 45° downward angle from a straight horizontal run.


Fiber Raceway System is designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers.

RGP-FSQ-201  Fiber Raceway System also called Fiber Management System or Fiber Runner or Fiber Routing, It's designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers.


Fiber Raceway system support system offers ideal solutions for optical raceway requirements and application with pleasing appearance and easy maintenance.


Maintaining proper fiber cable bend radius control at all points.

Providing fiber cable physical protection from external elements.

Enabling easy access to fiber cables.

Providing necessary fiber cable slack management.

Properly defining routing paths throughout the data center.


The fiber raceway system offers 45° Down Elbow fittings that attach to 4"x15", 4"x10", 4"x5", or 2.36"x2.36" channel and/or fitting to create a 45° downward angle from a straight horizontal run. Used with 45° up elbow fittings to change the level of a horizontal run.  All components are environment friendly and high-class plastic, ROHS compliant, and UL94-V0 level of flammability.


MJADOM offers a full range of Fiber Raceway System / Fiber Runner / Fiber Routing, including the Straight Section, Junction, Horizontal Tee, Cutting in Tee, 90°Elbow, 45°Up Elbow, 45°Down Elbow, Conversion, Downspout, End Cup and Support. Buy High-Performance Fiber Optic Raceway from a reliable Fiber optic supplier - MJADOM.COM.



Feature:

Easy and Quick Tool-less assembly.

PVC/ABS, all plastic parts reach UL94-V0 level of flammability.

RoHS compliant.

Withstanding Voltage: AC500V /DC1000V.

Insulation Resistance ≥ 20 MΩ.

Installation Temperature : -25°~ +60℃.


Application:
Data Centers & Central Office.
Service Providers.
Cellular tower base station.

Configuration

Specification:

Down 45°C Elbow Size2.36" x 2.36”4" x 5”4" x 10”4" x 15”
 HeightWidthHeightWidthHeightWidthHeightWidthHeight
2.36Inch (60mm)2.36Inch (60mm)5Inch (120mm)4Inch (100mm)10Inch (240mm)4Inch (100mm)15Inch (360mm)4Inch (100mm)


Order Information:

Model No.Product Description
RGP-FSQ-109AFiber Raceway Down 45°C Elbow 4" x 15”PVC with Cover Yellow
RGP-FSQ-109BFiber Raceway Down 45°C Elbow 4" x 10”PVC with Cover Yellow
RGP-FSQ-109CFiber Raceway Down 45°C Elbow 4" x 5”PVC with Cover Yellow
RGP-FSQ-109DFiber Raceway Down 45°C Elbow 2.36" x 2.36”PVC with Cover Yellow
