Fiber Raceway Junctions PVC Yellow FSQ-104

Publisher: MJADOM

Author: Andy

RGP-FSQ-104  Fiber Optic Raceway (couplers) to quickly join two sections of channel and/or fittings - one can easily tighten and release bolts by hand, absolutely toolless It's is designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers.

RGP-FSQ-104  Fiber Raceway System also called Fiber Optic Raceway System or Fiber Runner or Fiber Routing, It's designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers.



Fiber Raceway system support system offers ideal solutions for optical raceway requirements and application with pleasing appearance and easy maintenance.



Maintaining proper fiber cable bend radius control at all points.

Providing fiber cable physical protection from external elements.

Enabling easy access to fiber cables.

Providing necessary fiber cable slack management.

Properly defining routing paths throughout the data center.

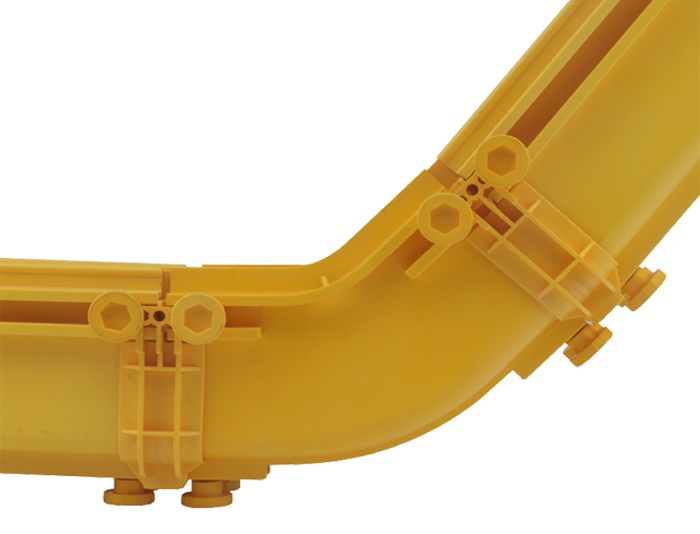

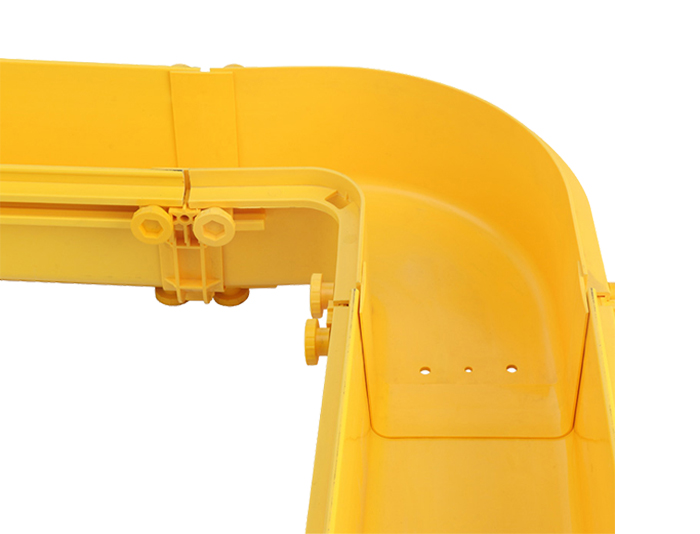

The fiber raceway system offers junctions (couplers) to quickly join two sections of channel and/or fittings - one can easily tighten and release bolts by hand, absolutely toolless. Junctions (couplers) are available in 360mm, 240mm, 120mm, and 60mm fittings. All components are environment friendly and high-class plastic, ROHS compliant, and UL94-V0 level of flammability.


MJADOM offers a full range of Fiber Raceway System / Fiber Runner / Fiber Routing, including the Straight Section, Junction, Horizontal Tee, Cutting in Tee, 90°Elbow, 45°Up Elbow, 45°Down Elbow, Conversion, Downspout, End Cup and Support. Buy High-Performance Fiber Optic Raceway from a reliable Fiber optic supplier - MJADOM.COM.



Feature:

Easy and Quick Tool-less assembly.

PVC/ABS, all plastic parts reach UL94-V0 level of flammability.

RoHS compliant.

Withstanding Voltage: AC500V /DC1000V.

Insulation Resistance ≥ 20 MΩ.

Installation Temperature : -25°~ +60℃.

Application:
Data Centers & Central Office.
Service Providers.
Cellular tower base station.

Configuration

Specification:

Junctions (couplers) Size2.36" x 2.36”4" x 5”4" x 10”4" x 15”
 HeightWidthHeightWidthHeightWidthHeightWidthHeight
2.36Inch (60mm)2.36Inch (60mm)5Inch (120mm)4Inch (100mm)10Inch (240mm)4Inch (100mm)15Inch (360mm)4Inch (100mm)

 Order Information:

Model No.Product Description
RGP-FSQ-104AFiber Raceway Junctions (couplers) 4" x 15” PVC Yellow
RGP-FSQ-104BFiber Raceway Junctions (couplers) 4" x 10” PVC Yellow
RGP-FSQ-104CFiber Raceway Junctions (couplers) 4" x 5” PVC Yellow
RGP-FSQ-104DFiber Raceway Junctions (couplers) 2.36" x 2.36” PVC Yellow

Related Products

Fiber Routing Up 45°C Elbow PVC with Cover Yellow FSQ-109
Fiber Routing Up 45°C Elbow PVC with Cover Yellow FSQ-109

MJADOM offers Fiber Routing 45° Up Elbows that attach to 4"x15", 4"x10", 4"x5", or 2.36"x2.36" channel and/or fitting to create a 45° upward angle from a straight horizontal run.

Fiber Optic Raceway System Down 45°C Elbow PVC with Cover Yellow FSQ-201
Fiber Optic Raceway System Down 45°C Elbow PVC with Cover Yellow FSQ-201

MJADOM offers 45° Down Elbow fittings that attach to 4"x15", 4"x10", 4"x5", or 2.36"x2.36" channel and/or fitting to create a 45° downward angle from a straight horizontal run.

4x5 Straight Section Fiber Raceway System FSQ-101
4x5 Straight Section Fiber Raceway System FSQ-101

Fiber Raceway system is designed to protect, manage, and route fiber optic cable assemblies and patch cords to and from network cabinets, optical distribution frames (ODFs), and other terminal devices within data centers.

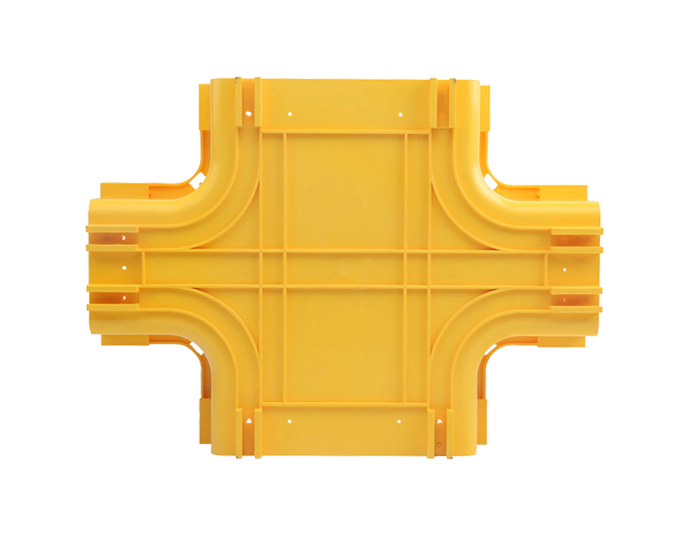

Fiber Raceway Horizontal Cross Tee Cable Tray PVC with Cover Yellow FSQ-102
